3. Exhaust Ductwork

NOTE: A transition piece for the exhaust is shipped inside the basket (tumbler). This transition piece is

for locations with round exhaust ductwork.

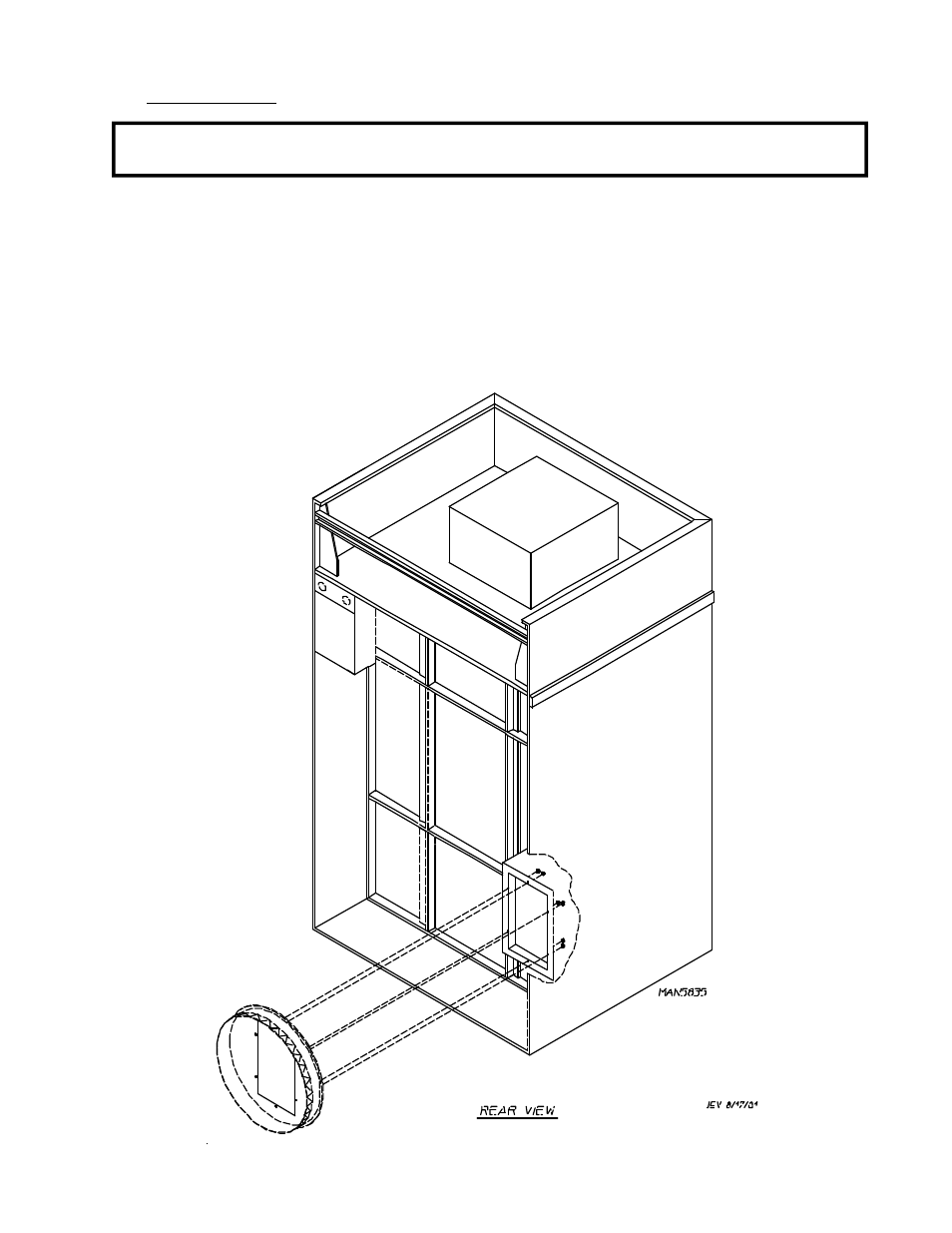

a. To install the transition piece, align the four (4) clinch studs into the four (4) clearance holes on the

dryer.

b. Using the four (4) free spin wash nuts (included with the transition piece), tighten the wash nuts on the

clinch studs, which will secure the transition piece to the dryer.

c. The round duct can now be connected to the dryer.
