B. component identification – American Dryer Corp. ID-170 User Manual
Page 12
8
Illus. No.
Description
1
Microprocessor Control/Keyboard (touch pad) Panel Assembly (controls)
2
Control (top access) Door Assembly
3
Main Door Assembly
4
Lint Drawer
5
Lint Door
6
Wire Diagram (located behind control door)
7
Data Label and Installation Label
8
Top Console (module) Assembly

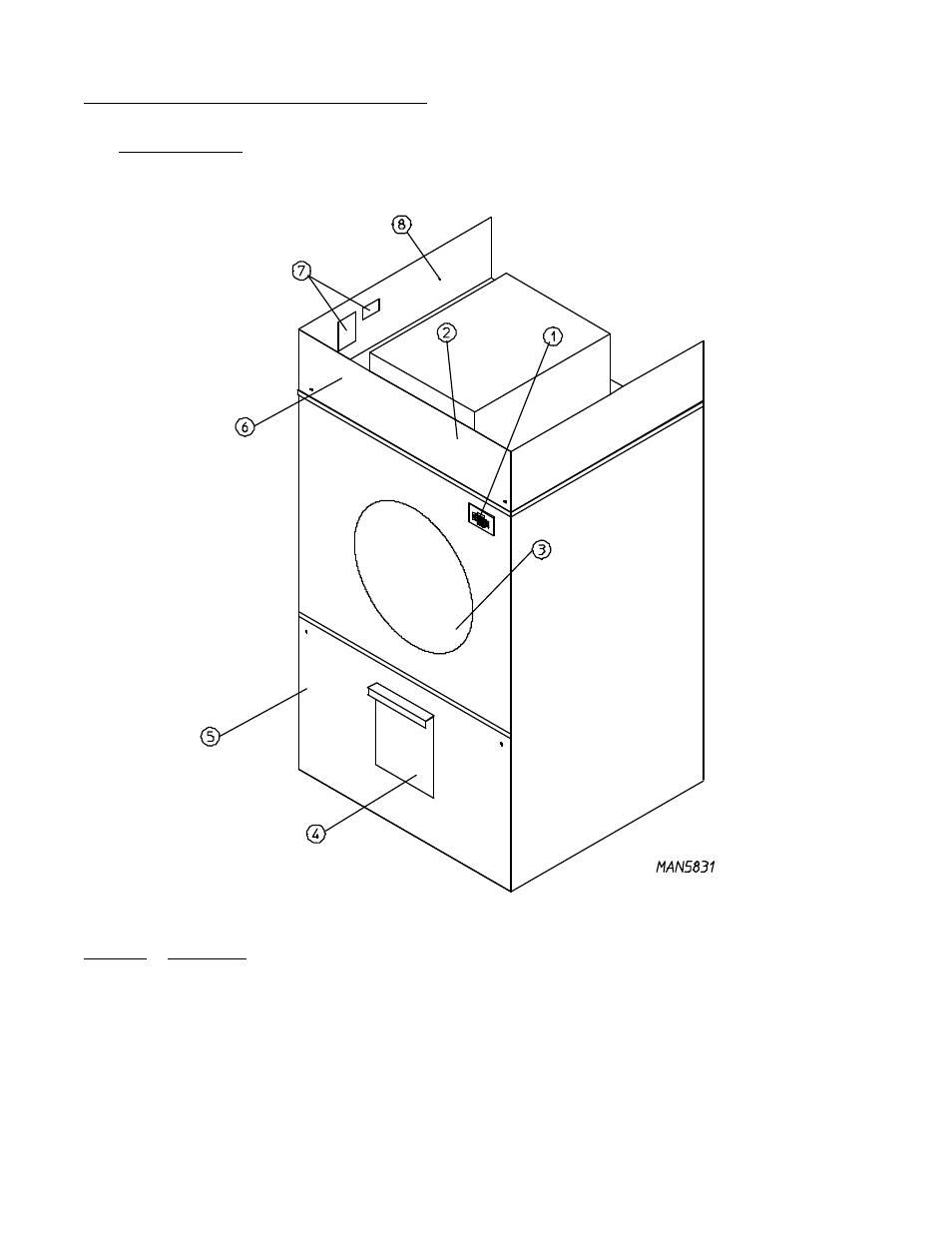

B. COMPONENT IDENTIFICATION
1. Dryer Front View
