7 AXIS 210/210A/211/211A - Introduction

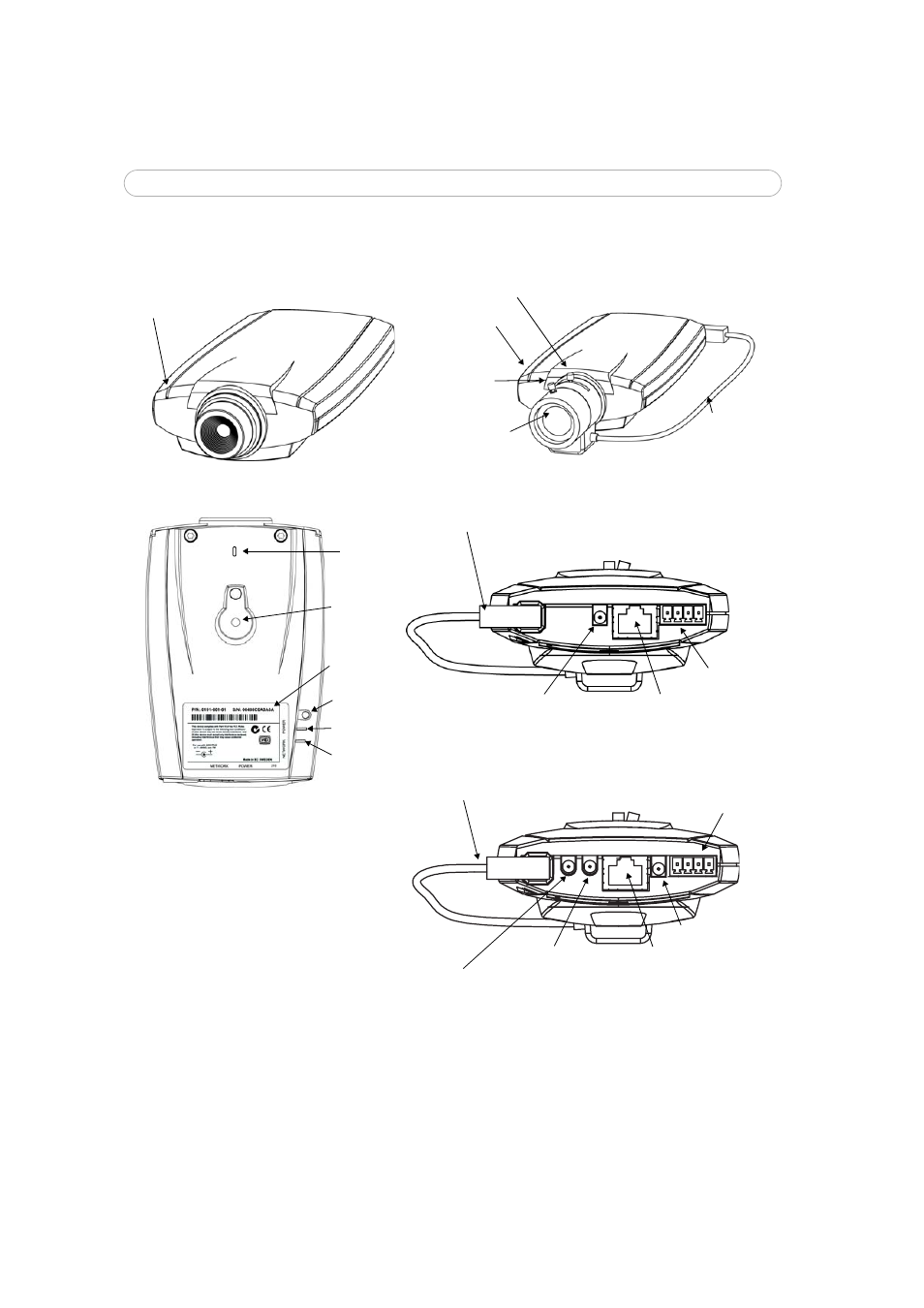

Overview
Power Connector - For connection of the PS-K power adapter (included).
I/O Terminal Connector - The I/O terminal connector provides the physical interface to
one transistor output, one digital input and an auxiliary connection point for DC power.
For more information, see The I/O Terminal Connector, on page 48.
Power connector
Rear panel
AXIS 210/211
connector
I/O terminal
Network connector
(and PoE for AXIS 211)
Status AXIS 210/210A
Underside
indicator
AXIS 211/211A
DC-Iris
Focus puller
Status
indicator
Tele/wide puller
Control
cable
Power indicator
Network indicator
Control button
Serial number
Mounting
External microphone/line input
DC-Iris control cable
Rear panel
AXIS 210A/211A
Power connector
Network connector
and PoE
Audio output
connector
I/O terminal
DC-Iris control cable
(AXIS 211)
Internal
microphone
(AXIS 210A/211A)
screw
hole
