2 - 2 6 2 - 2 6 2 - 2 6 2 - 2 6 2 - 2 6 C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n
3 . 3 . 3 . 3 . 3 . I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ E I D E [ r e d ] , I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ E I D E [ r e d ] , I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ E I D E [ r e d ] , I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ E I D E [ r e d ] , I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ E I D E [ r e d ] ,
S E C _ E I D E [ r e d ] )
S E C _ E I D E [ r e d ] ) S E C _ E I D E [ r e d ] ) S E C _ E I D E [ r e d ] ) S E C _ E I D E [ r e d ] )
These connectors are for Ultra ATA 133/100/66 signal cables. The
ITE IDE connectors support up to four IDE hard disk drives for easier
data storage.
P5LD2 DELUXE
R

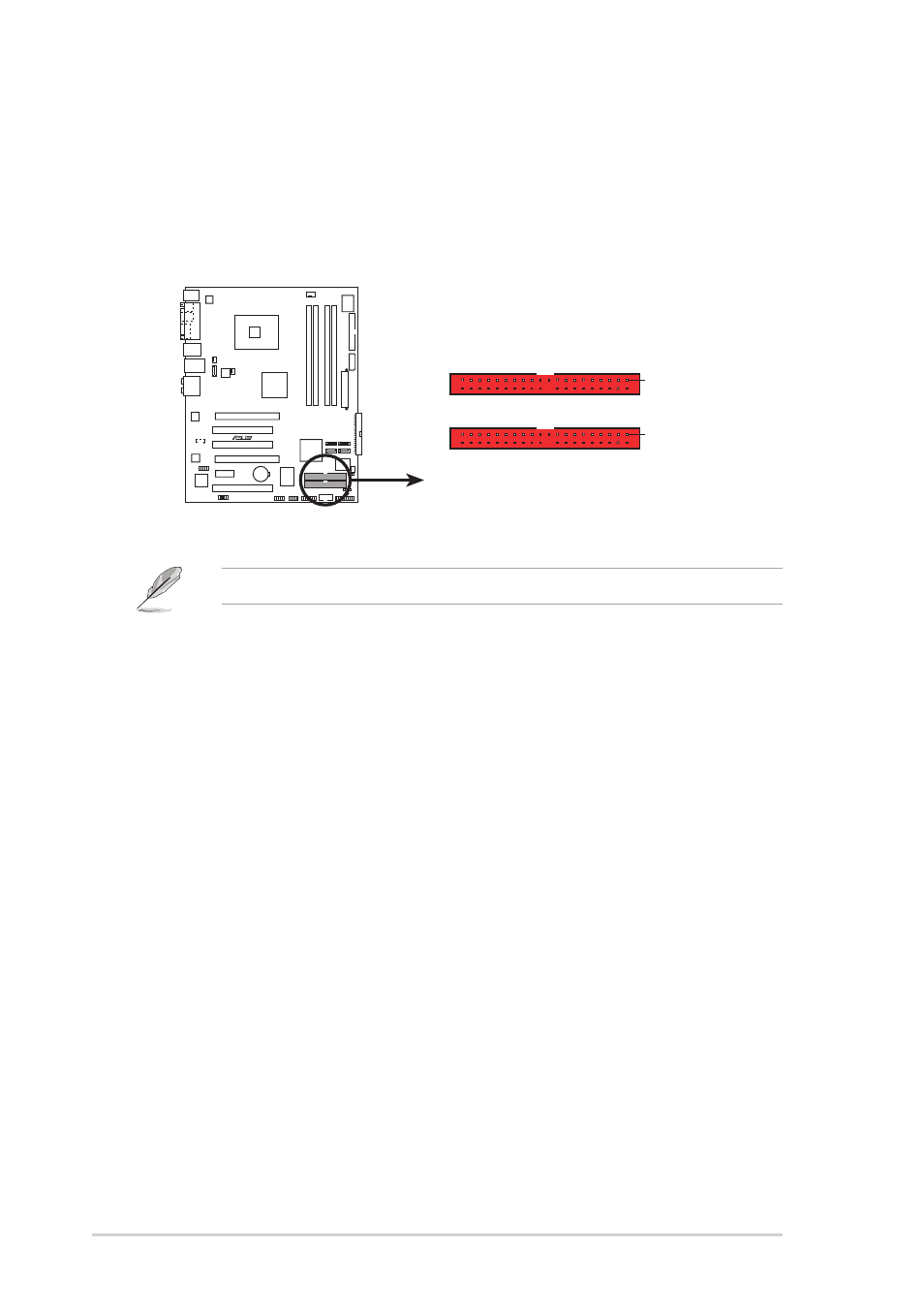

P5LD2 DELUXE IDE connectors
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
PRI_EIDE
SEC_EIDE
PIN 1
PIN 1
The connectors do not support ATAPI devices.
