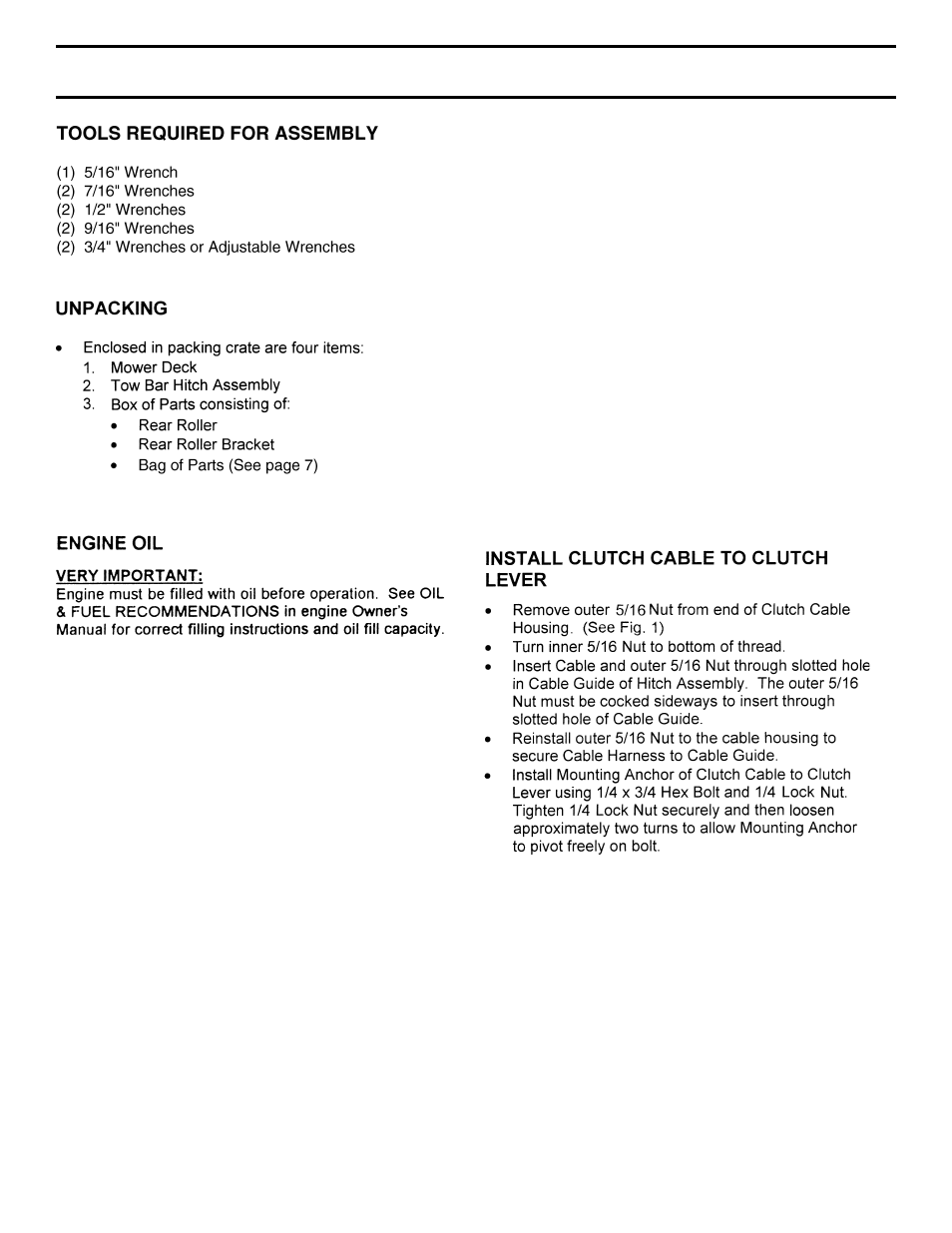

ASSEMBLY
INSTALL TOWBAR TUBE TO REAR
QUADRANT
• Remove Hex Bolts and lift Front Drive Cover from
mower housing.
• Rest end of Tow Bar Tube on front edge of mower.
• Feed Wire Harness in end of Tow Bar Tube through
large hole in back wall of Rear Quadrant.
• Place Towbar Tube into Rear Quadrant, align holes
and insert 3/8 x 2-3/4 Hex Bolt through quadrant
and rear hole of Tube.
• Secure tightly with 3/8 Hex Lock Nut and then
loosen 1/4 turn to allow Tube to pivot freely inside
Rear Quadrant.
• Assemble a 3/8 Flat Washer onto a 3/8 x 2-3/4 Hex
Bolt.
• Insert Bolt and Washer into slot in Rear Quadrant
and into hole in Towbar Tube.
• Secure Tightly with 3/8 Flat Washer and 3/8 Hex
Lock Nut, then loosen 1/4 turn to allow Tube to
pivot freely inside Rear Quadrant.
NOTE: Towbar Tube must pivot freely inside Rear
Quadrant when Latch is pulled from notch.
INSTALL WIRE HARNESS TO ENGINE
• Feed Wire Harness up through hole in middle of Front
Drive Cover.
• Install one Wire to Engine Magneto Ground Terminal.
(The same Terminal as red Wire from inside Mower.)
• Install other Wire of Wire Harness to Engine Ground
Base. (The same Terminal as black Wire from inside
Mower.)
• Refasten Front Drive Cover to mower housing.
INSTALL CLUTCH TO TOWBAR TUBE
• Place Clutch Cable forward along Towbar Tube.
• Spread ends of three Cable Clips and place around
Clutch Cable.
• Place Clutch Cable on top of Towbar Tube and align
Cable Clips with bolt holes in Towbar Tube.
• Secure with three #10 Screws.
