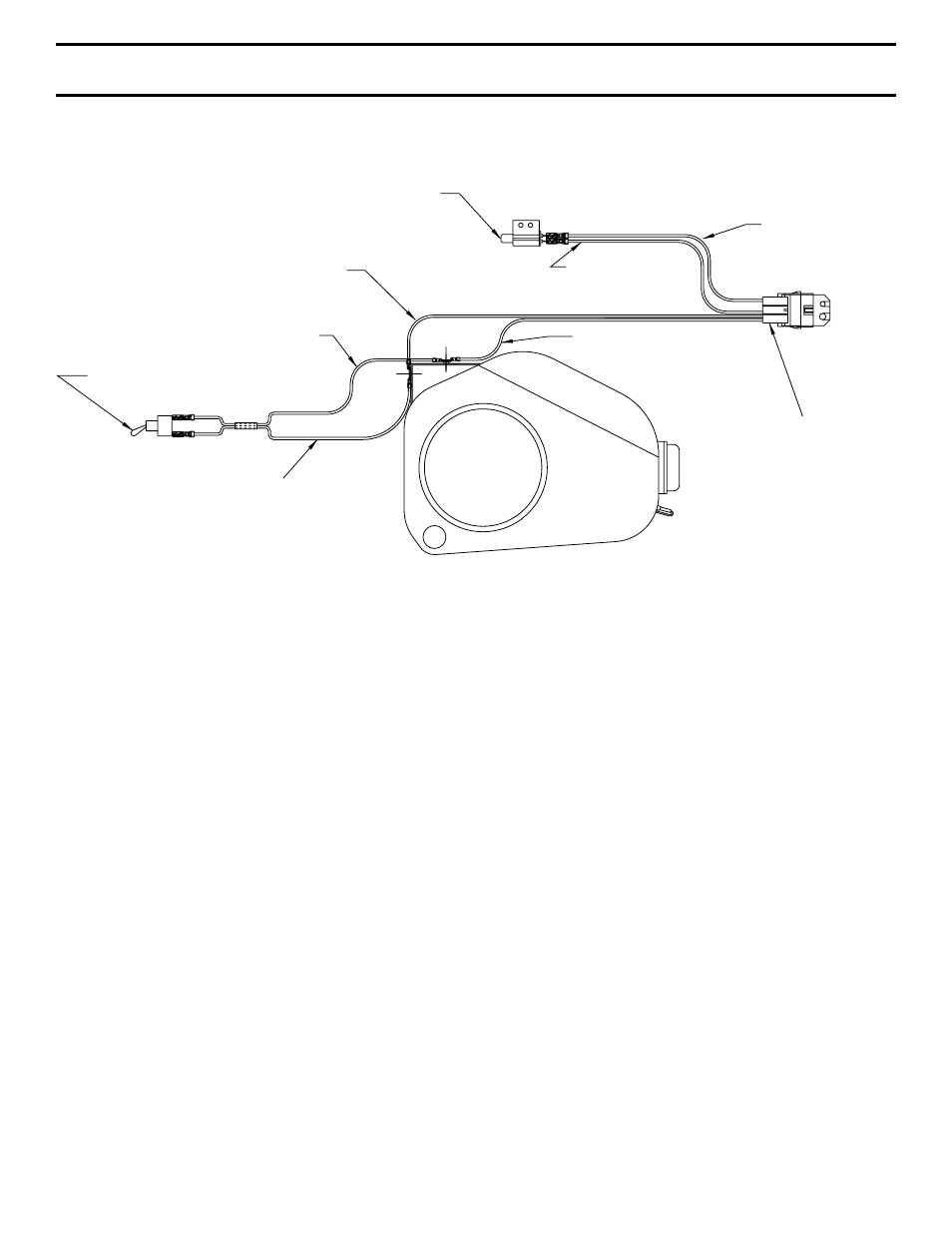

WIRING DIAGRAM
ENGINE
ENGINE ON/OFF SWITCH
ELECTRONIC
CONTROL
MODULE
BLACK WIRE
FROM MODULE
TO SWITCH
BLACK WIRE
FROM MODULE
TO SWITCH
SWITCH
BLACK WIRE
FROM MODULE TO
ENGINE GROUND
BLACK WIRE
FROM ON/OFF SWITCH
TO ENGINE GROUND
BLACK WIRE
FROM ON/OF SWITCH
TO MAGNETO GROUND
RED WIRE FROM MODULE
TO MAGNETO GROUND
A B C D E F
OIL
