REMOVE AND DISCARD (2) TWO SCREWS WHICH SECURE BRACKET TO
HOUSING.
SEPARATE HOUSING TOP FROM HOUSING BOTTOM.
1. Route video and audio cables to passenger’s side
rear of vehicle. Using a razor knife, carefully cut a
slit in carpet to allow cables to pass through. Make
sure wiring will not rub against edge of bracket.
Position VCP mounting bracket (item 3 pg 2)
against side panel and 1 1/8" from back edge of
ledge on side panel as shown. Make sure bottom of
bracket is firmly resting on floor of vehicle. Mark
the center of slot on side panel.
See Figure 1.
2. Carefully drill a 3/8" hole in location previously
marked. CAUTION: Drill through plastic
only, do not drill through sheet metal brace
behind plastic. See Figure 2 .
3. Align slot in VCP mounting bracket with hole
previously drilled. Loosely install (1) one
#8 x 1 1/2" screw (item 1 pg 2) in dimple in
metal brace behind plastic panel.
See Figure 3.

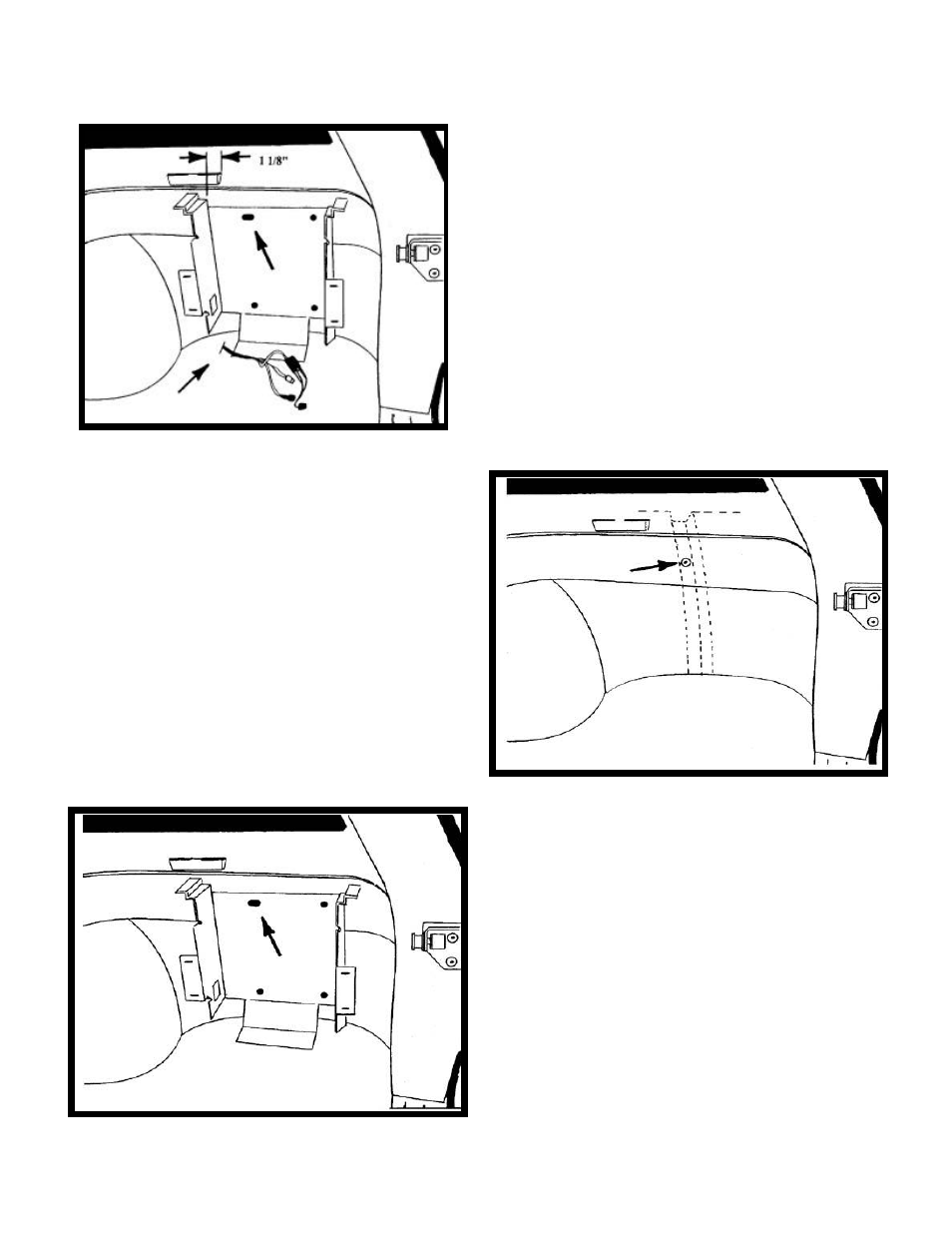

FIGURE 1
FIGURE 2
FIGURE 3
