CS506 Fuel Moisture Sensor
probe is then inserted into the CS205 stick. Tighten the compression fitting so
that it compresses the split wood and snugly holds the 107 probe.
The mounting stake ships with a package of three ultraviolet light resistant
cable ties. One cable tie passes through the two slots where the fuel moisture
stick attaches to the CS506 sensor in order to loosely secure the cable of the
CS205/107. The other two cable ties are used to secure both cables to the
mounting stake.
26601 Ponderosa
Pine Dowel
CS506
Sensor
CS205
Stick
107 Temperature
Probe

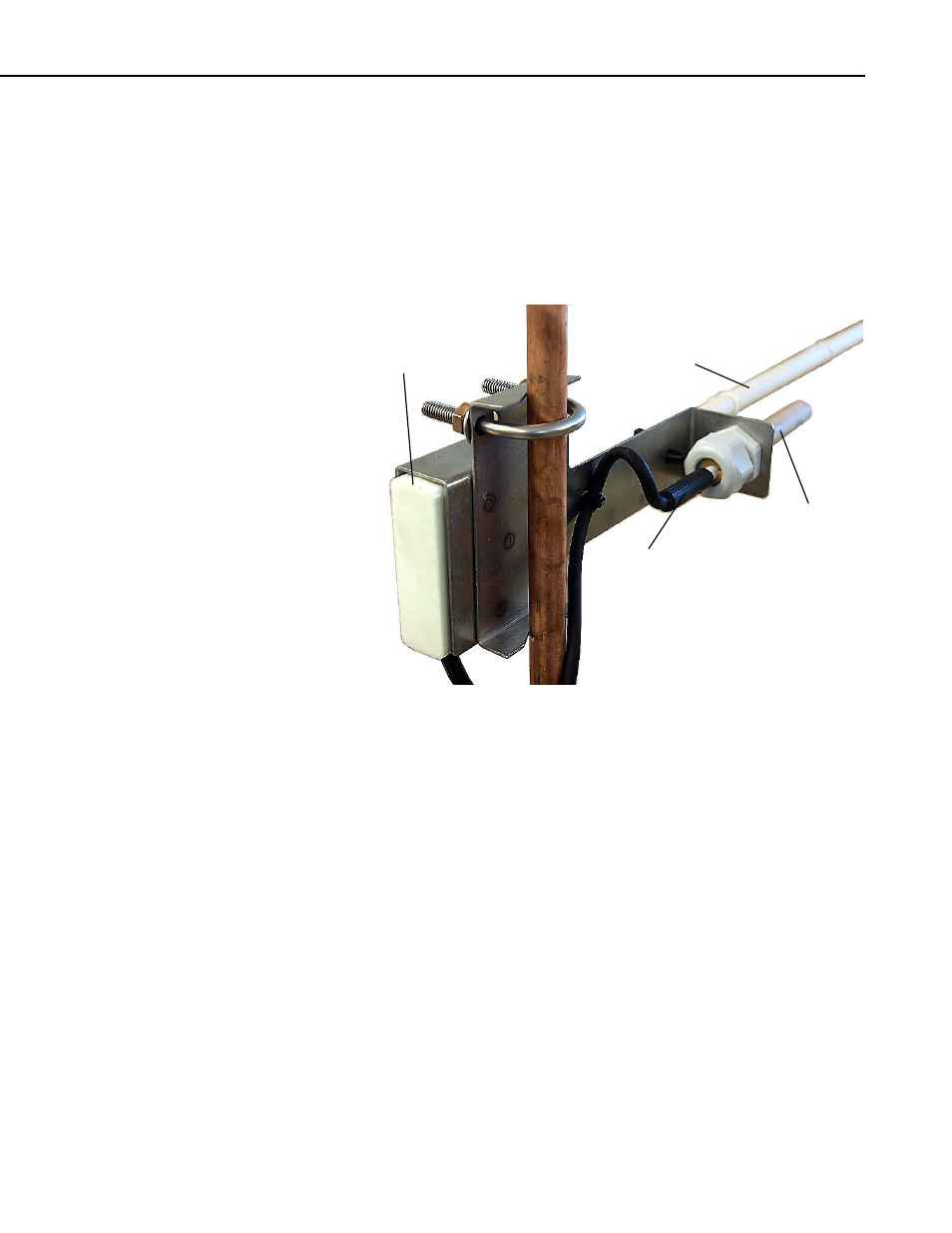

FIGURE 3-1. Back view of the 26817 fuel moisture/temperature
mounting stake; mount ~12-in. over duff layer
