CS506 Fuel Moisture Sensor
107 Temperature
Probe
CS205 10-Hour Fuel
Temperature Stick
CS506 Fuel
Moisture
Sensor
26601 Ponderosa
Pine Dowel

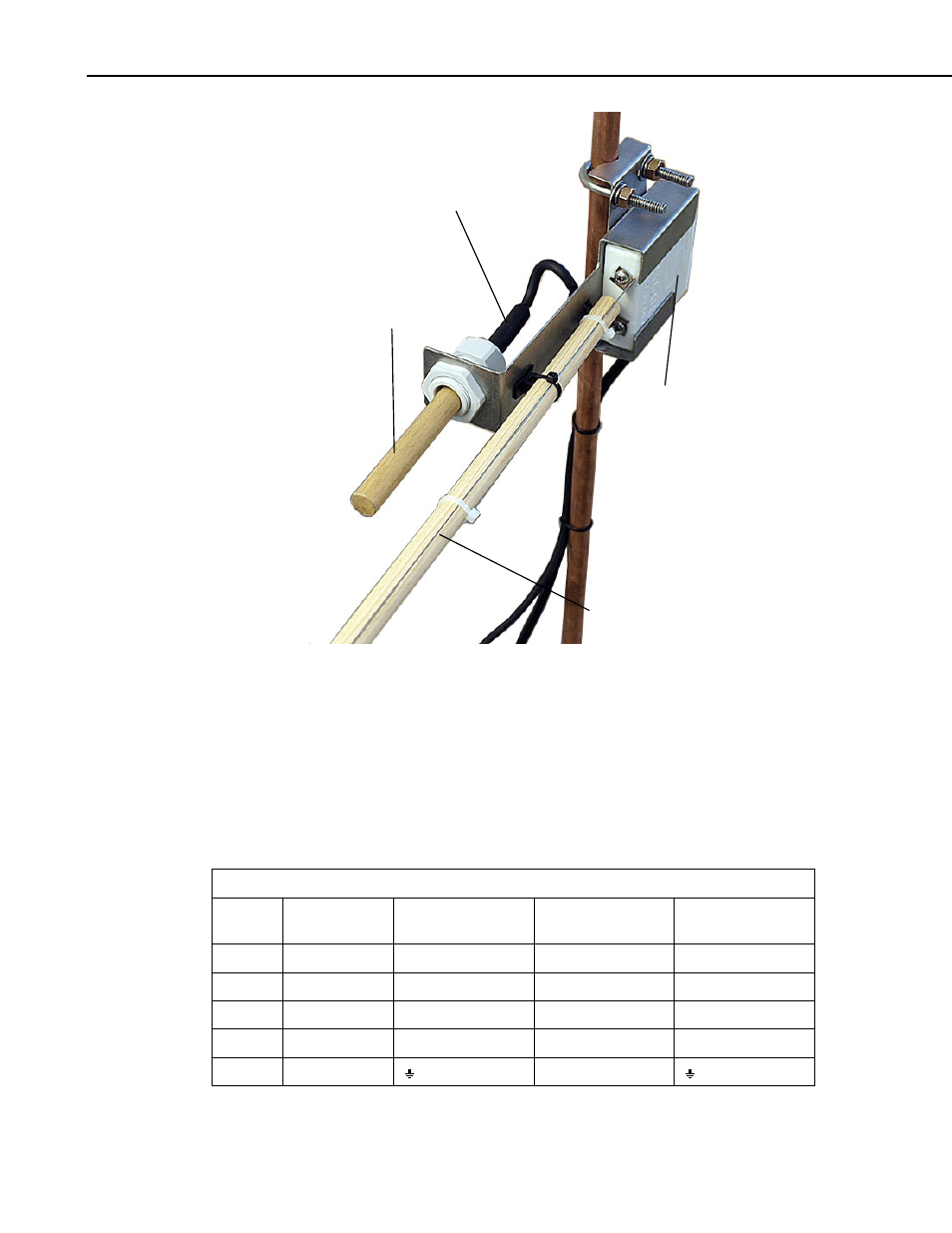

FIGURE 3-2. Front view of the 26817 fuel moisture/temperature
mounting stake
4. Wiring
Connections to Campbell Scientific dataloggers are given in Table 4-1. When
Short Cut for Windows software is used to create the datalogger program, the
sensor should be wired to the channels shown on the wiring diagram created
by Short Cut.
TABLE 4-1. CS506 Wiring
Color
Description CR800/CR1000/
CR3000 CR10(X)/CR500/
CR510
CR23X
Red Power 12 V 12 V 12 V
Black Ground G G G
Green Signal Analog Channel Analog Channel Analog Channel
Orange Enable Control Port Control Port Control Port
Clear Ground G
