CM300 Series Mounting Poles
Remove the template after the concrete has cured. Insert the pole into the
pedestal, and tighten the six bolts evenly.
Each J-bolt should have two nuts and one washer installed, with the bottom
nuts about 1/4” above the bottom of the threads. Place the pedestal over the
J-bolts and install a flat washer, split washer, and nut on each bolt – do not
tighten the nuts at this time.
Adjust the lower nuts on each J-bolt to plumb the pole. “Lock” the lower nuts
together using two wrenches. Tighten the upper nuts to secure the pedestal to
the J-bolts.
3.5”
1.5”
24”
14”
CM300 Series Pole
Ground Lug
Pedestal
J-Bolt Kit
Concrete
Foundation

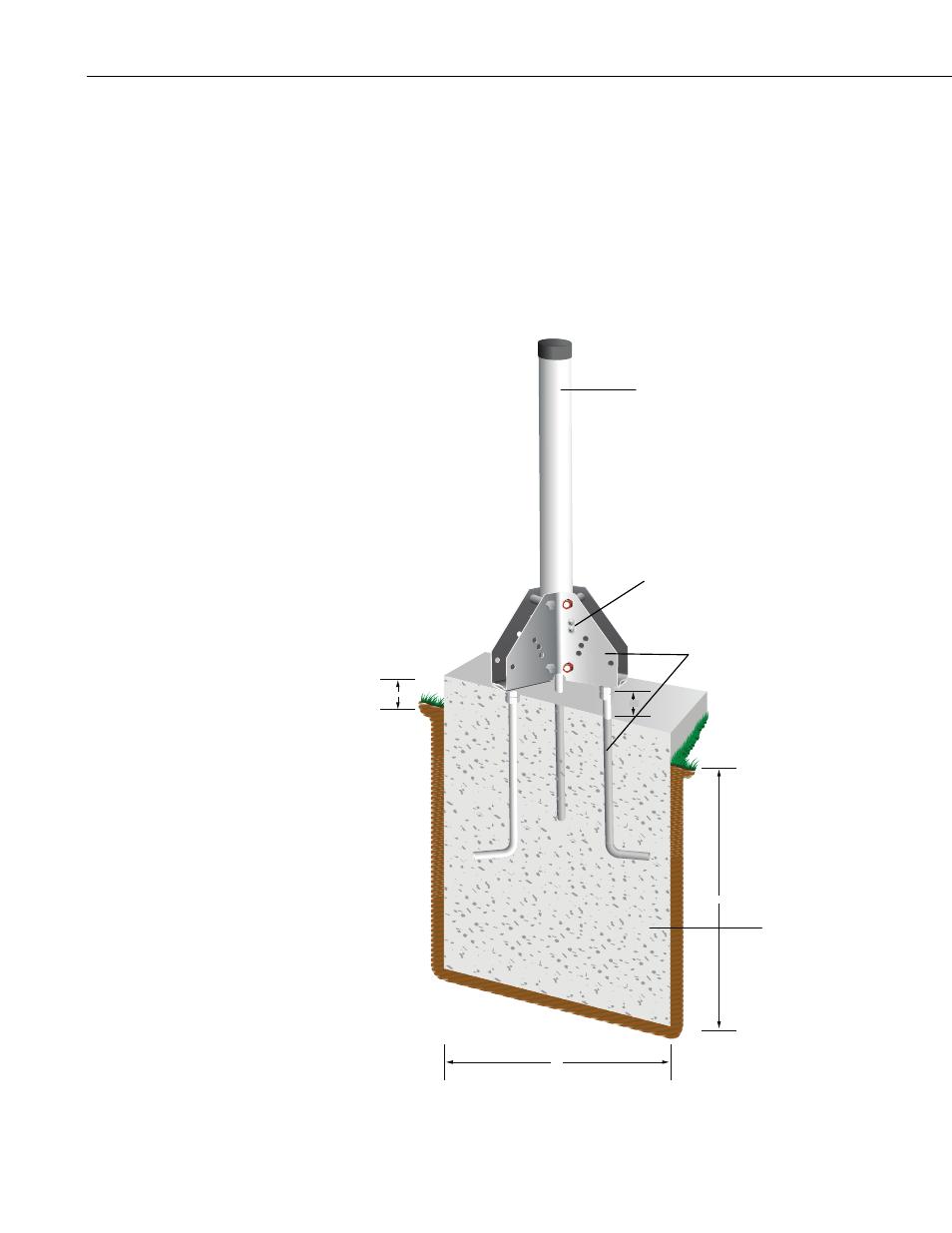

FIGURE 3. CM305 Mounting Pole with Pedestal J-Bolt Kit
4
