CM300 Series Mounting Poles
1. General
The CM300 Series Mounting Poles provide a stainless steel 1.5 IPS vertical
pole for mounting sensors, enclosures, or other instrumentation. Pole length is
23”, 47”, or 56” for the CM300, CM305, and CM310 models respectively.
Mounting poles can be placed directly into a concrete foundation, attached to a
concrete foundation with the Pedestal J-Bolt Kit option, or can be self-
supporting with the Pedestal Leg options (Figures 1-4). A vinyl cap prevents
precipitation from entering through the top of the pole.
24”
8”
Rain Gage
CM240 Bracket

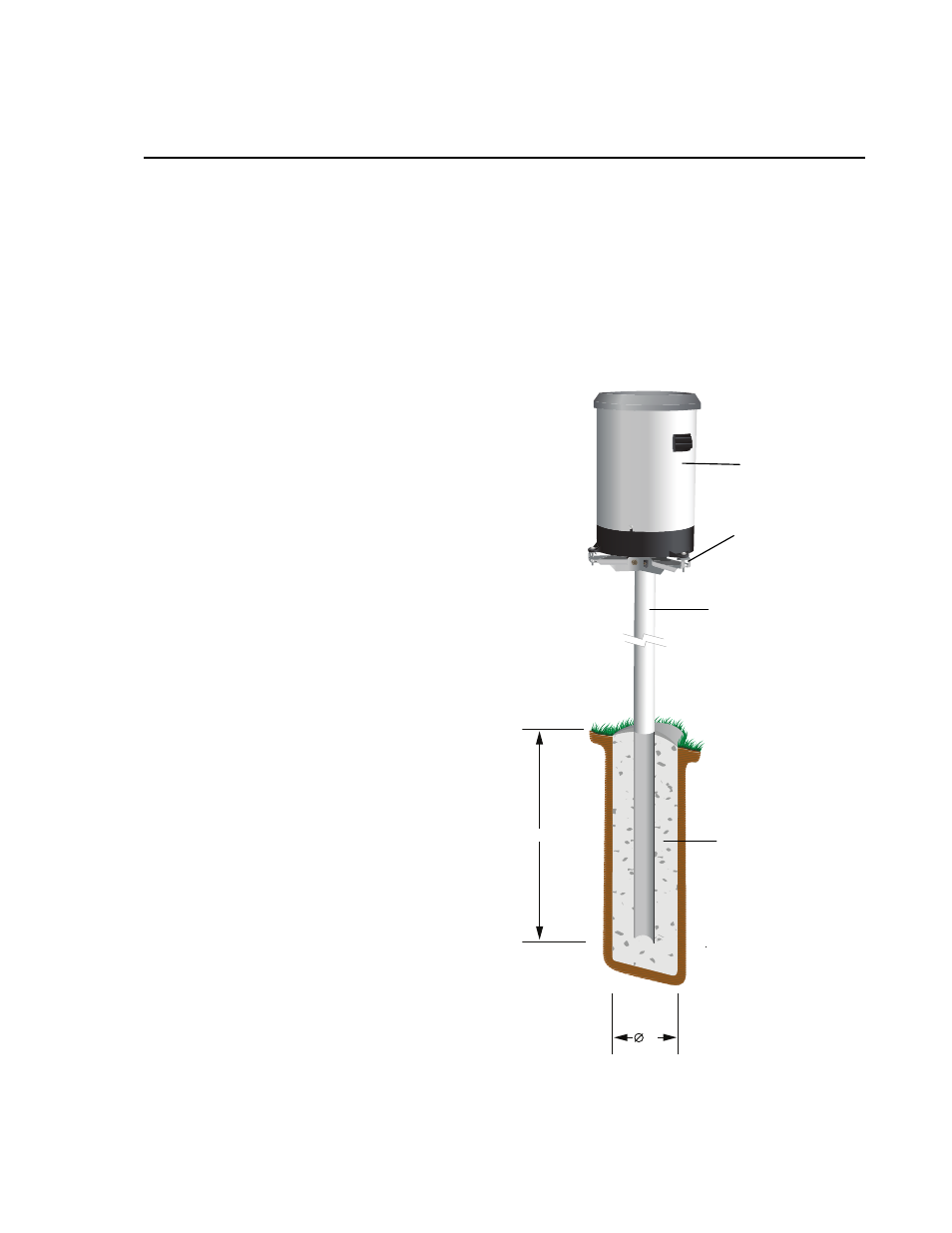

FIGURE 1. CS700 Rain Gage with CM240 Bracket
and CM310 Mounting Pole
CM300 Series Pole
Concrete
Foundation
1
