4 Simple Configuration (No DSP)
The STAGE8.8 ships with the 8 analog inputs linked to CobraNet® Transmitter sub
channels
1‐8
and
CobraNet®
Receiver
sub
channels
33‐40
are
linked
to
the
8
analog
outputs.
This
allows
the
STAGE8.8
to
be
used
‘out
of
the
box’
by
merely
setting
up
Transmitter
and
Receiver
(‘Bundle’)
network
addresses.
However,
the
STAGE8.8
has
the
capability
of
transmitting
16
CobraNet®
channels
and
receiving
16
CobraNet®
channels,
so
a
more
sophisticated
routing
can
be
configured
using
the
free
utility
Cobranet
Discovery
(CNDISCO)
from
Cirrus
Logic.
4.1 CNDISCO ‐ Setup
To
use
CNDISCO,
the
host
PC
or
laptop
must
be
set
to
the
default
IP
subnet
in
order
to
talk
to
the
STAGE8.8.
Figure 4-1
below
shows
the
method
of
setting
up
a
Windows
computer.
NOTE:
The
default
IP
address
of
the
STAGE8.8
IS
192.168.192.50.

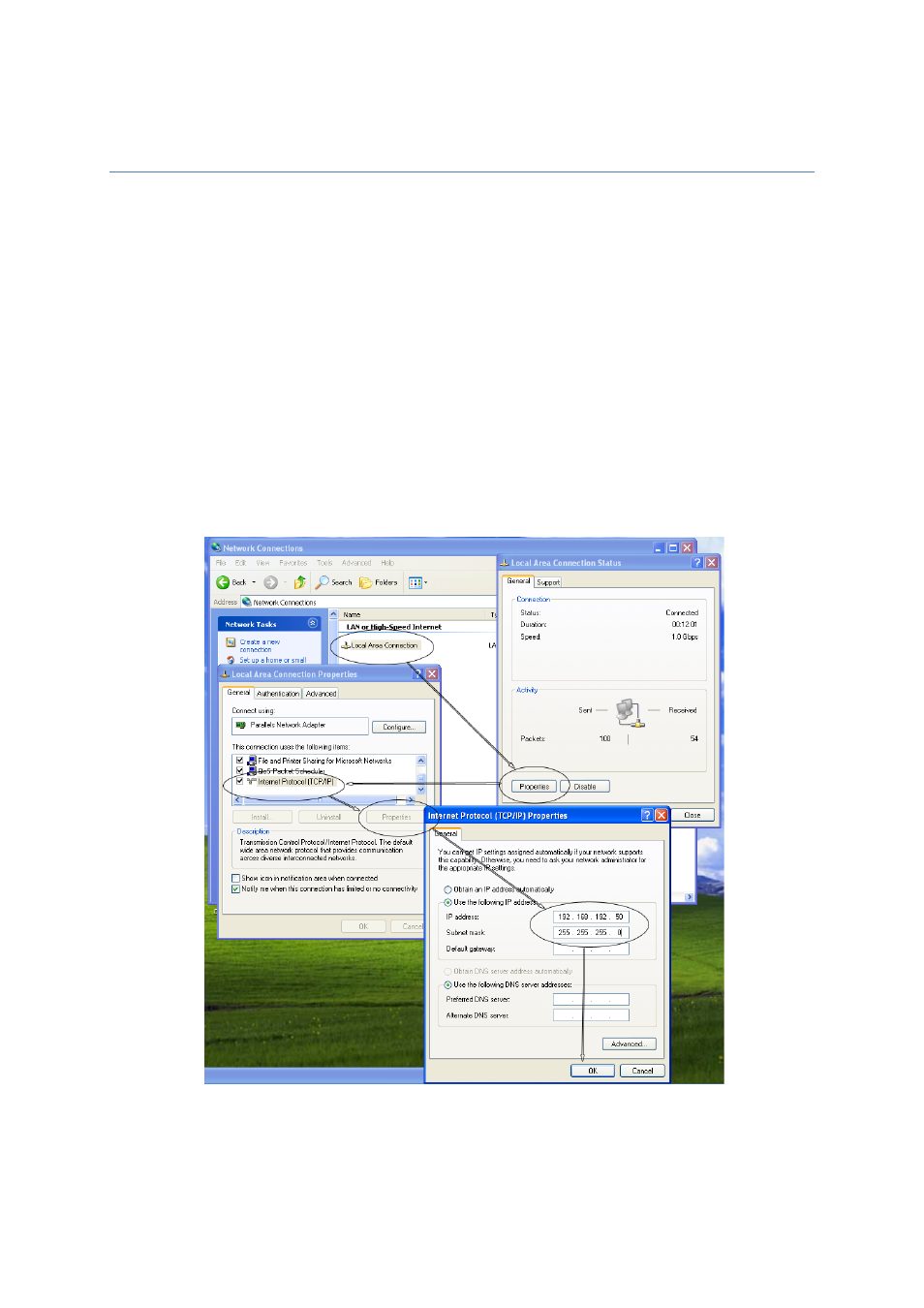

Figure 4-1:
Setting up the IP address and subnet mask.
• Go
to
Control
Panel
and
then
open
“Network
connections”.
• Click
on
the
General
tab
and
open
“Properties”.
• Select
“Internet
Protocol
(TCP/IP)”
and
click
on
properties.
