Kinivo 501BN HDMI Switch
7

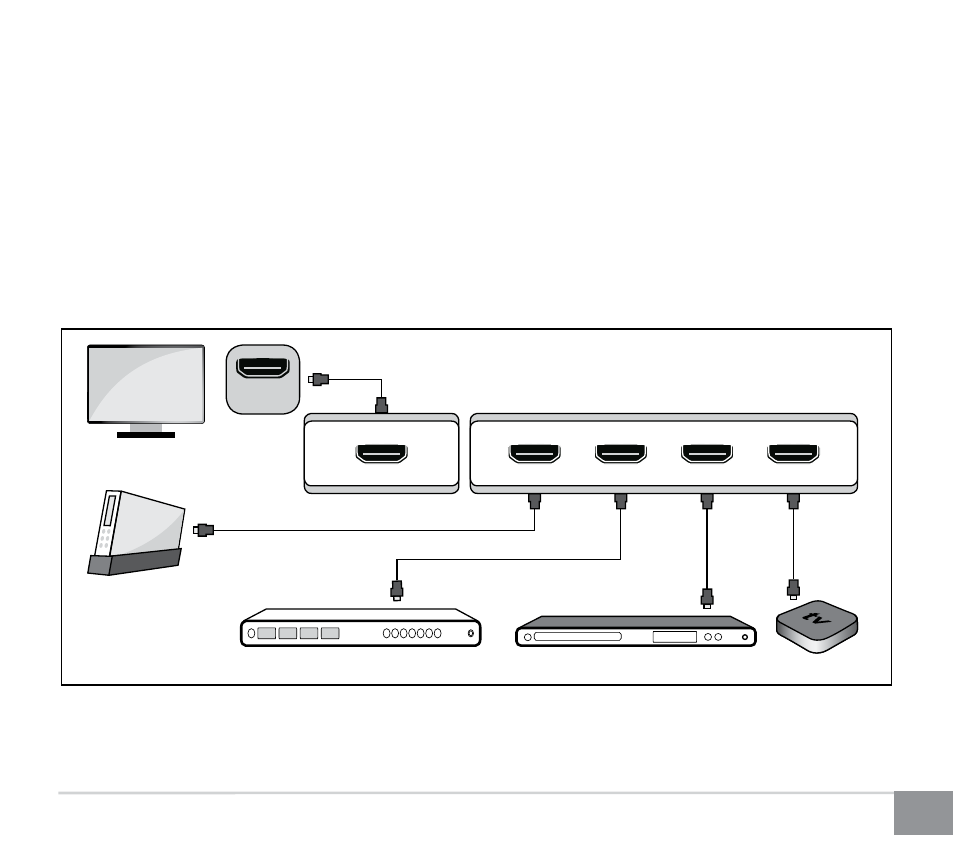

Typical Setup
1. Take an HDMI cable and plug one end into the HDMI input port on your HDTV or projector. Plug the other
end to the output port of the HDMI switch
2. Take another HDMI cable and plug one end into the HDMI Output port on your Gaming Console. Plug
the other end into the HDMI Input 1 port of the HDMI Switch.
3. Repeat the above step to connect your Cable Box, Digital Video Recorder (DVR), DVD Player etc.
4. Plug the +DC 5V output plug of the power adapter into the DC IN jack of the HDMI Switch (Shown under
‘Side Panel Connector’ on Page 2). Plug the power adapter into an AC power outlet. Your HDMI switch is
now connected and ready for use.
Note: The remote control uses infrared light signal and requires direct line-of-sight to the IR Remote Sensor.
Please make sure that the IR Remote Sensor is not blocked.
HDMI In
DVD Player
Game Console
HDTV
HDMI Cables
HDMI Cable
Cable Box or DVR
Input 1 Input 2 Input 3 Input 4 Output
