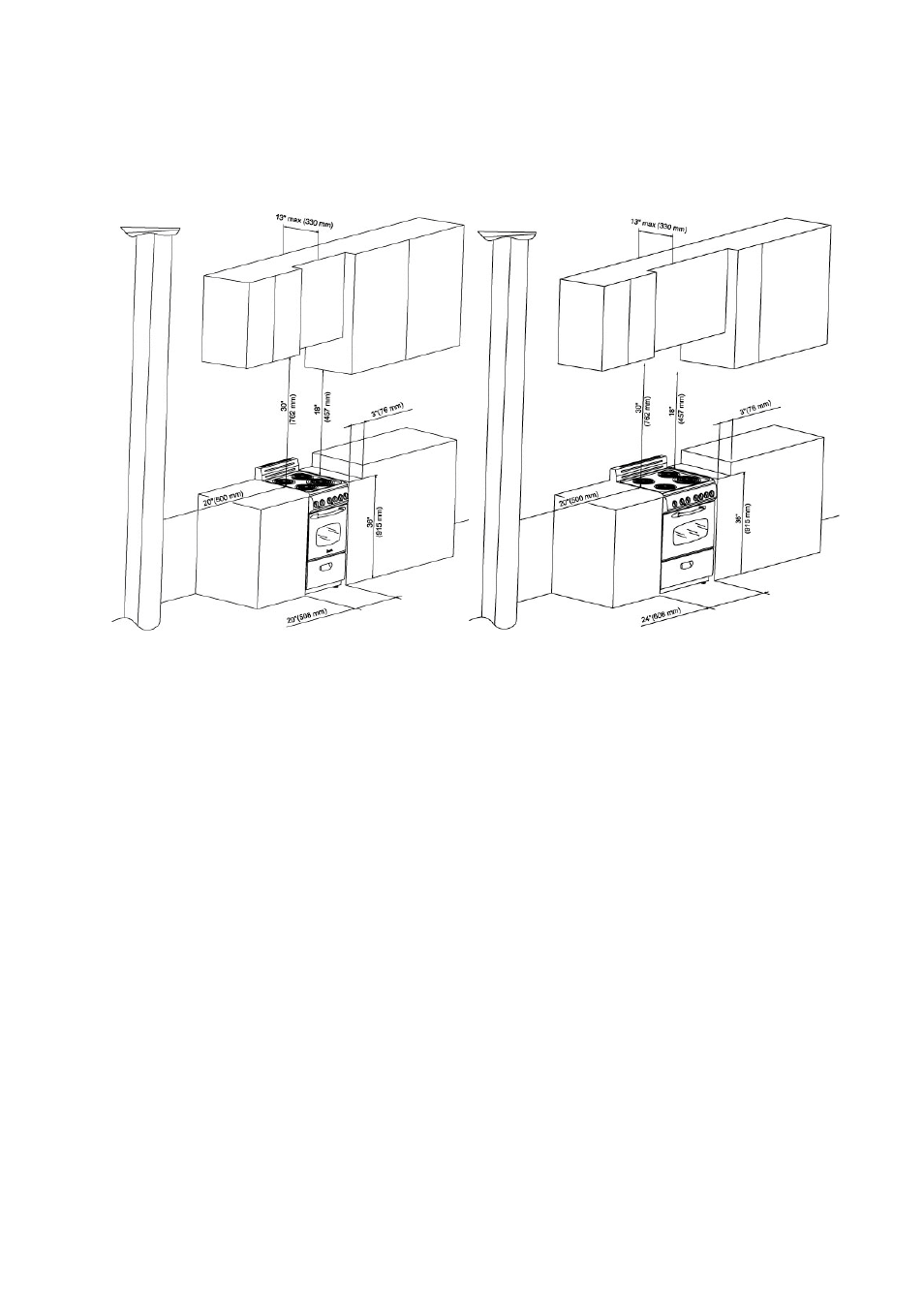

Installation Figure


Model #: ER2001G/ER2002CSS

Model #: ER2401G/ER2402CSS

• The electric range must be installed by a qualified technician. Make sure you have everything

necessary for correct installation. It is the installer’s responsibility to comply with installation
clearances specified in the manual.

• Cabinet opening dimensions that are shown above must be used. Given dimensions are

minimum clearances. The minimum spacings must be maintained between the appliance
cooking surface and the horizontal surface above the cooking top.

• 30 inches is the minimum clearance between the top of the cooking surface and the bottom of

an unprotected wood or metal cabinet

• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage

space located above the surface units should be avoided. If cabinet storage is to be provided,
the risk can be reduced by installing a range hood that projects horizontally a minimum of 5
inches beyond the bottom of the cabinets.

• Place your electric range on a floor that is strong enough to support it when it is fully

assembled as above picture. To level your electric range, adjust the leveling legs at the
bottom of the unit.

• Avoid locating the unit in moist areas. As this may result in the risk of electrical shock.
