NOMENCLATURE AND FUCTIONS NOMENCLATURE AND FUCTIONS
7
13.24V DC POWER SUPPLY
14.MIC(1~4)
MICRO(1~4)microphone input
15.GAIN
MICRO(1~4) microphone gain control
16.LINE
Audio source interface
17.REC
To recorder interface
18.POWER IN
Form effect return interface
19.PRE OUT
To effect input interface
20.FANNER
21.SPEAKER TERMINALS
Connectors for 4 ohms or 50V \ 70V and 100V
speaker
22.OUT
Audio output
23.CHIME VOLUME
Chime volume control
24.PRIORITY
Priority control port
25.PHANTOM MIC
MIC(1~4) phantom power select switch
26.~230V/50Hz
power input

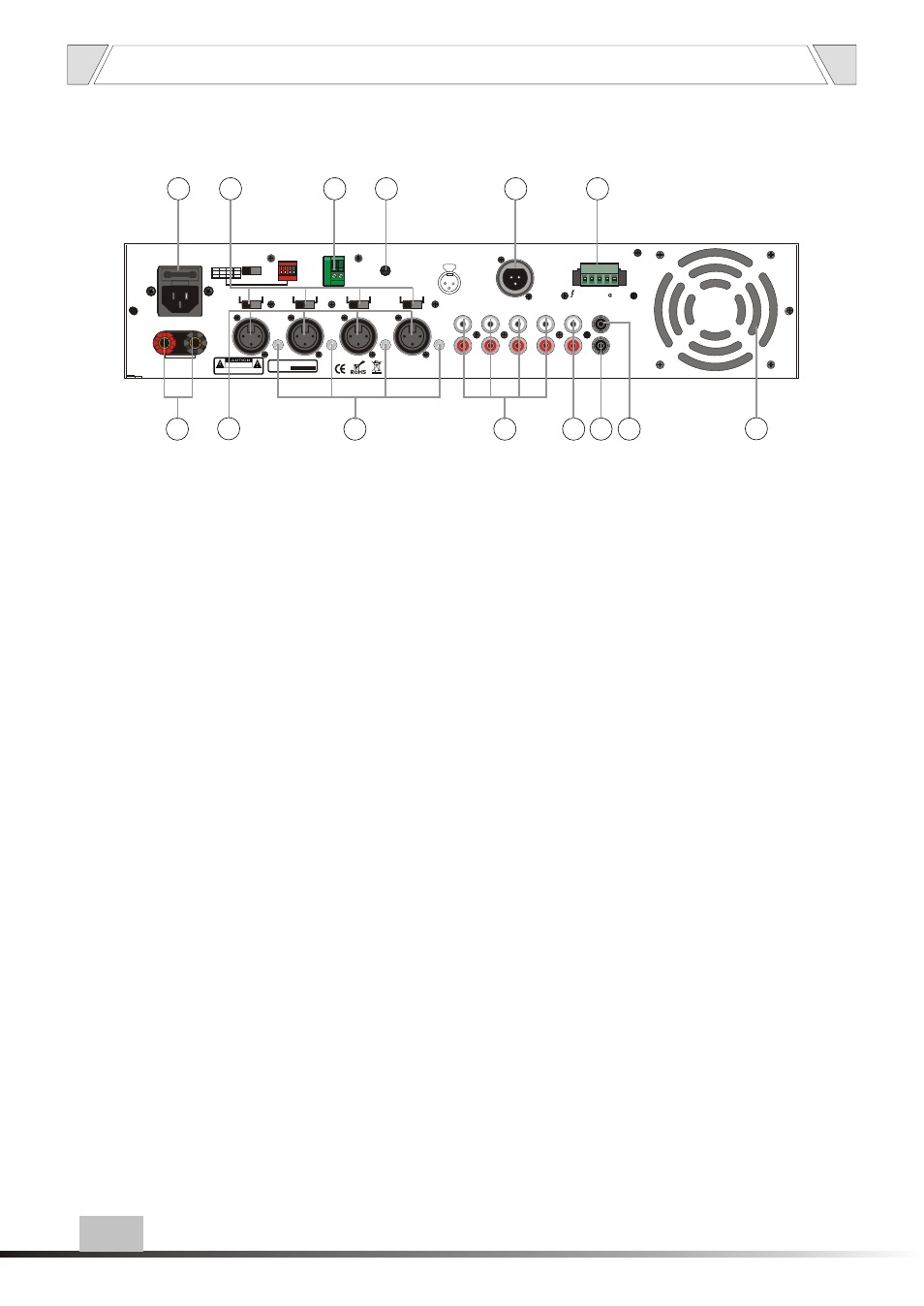

4.2 REAR PANEL
Project240
1 2
3
1 2
3
1 2
3
1 2
3
MIC1 MIC1 MIC2 MIC2 MIC3 MIC3 MIC4 MIC4
ON ON OFF OFF ON ON OFF OFF ON ON OFF OFF ON ON OFF OFF USE ONLY WITHA 250W FUSE
T6.3AL 250V
230V /50Hz ~
BATT SUPPLY
+ DC24V -
GAIN GAIN GAIN GAIN
TAPE CD TUNER LINE REC PRE OUT
POWER IN
PHANTOM PHANTOM MIC MIC PHANTOM PHANTOM MIC MIC PHANTOM PHANTOM MIC MIC PHANTOM PHANTOM MIC MIC
VOLUME VOLUME
CHIME CHIME
MICRO 1 MICRO 2 MICRO 3 MICRO 4
OUT
1 0
0
V
7
0
V
5
0
V
44 C
O
M
POWER OUT
MIC PRIORITY MIC PRIORITY
2T 2T 4T 4T CHIME CHIME
XLR BAL
1-GND
2-HOT+
3-COLD-
1 1 2 2
3 3
OUT
1 1 2 2 3 3 4 4
ON ON
RISK OF ELECTRIC SHOCK DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO :
21 22 25 26
14 15 16 17 18 19 20
23 24
13
