Matrix Orbital MOP-GL24064R - Manual (Page 8)

7

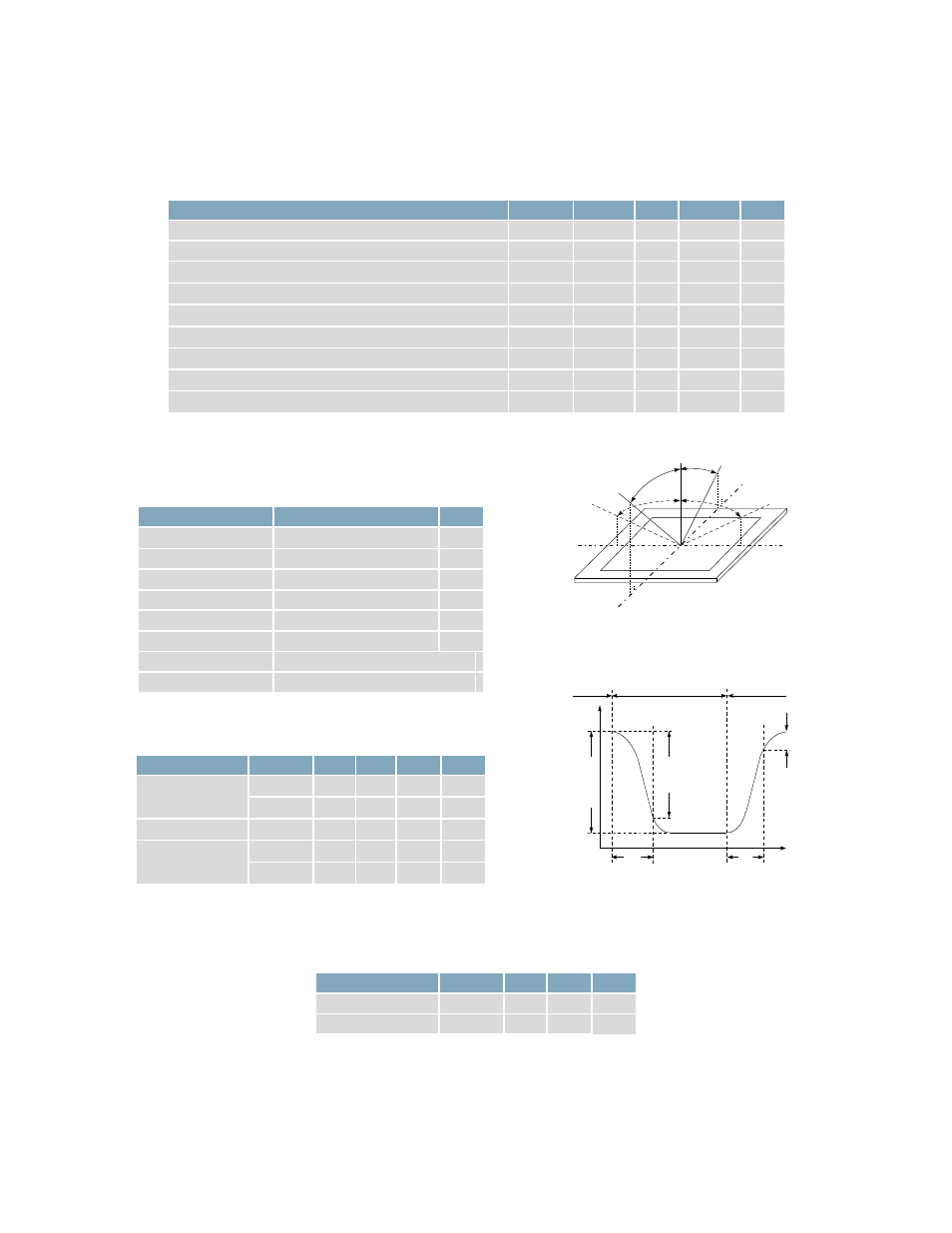

Specifications
Electrical
Table 6: Electrical Characteristics
Item Symbol Min Typ Max Unit
Supply Voltage For Logic V
DD
2.7 3.3 5.0 V
Supply Voltage For LCD (Contrast) V
0
-8.8 -7.7 -5.8 V
Input High Voltage V
IH
0.7 V
DD
－ V
DD
V
Input Low Voltage V
IL
V
SS
－ 0.3 V
DD
V
Supply Current (V
DD
=3.3V) I
DD
－ 23.0 28.0 mA
Supply Voltage of Green and Blue Backlights (4 Die) V
LED
2.9 3.1 3.3 V
Supply Current of Green and Blue Backlights (4 Die) I
LED
0 － 60 mA
Supply Voltage of Red Backlight (4 Die) V
LED
1.9 2.1 2.3 V
Supply Current of Red Backlight (4 Die) I
LED
0 － 40 mA
Optical
Table 7: Display Characteristics
Item Dimension Unit
Number of Pixels 240 Columns x 64 Rows －
Module dimension 112.0 x 38.0 x 31.0 mm
View area 98.0 x 28.4 mm
Active area 93.67 x 24.93 mm
Dot size 0.36 x 0.36 mm
Dot pitch 0.39 x 0.39 mm
Duty 1/64
View direction 12 o’clock
Figure 5: Viewing Angle Definition
Figure 6: Display Response Time
Table 8: Viewing Characteristics
Item Symbol Min Typ Max Unit
View Angle
(V)θ -20 － 35 deg
(H)φ -30 － 30 deg
Contrast Ratio CR － 3 － －
Response Time
T rise － － 250 ms
T fall － － 250 ms
Environmental
Table 9: Environmental Specifications
Item Symbol Min Max Unit
Operating Temp. Top -20 70 ℃
Storage Temp. Tstr -30 80 ℃
Note: Maximum 90% non-condensing humidity.
θf
φ= 180°
φ= 90°
φ= 0°
φ= 270°
θb
θr
θl
Intensity
90％
100％
Tr
10％
Tf
Non-selected
Conition
Non-selected
Conition
Selected Conition
[positive type]
