3
Features
The Matrix Orbital Parallel display series offers a low cost display solution utilizing an industry standard
communication interface for simple integration into a wide variety of new and existing applications. The
Light Emitting Diode backlight with configurable brightness and voltage controlled contrast allows the
MOP Liquid Crystal Display line to offer a professional display solution for any project.
Hardware
Drawing

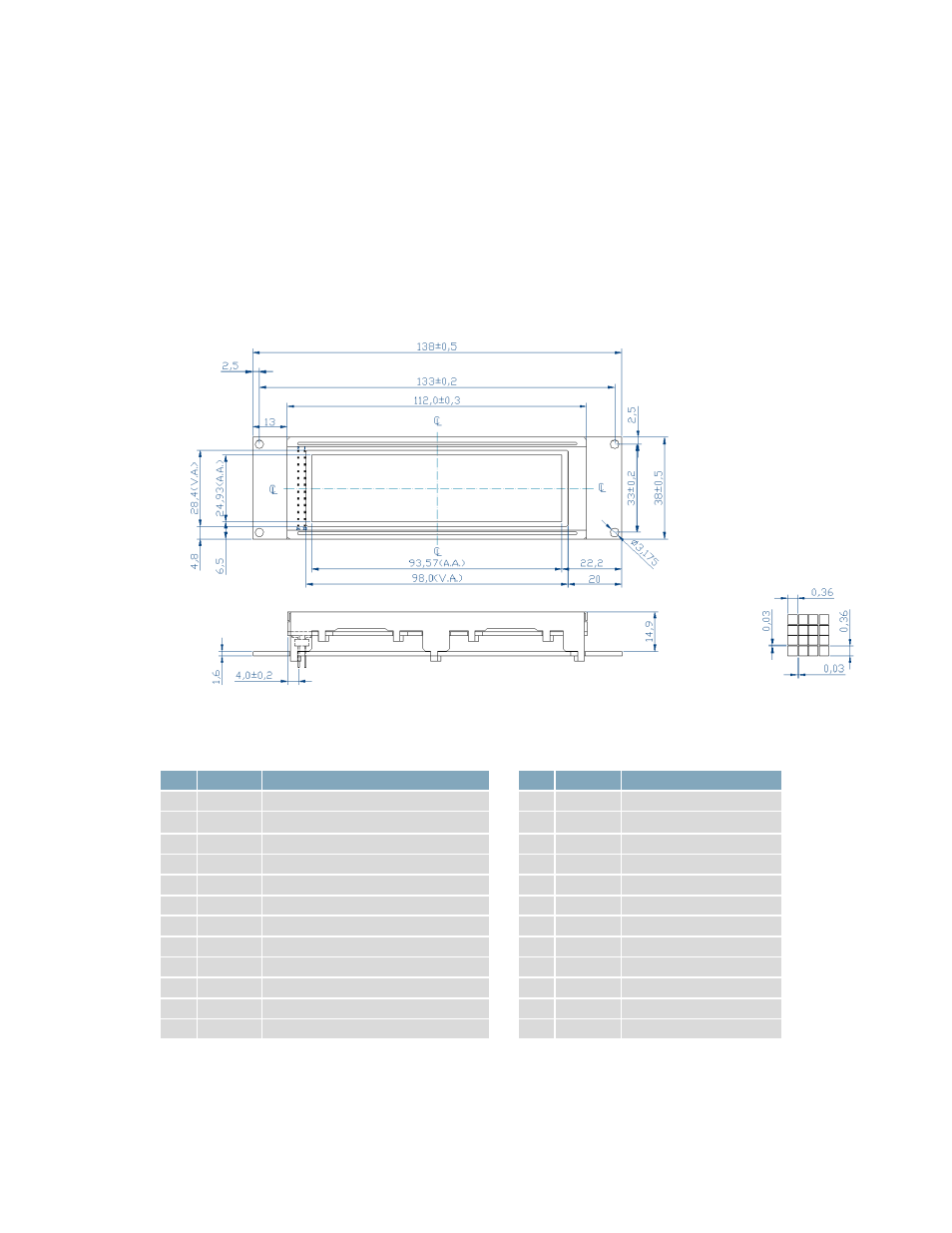

Figure 1: MOP-GL24064A Mechanical Drawing
Interface
Table 1: Display Control
Pin Symbol Description
1 FGnd Frame Ground
2 V
SS
Ground
3 V
DD
Supply Voltage for Logic
4 V
0
Supply Voltage for LCD (Contrast)
5 WR Write
6 RD Read
7 CS Chip Enable
8 C/D Command/Data
9 NC No Connect
10 RST Reset
19 FS Font Select
20 V
EE
* Negative Voltage Output
*Note: Offered on applicable units only
Table 2: Parallel Data and Backlight
Pin Symbol Description
11 DB0 Data bit 0
12 DB1 Data bit 1
13 DB2 Data bit 2
14 DB3 Data bit 3
15 DB4 Data bit 4
16 DB5 Data bit 5
17 DB6 Data bit 6
18 DB7 Data bit 7
21 LEDR Red Backlight Anode
22 ** LEDG Green Backlight Anode
23 LEDB Blue Backlight Anode
24 LEDK Backlight Cathode
**Note: LEDG is anode for single colour backlights
