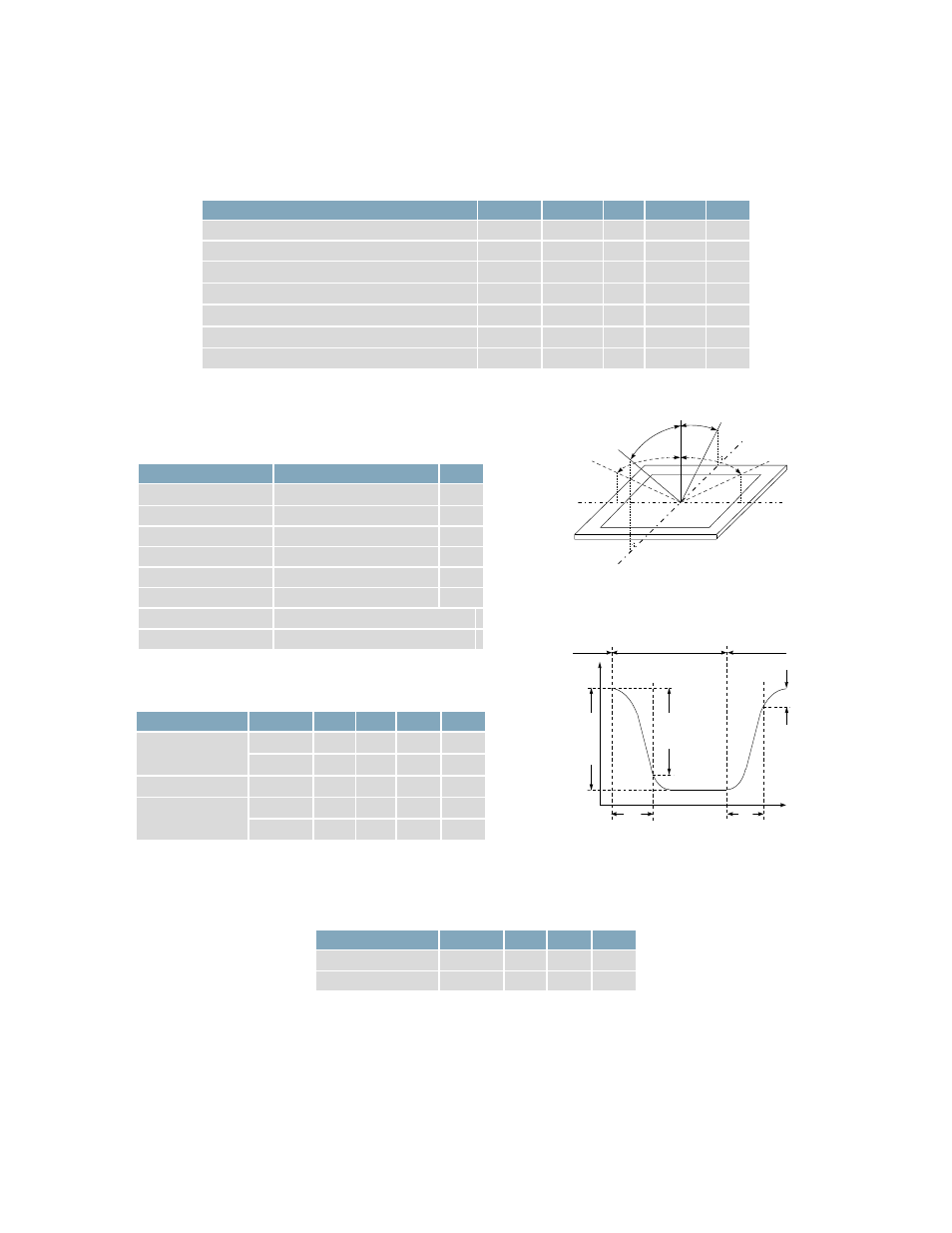

Specifications
Electrical
Table 6: Electrical Characteristics
Item Symbol Min Typ Max Unit
Supply Voltage For Logic V
DD
4.5 5.0 5.5 V
Supply Voltage For LCD (Contrast) V
0
-2.0 -1.5 -1.0 V
Input High Voltage V
IH
0.7 V
DD
－ V
DD
V
Input Low Voltage V
IL
V
SS
－ 0.3 V
DD
V
Supply Current (V
DD
=5V) I
DD
－ 1.0 3.0 mA
Supply Voltage of White Backlight (1 Die) V
LED
2.9 3.1 3.3 V
Supply Current of White Backlight (1 Die) I
LED
0 － 20 mA
Optical
Table 7: Display Characteristics
Item Dimension Unit
Number of Pixels 122 Columns x 32 Rows －
Module dimension 80.0 x 36.0 x 9.0 mm
View area 60.5 x 18.5 mm
Active area 53.64 x 15.64 mm
Dot size 0.45 x 0.45 mm
Dot pitch 0.49 x 0.49 mm
Duty 1/32
View direction 6 o’clock
Figure 4: Viewing Angle Definition
Figure 5: Display Response Time
Table 8: Viewing Characteristics
Item Symbol Min Typ Max Unit
View Angle
(V)θ -20 － 35 deg
(H)φ -30 － 30 deg
Contrast Ratio CR － 3 － －
Response Time
T rise － － 250 ms
T fall － － 250 ms
Environmental
Table 9: Environmental Specifications
Item Symbol Min Max Unit
Operating Temp. Top 0 50 ℃
Storage Temp. Tstr -10 60 ℃
Note: Maximum 90% non-condensing humidity.
θf
φ= 180°
φ= 90°
φ= 0°
φ= 270°
θb
θr
θl
Intensity
90％
100％
Tr
10％
Tf
Non-selected
Conition
Non-selected
Conition
Selected Conition
[positive type]
