6
2 Quick Connect Guide
2.1 Available Headers

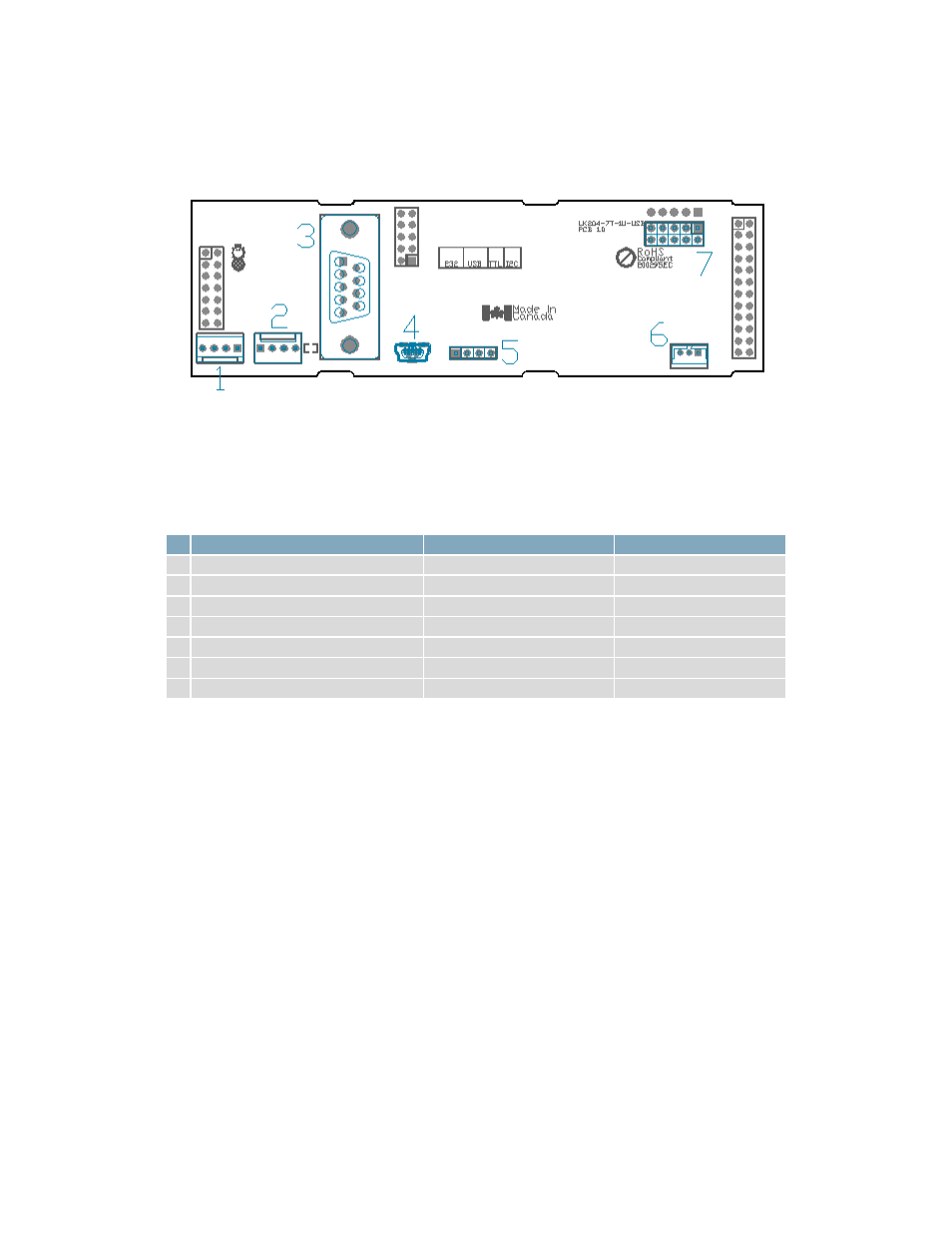

Figure 2: LK204-7T-1U Header Locations
Table 1: List of Available Headers
# Header Mate Population
1 Alternate Power Connector PCS All Models
2 Communication/Power Connector SCCPC5V/BBC Standard Model Only
3 DB9 Serial Header CSS1FT/CSS4FT Standard Model Only
4 Mini USB Connector EXTMUSB3FT/INTMUSB3FT USB Model Only
5 Alternate USB None Offered By Custom Request Only
6 Dallas One-Wire Temperature Probe By Custom Request Only
7 GPO Header None Offered All Models
