12

4 Hardware

4.1 Standard Model

Extended Communication/Power Header

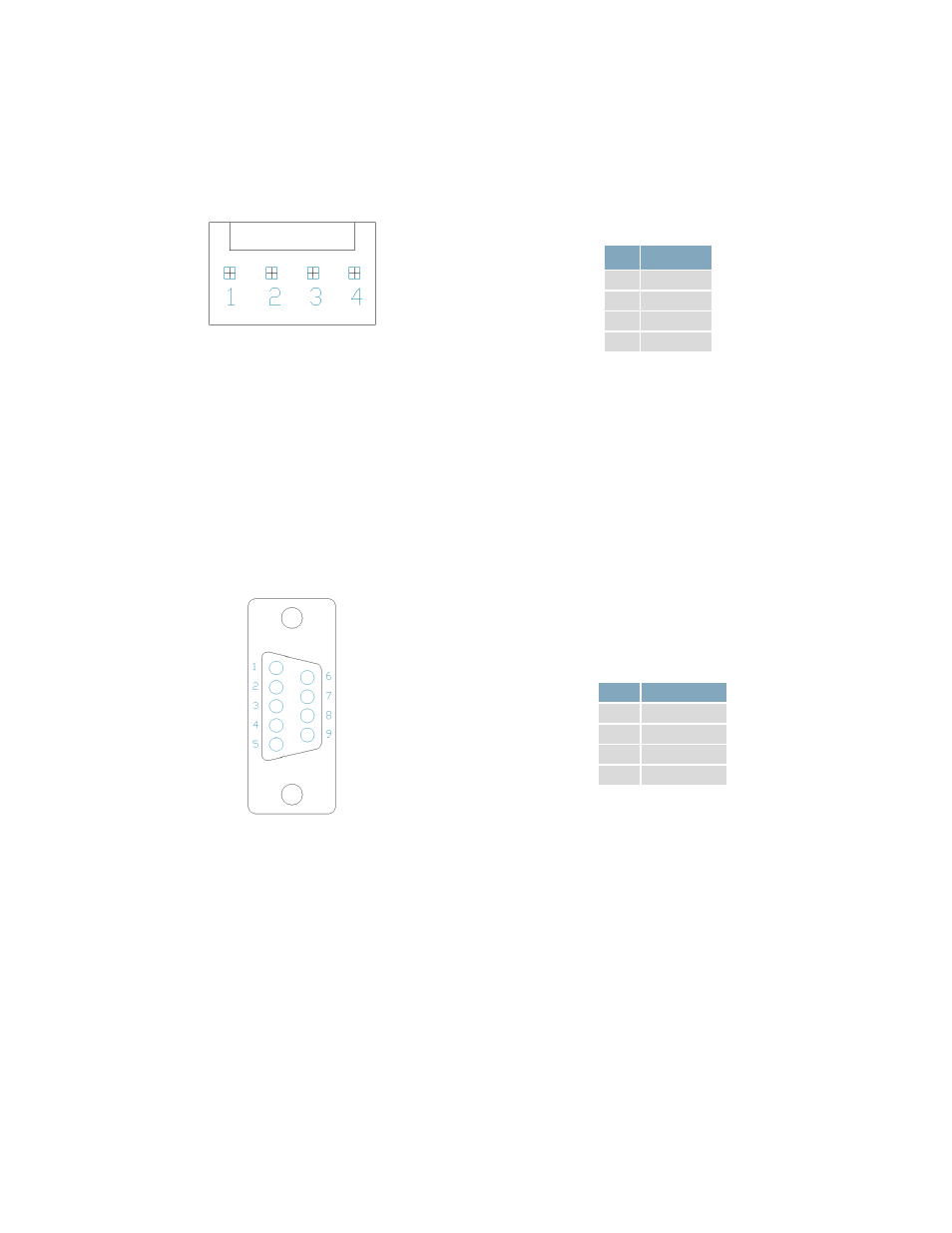

Figure 7: Extended Communication/Power Header

Table 4: Communication/Power Pinout

Pin Function

1

Vcc

2

Rx (SCL)

3

Tx (SDA)

4

Gnd

The Extended Communication/Power Header provides a standard connector for interfacing to the LK204-
7T-1U. Voltage is applied through pins one and four of the four pin Communication/Power Header.
Please ensure the correct voltage input for your display by referencing Voltage Specifications before
connecting power. Pins two and three are reserved for serial transmission, using either the RS-232/TTL
or clocking data through the I²C protocol, depending on what has been selected by the Protocol Select
Jumpers. The versatile Tyco 640456-4-LF style header used can be mated to a number of connectors,
the Molex 22-01-3047 for example.

Serial DB9 Connector

Figure 8: Serial DB9 Connector

Table 5: Serial DB9 Pinout

Pin

Function

2

Tx

3

Rx

5

Gnd

9

NC/Vcc*


The LK204-7T-1U provides a DB-9 Connector to readily interface with serial devices using EIA232
standard signal levels. It is also possible to communicate at TTL levels of 0 to +5V by setting the Protocol
Select Jumpers to TTL. As an added feature it is also possible to apply power through pin 9 of the DB-9
Connector in order to reduce cable clutter. A standard male DB9 header will provide the perfect mate
for this connector.

*Note:

Do not apply voltage through pin 9 of the DB-9 Connector AND through the Communication/Power Header

at the same time.
