9
USB Module

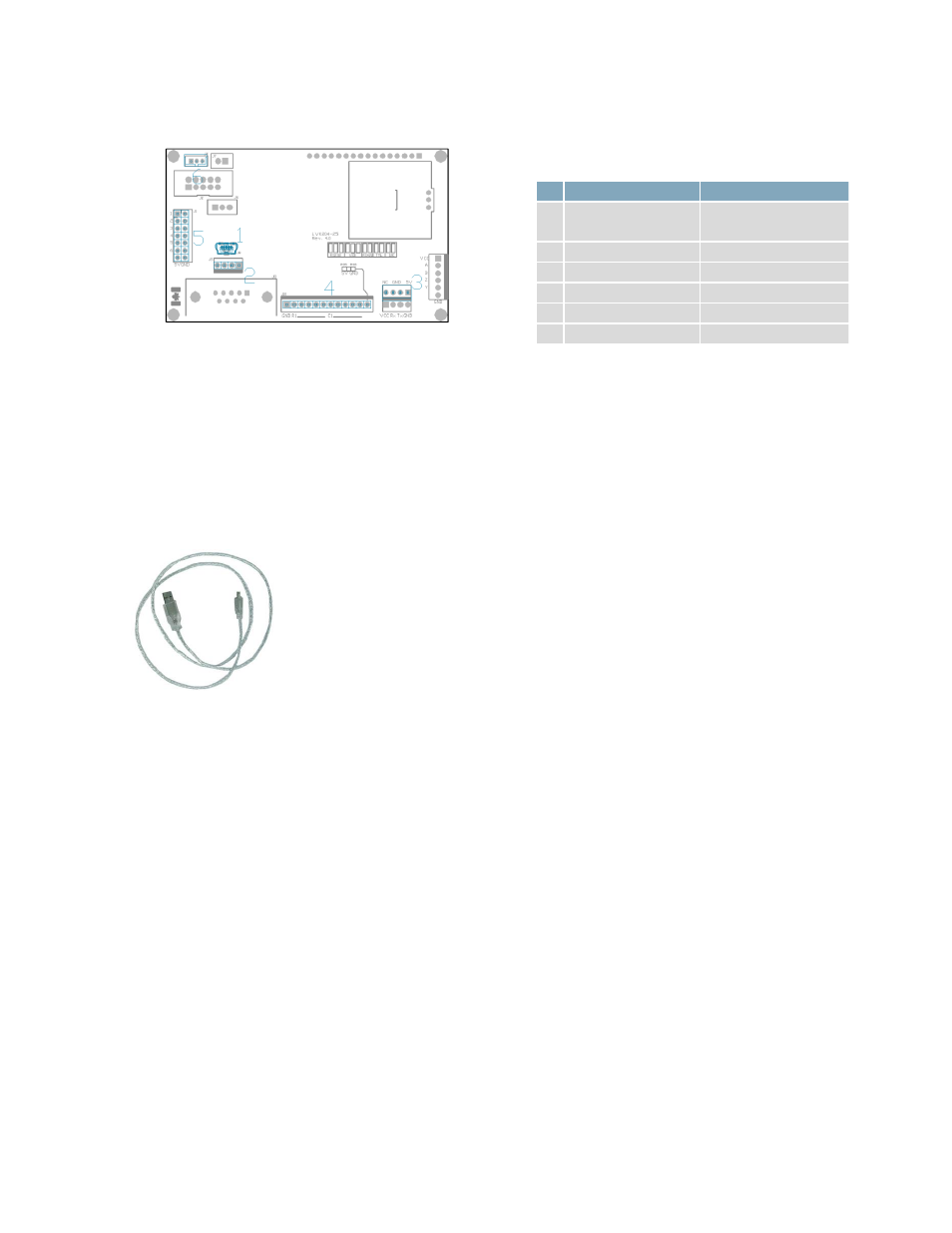

Figure 6: USB Connections
Table 2: Standard Headers
# Header Mate
1 Mini USB
EXTMUSB3FT/
INTMUSB3FT
2 Alternate USB None Offered
3 Alternate Power PCS
4 Keypad KPP4x4
5 GPO None Offered
6 Dallas One-Wire Temperature Probe
The LVK204-25-USB offers a single USB protocol for easy connection to a host computer. The simple and
widely available protocol can be accessed using the on board mini B style USB connector as outlined in
the USB Connections section.
Recommended Parts
Figure 7: External Mini USB
Cable (EXTMUSB3FT)
The External Mini USB cable is recommended for the LVK204-25-USB
display. It will connect to the miniB style header on the unit and provide a
connection to a regular A style USB connector, commonly found on a PC.
