Warning, Connections, 1 connector pinout – Matrix Orbital LK162-12 Legacy User Manual

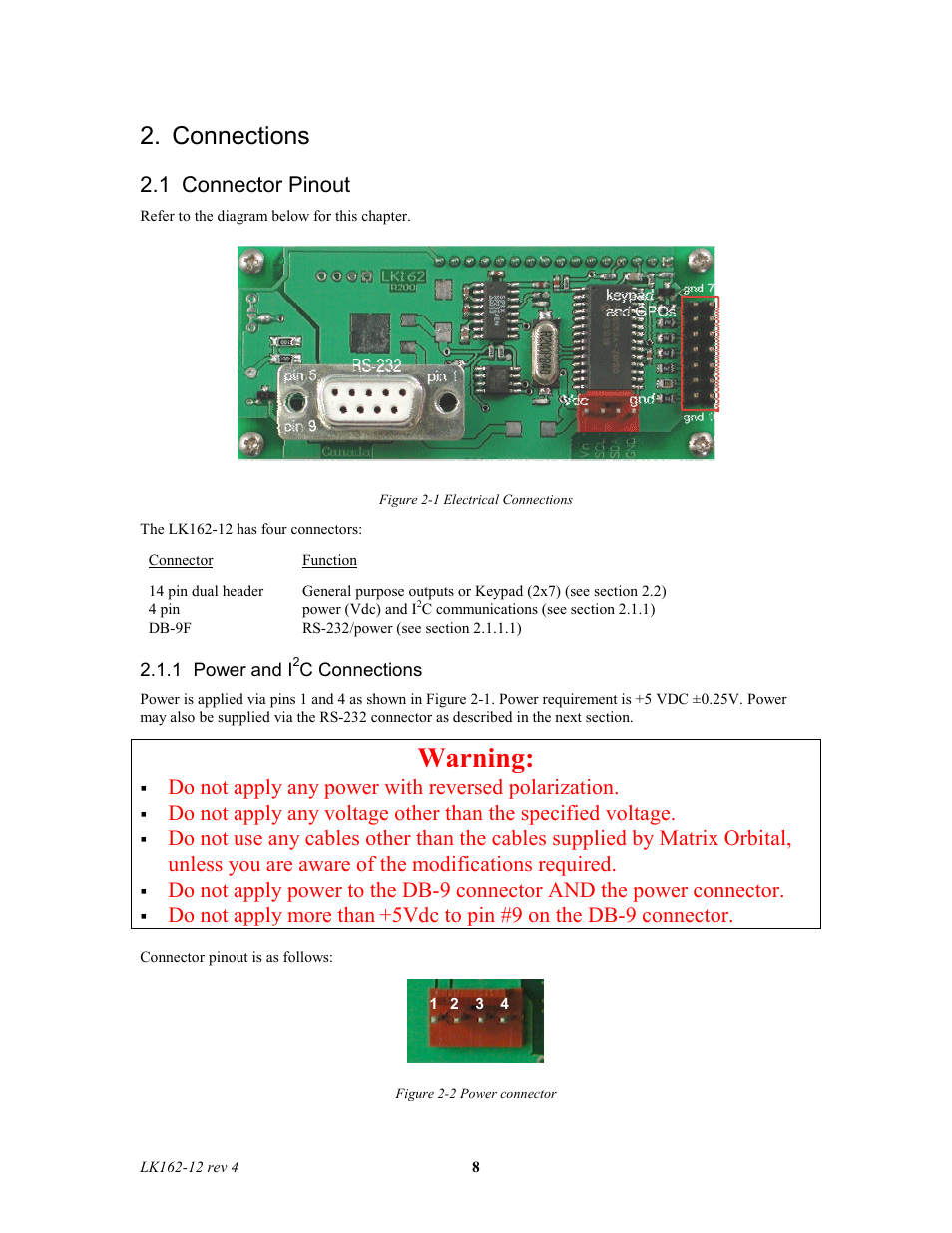

Page 8: Do not apply any power with reversed polarization, Do not apply more than, 5vdc to pin #9 on the db-9 connector
