ALESIS QSR 64 - Manual (Page 97)

Editing Effects: Chapter 7
QSR Reference Manual 9
C
ONFIGURATION
#2: 2 R
EVERBS
FX SEND 1
FX SEND 2
AUX LEFT
AUX RIGHT
MAIN LEFT
MAIN RIGHT
AUX LEFT
AUX RIGHT
MAIN LEFT
MAIN RIGHT
DELAY REVERB
FX SEND 3
AMP
MIX 1
REVERB 1
REVERB 2
DELAY 1 PITCH 1
AMP
PITCH
AMP
PITCH 3
PITCH REVERB
AMP
REVERB 3
FX SEND 4
REVERB 4
AMP
MIX 3
Delay 1 Pitch 1 Reverb 1
Mono delay Mono chorus Plate 1
Stereo chorus Plate 2
Room
Hall
Large
Gate
Reverse
Reverb 2
Level to Reverb 1
Pitch 3 Reverb 3
Mono chorus Plate 1
Plate 2
Room
Hall
Large
Gate
Reverse
Reverb 4
Reverb 4
Level to Reverb 3

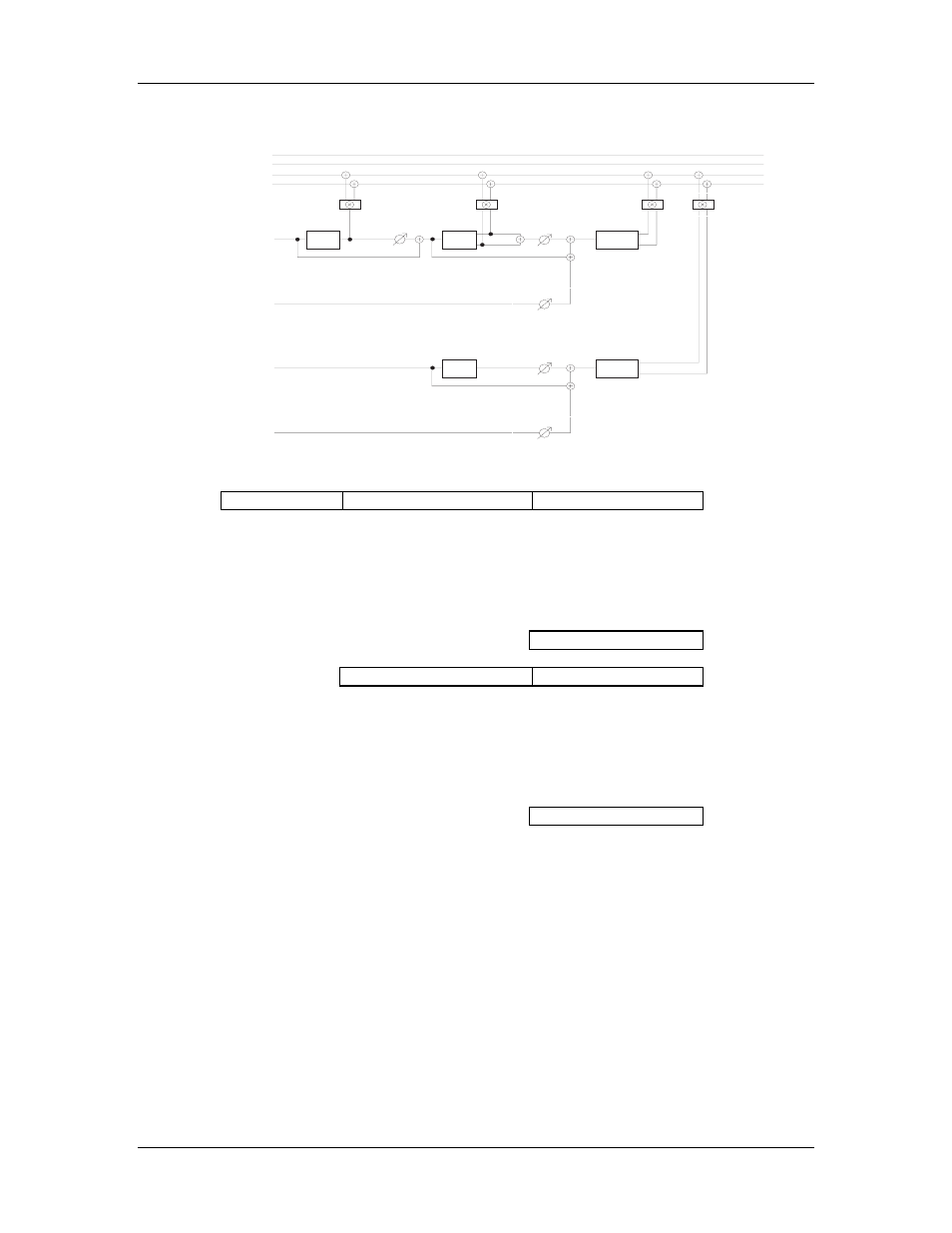

This Configuration differs from Configuration #1 in many ways. In this
Configuration, there is only one Delay effect, two Pitch effects and two Reverb
effects. Effect send 1 is routed through the mono Delay, then a stereo Pitch effect, and
finally a stereo Reverb effect. Send 2 has no effects of its own, but can be routed to
the same Reverb effect as send 1. Send 3 is routed through a mono Pitch effect, and
then a stereo Reverb effect. Send 4 has no effects of its own, but can be routed to the
same Reverb effect as send 3.
Effect send 1’s Delay, Pitch, and Reverb can feed the Mix output directly. Unlike the
first configuration, however, Pitch 3 can be routed to the Mix only after passing
through Reverb 3.
