T H E C O N T I N U O U S P O W E R C O M P A N Y
Page 7
PHYSICAL DESCRIPTION
his section will point out and illustrate the
various indicators, functions and controls of
the DTR(ET) Series UPS. The important
attributes of the DTR(ET) Series unit are
numbered to assist you in locating them on your
machine and also to fully explain its function and
how it relates to system operation.
Numbers on the drawing will correspond to the
operating component’s name at the bottom with a
brief identification. In the next section, a complete
explanation of all numbered items will be enhanced
to ensure you have a full understanding of the
operation of this system.
Visual indicators used on the front panel are long
lasting, very efficient, light emitting diodes (LED).
When operating the push-button switches, always
hold the switch in for at least two seconds to insure
function confirmation. This feature has been
implemented into the system design to avoid
inadvertent operation of any of the user-available
functions.

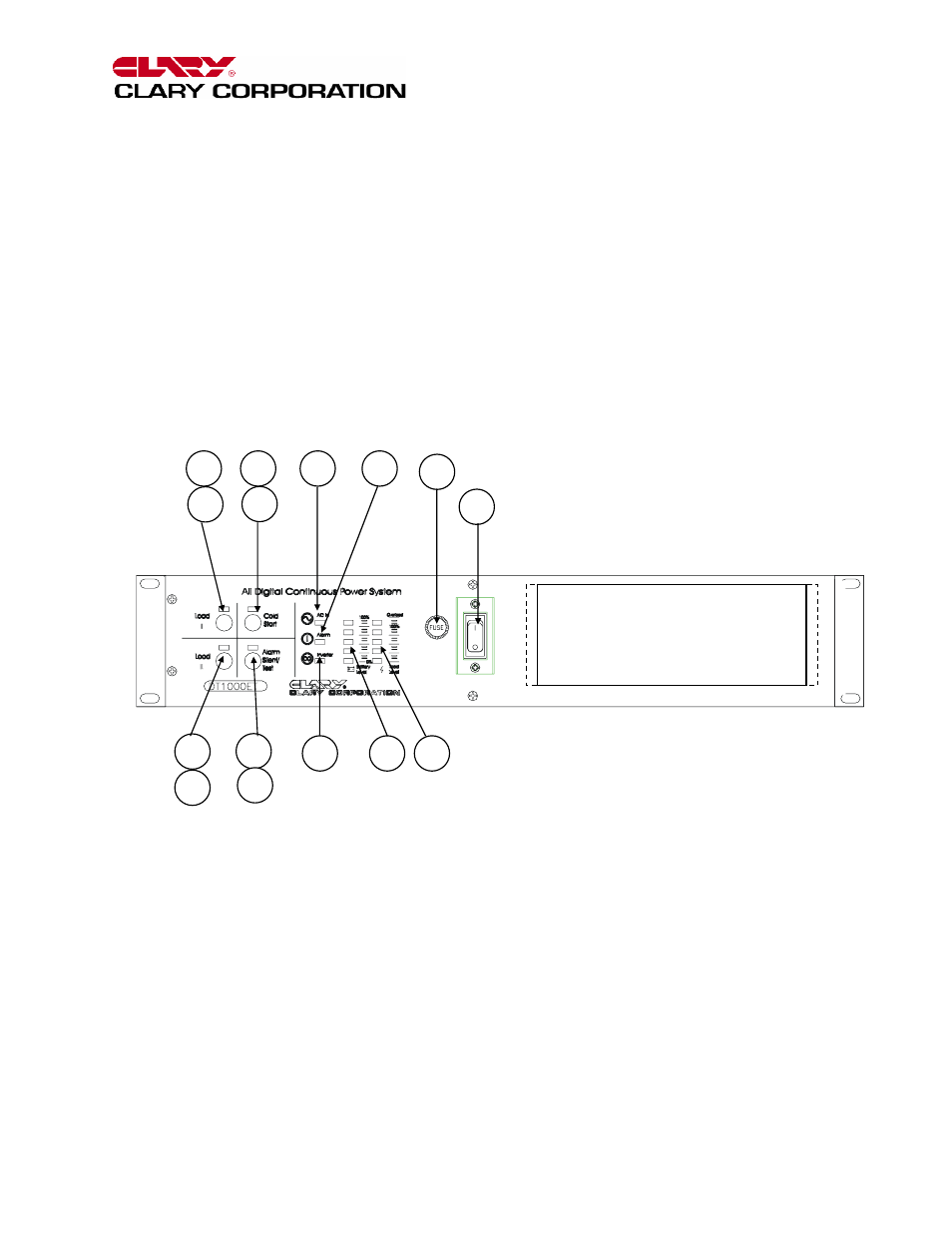

Pictured below is the front view of the model
DT1000R(ET). Plate with items 16 through 21 can
be repositioned to the rear panel. Reference the
figure on the adjacent page.
T
1
8
7
13 9 6 3
4 15
2
12
11
14 10
5
DT1000R(ET) FRONT PANEL VIEW
1 SYSTEM POWER SWITCH 13 Alarm Silent/Test - Dual function switch
2 INPUT AC LINE FUSE 14 ALARM SILENT/TEST ACKNOWLEDGE
3 Inverter - Inverter operating indicator INDICATOR
4 AC In - Input line indicator 15 Alarm - Fault indicator
5 Load Level - Output capacity indicators
6 Battery Level - Charge/discharge indicators
7 Cold Start - DC start switch
8 COLD START ACKNOWLEDGE INDICATOR
9 Load I - Enable switch for output receptacles
10 LOAD I ACKNOWLEDGE INDICATOR
11 Load II - Enable switch for output receptacles
12 LOAD II ACKNOWLEDGE INDICATOR
