DynaPro with USB Connection
DynaPro Overview
The DynaPro is a secure cryptographic device for PIN and data entry. It protects the cardholder data whether it is read
using the MagneSafe™ Secure Card Reader Authenticator (SCRA), contact or contactless smart card reader. It is the
most comprehensive, end-to-end security solution available.

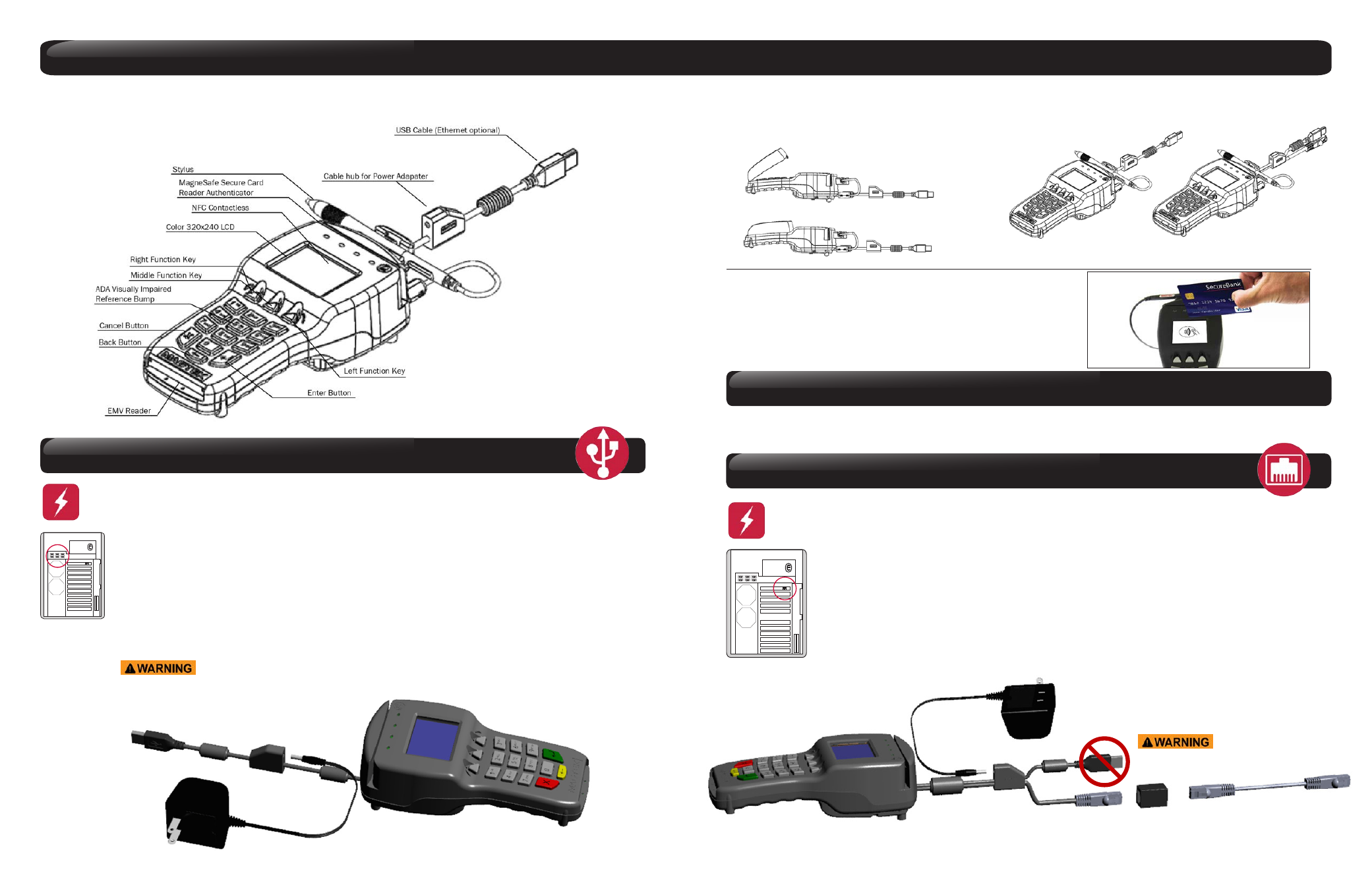

Figure 1.1 Connecting the cable and power supply
(cable not shown at actual size)
PC
Privacy Shield Installation
To install the Privacy Shield place the clips of the open end of the Privacy
Shield into the openings located just above the contact card slot.
Pivot the shield down, locking the three clips into the holes located just
above the function buttons.
During normal operation, the operator will select the type of transaction from the PC application controlling the DynaPro and the cardholder will enter data on
the DynaPro’s keypad in response to prompts on its LCD.
DynaPro Operation
Stylus (optional)
Stylus with USB Stylus with Ethernet
www.magtek.com
DynaPro with Ethernet Connection
Figure 1.1 Connecting the cable and power supply
(cable not shown at actual size)
DO NOT plug in the USB
connection on the device
PC
DynaPro Ethernet Power
The DynaPro with Ethernet connection always requires an external power supply
Connecting the MagTek DynaPro
The DynaPro cable will have a junction box approximately 2 feet from the end of the device’s 6 foot cable.
The cable will contain placement for an AC adapter for power on the junction box and an Ethernet cable.
Plug the AC adapter cable into the AC plug-in on the junction box.
Plug the Ethernet cable into the nearest available network port.
Plug the other end of the AC adapter into the nearest available power outlet.
Verify Connection and Power
Once the AC adapter is plugged in, the DynaPro device will power on. Approximately 30 seconds after power on, “Welcome” will appear
on the display screen once the DynaPro device has initialized. Check with your PC software or payment application provider for specific
DynaPro user functionality and network connectivity validation.
NFC Capabilities
The DynaPro includes an optional contactless card reader.
The card is waved above the LCD.
NOTE: Power Supply
(required for most models )
NOTE: Power Supply
(required for most models )
DynaPro USB Power
The DynaPro with USB connection only requires an external power supply when NFC capabilities are present.
Connecting the MagTek DynaPro
DynaPro USB devices need to be connected to the USB port of the PMS/POS terminal being used. The DynaPro cable will have a junction
box approximately 2 feet from the end of the device’s 6 foot cable. The cable will contain placement for an AC adapter for power on the
junction box. Plug the AC adapter cable into the AC plug-in on the junction box. Plug the other end of the AC adapter into the nearest
available power outlet. Plug the USB end of the cable into the available USB port of the associated PMS/POS terminal being used.
Verify Connection ad Power
Once the AC adapter is plugged in, the DynaPro device will power on. Approximately 30 seconds after power on, “Welcome” will appear on
the display screen once the DynaPro device has initialized. The Windows PC will automatically detect the DynaPro.
If the “Welcome” screen does not appear, please contact support.
Connecting or disconnecting the USB cable from the back side of the DynaPro when the computer is ON may clear the encryption keys.
