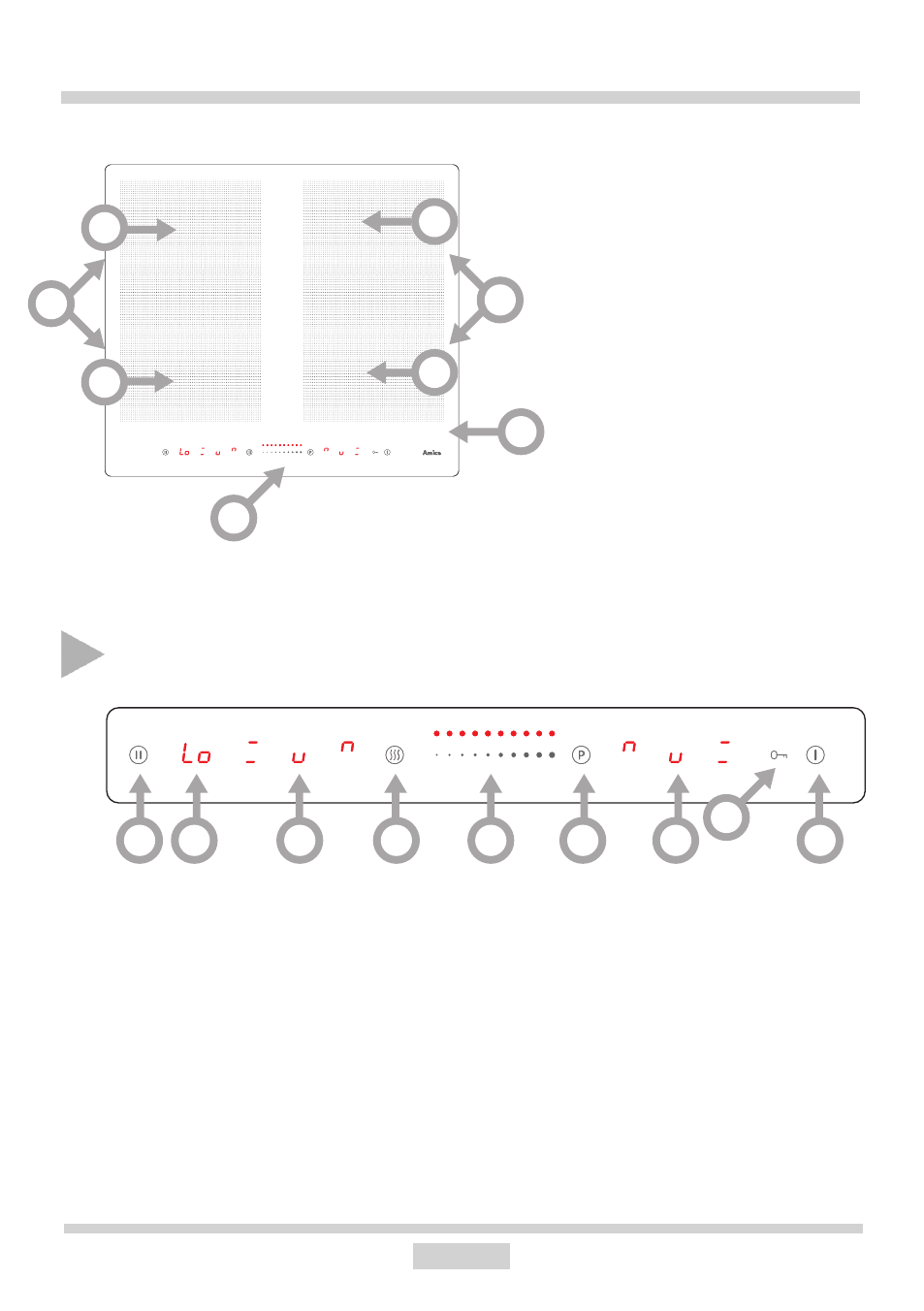

DESCRIPTION OF THE APPLIANCE

Panel Description

Control Panel

1 Rear left cooking zone

2 Front left cooking zone

3 Rear right cooking zone

4 Front right cooking zone

5 Bridge cooking zones (left)

6 Bridge cooking zones (right)

7 Top glass plate

8 Control Panel

1 Slider sensor (heat / time setting)

2 Cooking zone selection sensor

3 Stop'n go function sensor

4 Child lock sensor

5 ON / OFF sensor

6 Keep Food Warm function sensor

7 Booster function sensor

8 Timer and Kitchen Timer sensor
