22.25

TOP VIEW

25.50

24

12.25

FRONT VIEW

9.75

7.5

MOUNTING PATTERN

SIDE VIEW

11.25

8.75

.50

.50

6.175

.375

(3) PLCS

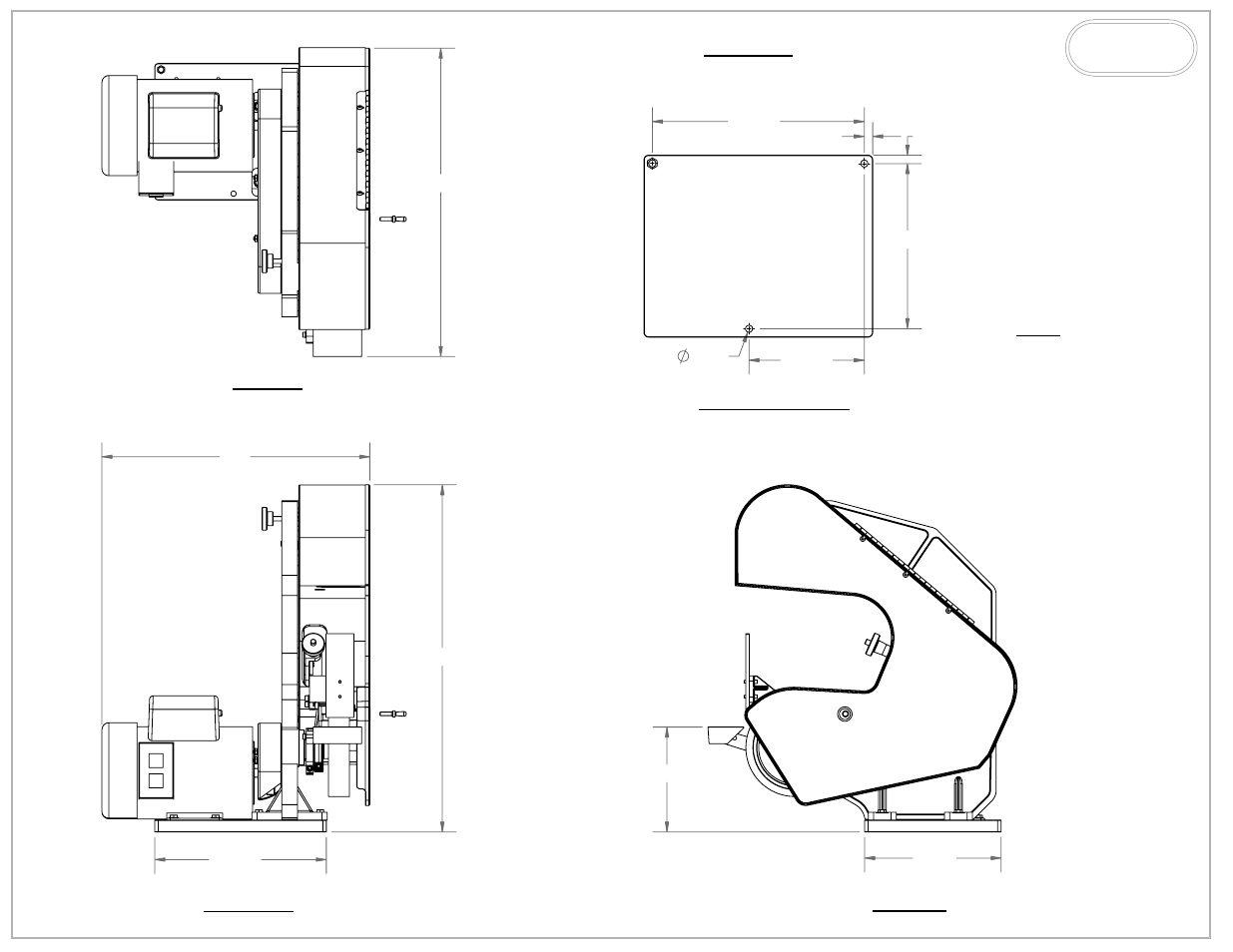

M760

LINE DRAWING

NOTE:

- ALL DIMENSIONS

ARE IN INCHES

BURR KING

1220 TAMARA LANE

WARSAW, MO. 65355
