18 ASUS P4T User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
Motherboard Feature Settings
The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s posi-
tion. The example below shows all the switches in the OFF position.

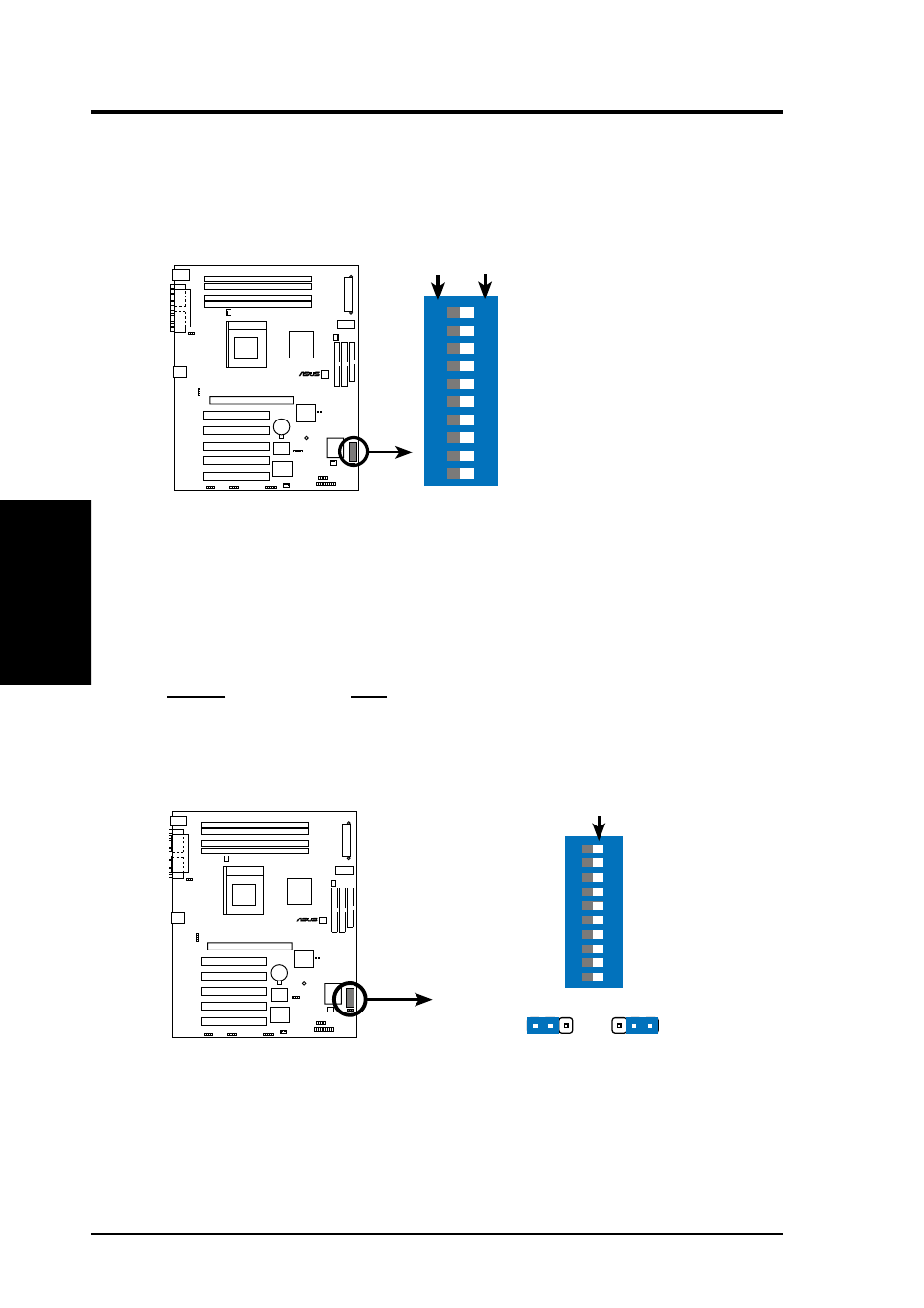

P4T DIP Switches
P4T
®
1. Frequency Multiple
2. Frequency Multiple
3. Frequency Multiple
4. Frequency Multiple
5. Reserved
6. Frequency Selection
7. Frequency Selection
8. Frequency Selection
9. Frequency Selection
10. Frequency Selection
OFF
ON 123456789
1
0
ON
SW1
1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
NOTE: In JumperFree™ mode, all dip switches must be set to OFF.
Setting JEN
Disable (Jumper) [1-2]
Enable (JumperFree) [2-3] (default)
P4T JumperFree™ Mode Setting
P4T
®
Jumper JumperFree
1 2 2 3
JEN
OFF
ON 123456789
1
0
SW1
