Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)

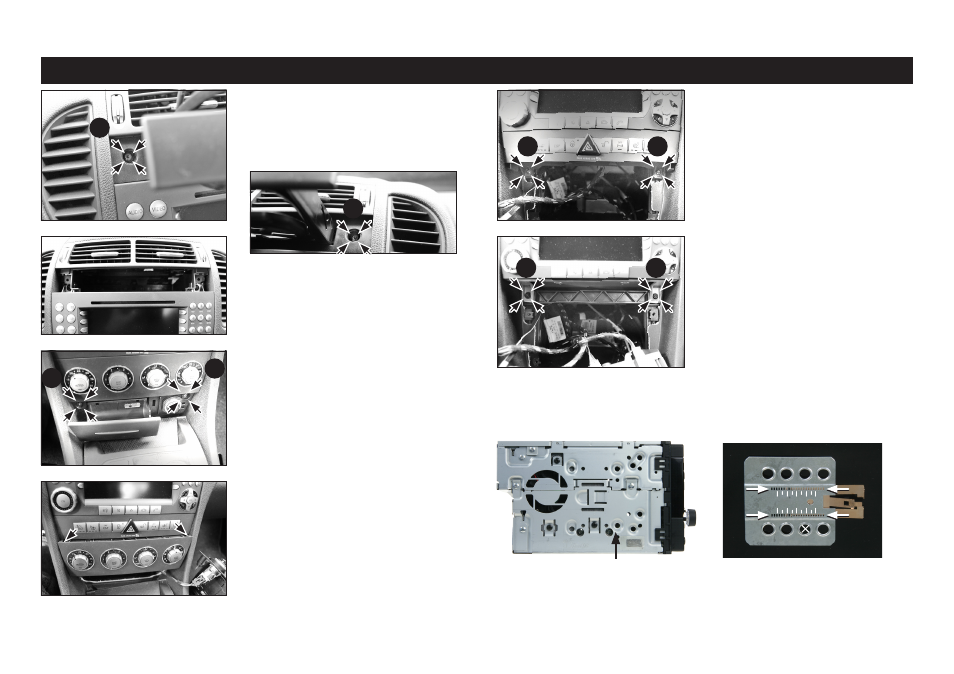

Installation Manual Double DIN Kit 2190-24-RT
3. Open the ash tray
Remove screw (a) on the left.
Remove the cover surrounding the
cigarette lighter.
Remove screw (b) on the right.
Remove the complete ash tray unit.
5. Remove screws (a) and (b), then
take out switch panel.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1. Open the cup holder above the
OEM head unit. Remove screws
(a) and (b). (The screws are covered
with rubber caps)
6. Remove screws (a) and (b)
Remove OEM head unit.
2. Remove the cup holder unit.
4. Remove climate control unit
