Kenwood CAW2170-06 User Manual
Kenwood Radio

2
1
4
3

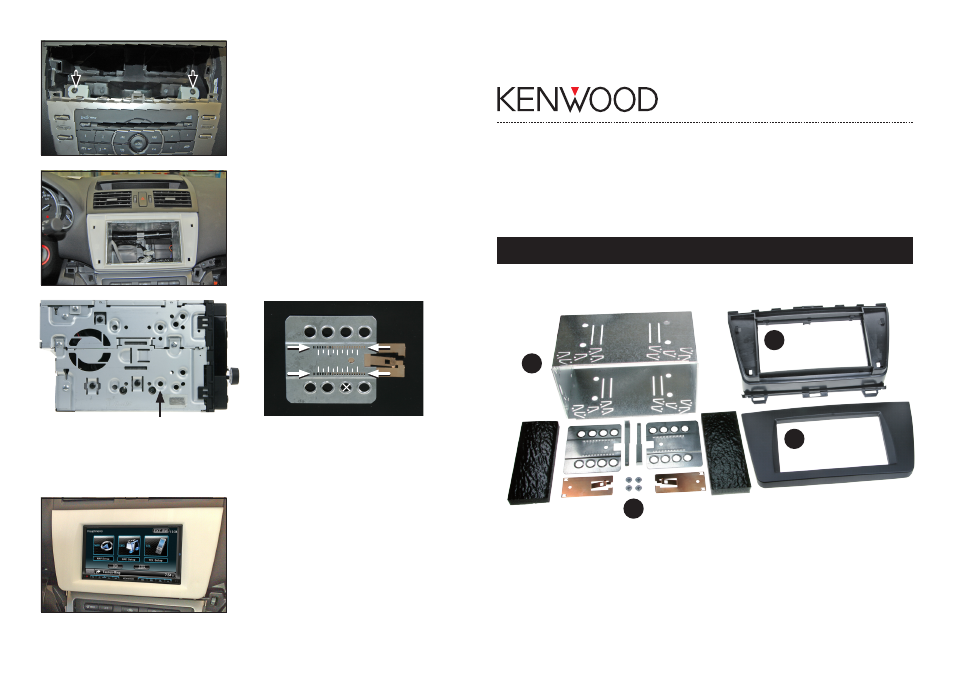

8. Remove the 2 screws at the top of
the OEM head unit.
Remove the OEM head unit.
9. Place the mounting frame at the
dashboard. Push the metal frame
into the mounting frame. Fix the
mounting frame
10. Connect all required circuit points
and push the double DIN head
unit in the metal frame until it
snaps in. Place the facia plate on
the mounting frame.
Reinstall everything in reverse
order to finish installation
© 05/2009 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with these Kenwood double DIN devices
Kenwood Navigation
• Mazda 6 (Type GH) 2008->
Double DIN Kit contents
• (1) Metal Frame
• (2) Mounting Frame
Installation Kit (3)
Facia Plate (4)
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
Rubber-Touch: CAW 2170-06-RT
Mount the metal brackets with
the double DIN head unit
The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
