Kenwood CAW1270-01 - Manual

2-DIN CAW-1270-01

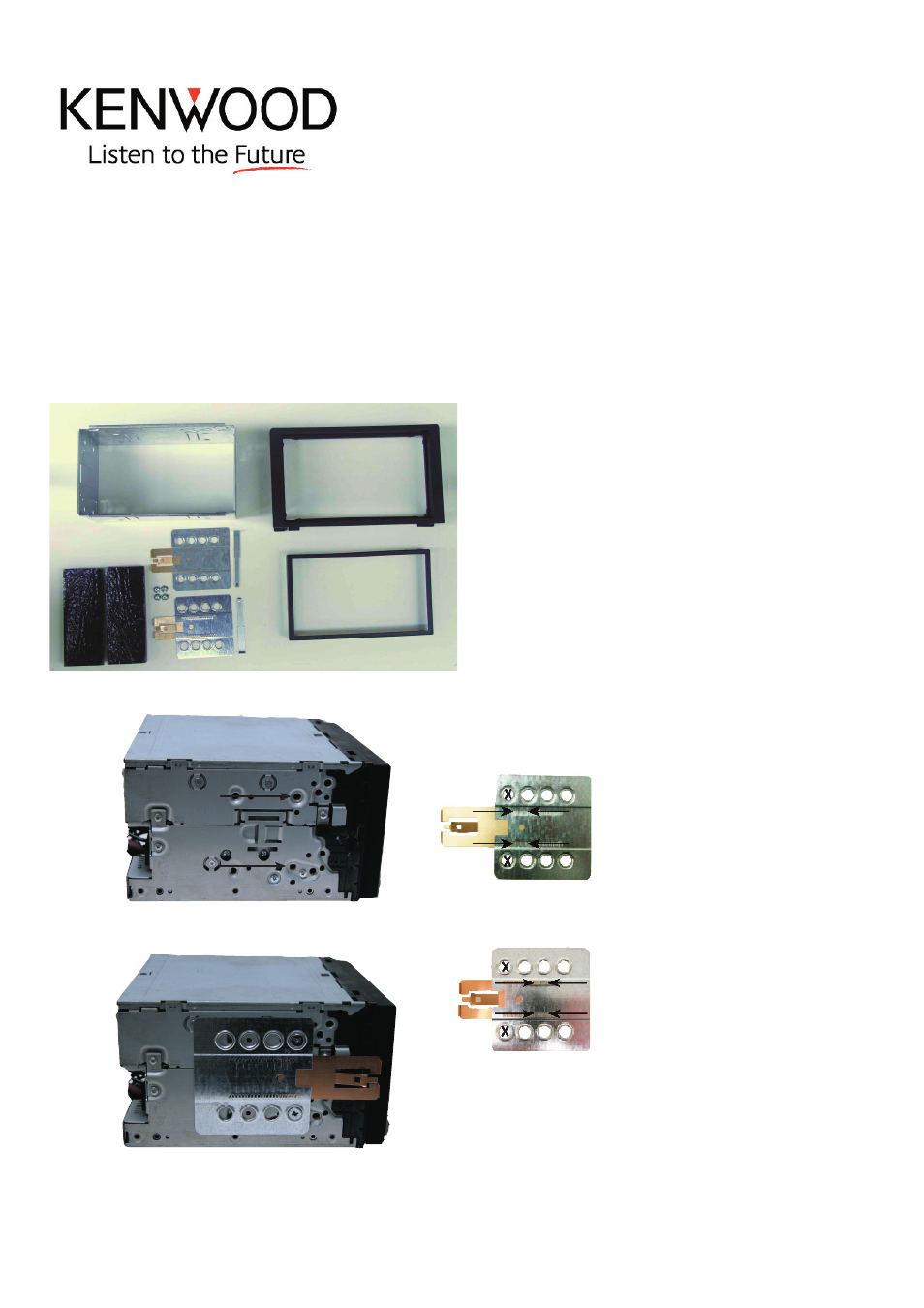

Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
Installation manual for:
Saab 9.3 09 - 2006 -->
* Mount the plates.
Use this hole
Use this hole
Kenwood DDX6029
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 6 & 8 marked with an arrow.
Measured from left to right.
Kenwood DDX 7025
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow
Measured from left to right.
