Plastic Clips

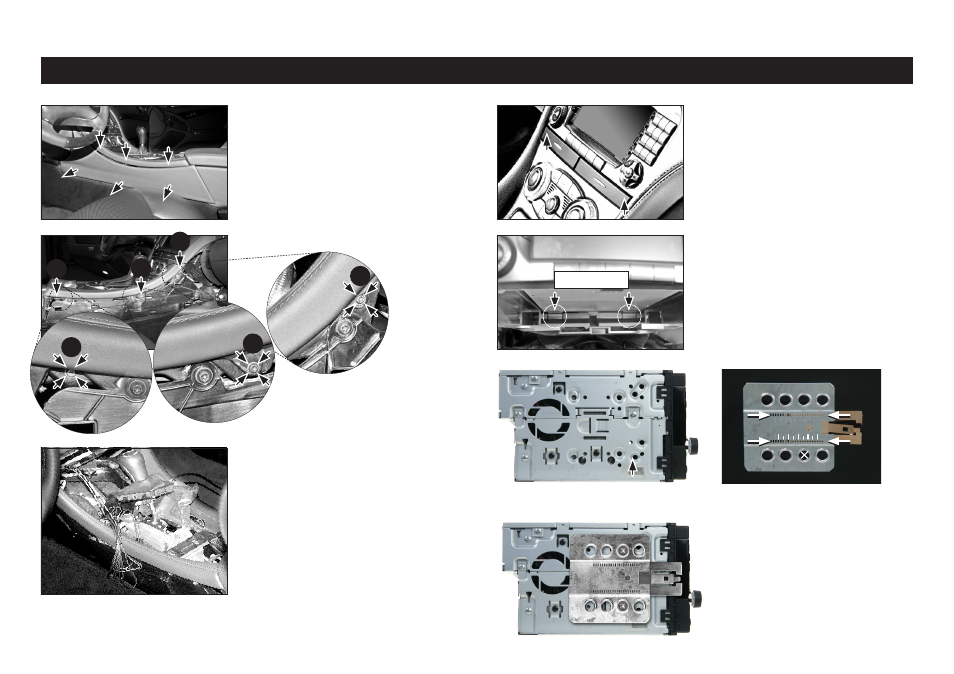

Installation Manual Double DIN Kit 2190-25-RT
3. Remove the middle part of the
centre console.
Disconnect all plugs.
4. Open both cup holders.
Remove the 2 Torx TX20 screws
(which become visible after
removing the centre console)
Remove the cup holders.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1. Remove the side panels at each
side by pulling them towards
your direction.
5. Press the 2 plastic clips (see arrows)
located under the OEM-Radio.
Remove the OEM-Radio.
2. Remove the 6 Torx (TX20) screws.
(3 screws (a) (b) (c) on each side)
Mount the metal brackets with
the double DIN head unit
The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
