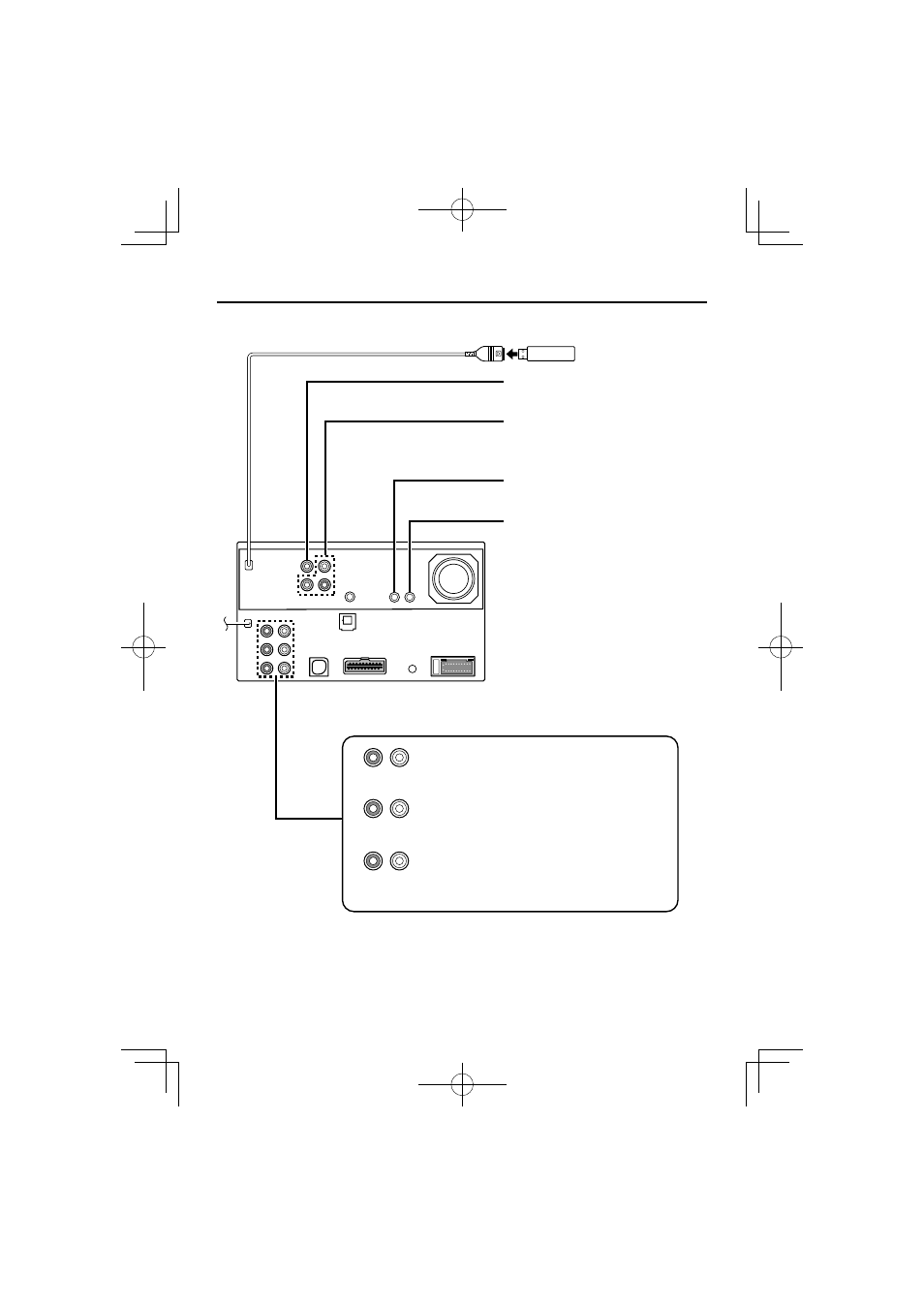

System Connection
Front Preout
• Audio left output (White)
• Audio right output (Red)
Rear Preout
• Audio left output (White)
• Audio right output (Red)
Subwoofer Preout
• Audio left output (White)
• Audio right output (Red)
Rear View Camera input
• Visual input (Yellow)
Audio/Visual output
• Visual output (Yellow)
• Audio left output (White)
• Audio right output (Red)
USB device
(commercially available)
Visual input (iPod/AV input 2 switchable)
Resistance-free mini plug (3.5φ)
Audio input (iPod/AV input 2 switchable)
Resistance-free stereo type mini plug (3.5φ)
USB terminal
