DNX7240BT/DDX6054

Installation Procedure

..........1

DNX7240BT only

..........1

..........2

..........1

DNX7240BT only

..........1

DNX7240BT only

..........1

DNX7240BT only

..........1

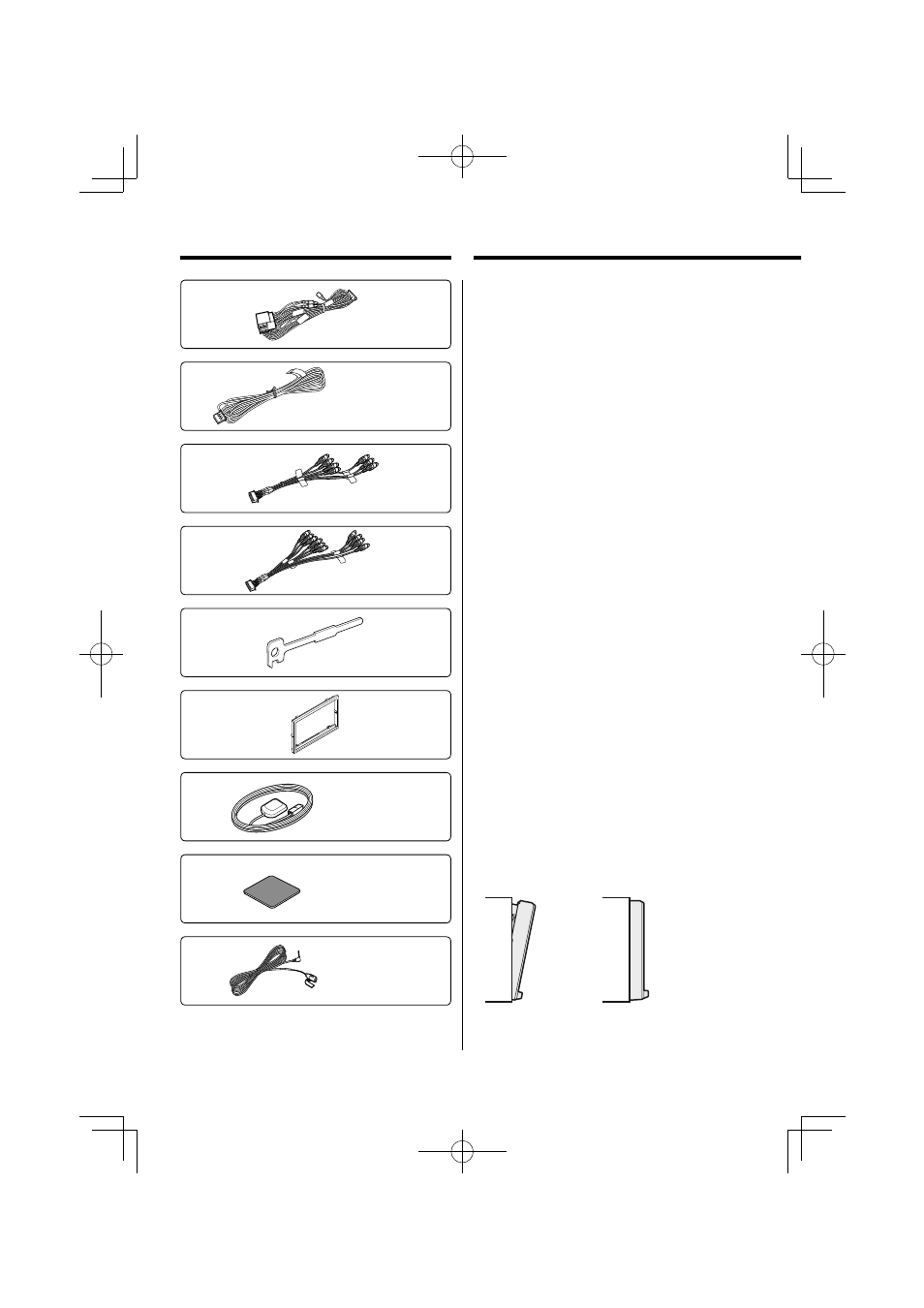

Accessories

1. To prevent short circuits, remove the key from the

ignition and disconnect the

- terminal of the

battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the wire on the wiring harness.
4. Take Connector B on the wiring harness and

connect it to the speaker connector in your vehicle.

5. Take Connector A on the wiring harness and

connect it to the external power connector on your
vehicle.

6. Connect the wiring harness connector to the unit.
7. Install the unit in your car.
8. Reconnect the

- terminal of the battery.

9. Press the reset button.

2WARNING

• If you connect the ignition wire (red) and the battery wire

(yellow) to the car chassis (ground), you may cause a short
circuit, that in turn may start a fire. Always connect those
wires to the power source running through the fuse box.

Acquiring GPS Signals

The first time you turn on the DNX models, you must
wait while the system acquires satellite signals for
the first time. This process could take up to several
minutes. Make sure your vehicle is outdoors in an
open area away from tall buildings and trees for
fastest acquisition. After the system acquires satellites
for the first time, it will acquire satellites quickly each
time thereafter.

About the Front Panel

When removing the product from the box or installing
it, the front panel may be positioned at the angle
shown in (Fig. 1). This is due to the characteristics of a
mechanism the product is equipped with.
If the program that is activated when the product is
first powered on works properly, the front panel will
automatically move into the position (initial setting
angle) shown in (Fig. 2).

(Fig. 1)

(Fig. 2)
