10

|

DNX7240BT/DDX6054

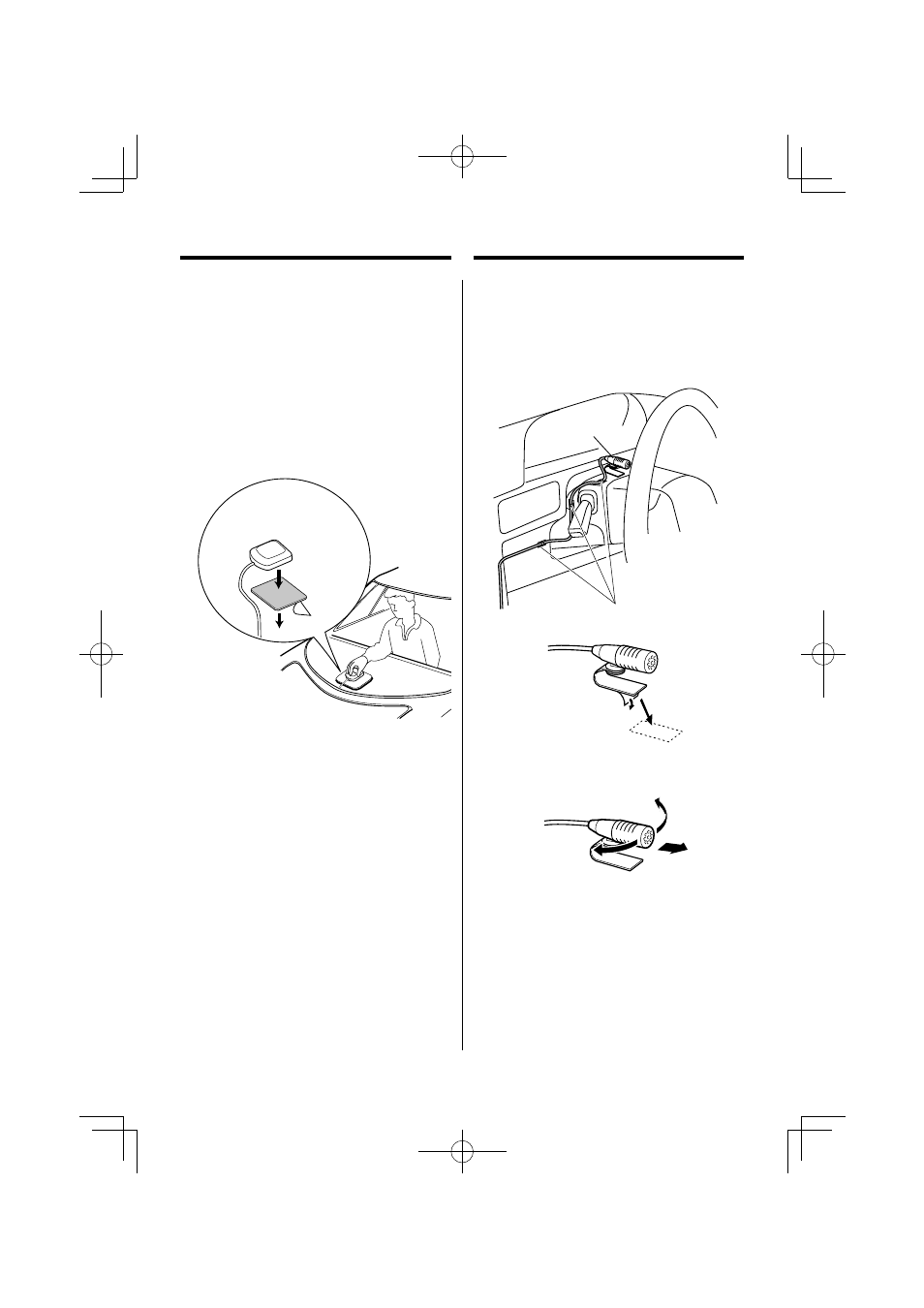

Installing the GPS Antenna
(DNX7240BT only)

GPS antenna is installed inside of the car. It should

be installed as horizontally as possible to allow easy

reception of the GPS satellite signals.
To mount the GPS antenna inside your vehicle:
1. Clean your dashboard or other surface.
2. Peel the backing off of the adhesive on the bottom

of the metal plate (accessory 8).

3. Press the metal plate (accessory 8) down firmly on

your dashboard or other mounting surface. You can

bend the metal plate (accessory 8) to conform to

a curved surface, if necessary.

4. Place the GPS antenna (accessory 7) on top of the

metal plate (accessory 8).

Accessory 7

Accessory 8

¤

• Depending on the type of car, reception of the GPS satellite

signals might not be possible with an inside installation.

• The GPS antenna should be installed at a position that is

spaced at least 12 inch (30 cm) from cellular phone or other

transmitting antennas. Signals from the GPS satellite may be

interfered with by these types of communication.

• Painting the GPS antenna with (metallic) paint may cause a

drop in performance.

1. Check the installation position of the microphone

(accessory 9).

2. Remove oil and other dirt from the installation

surface.

3. Install the microphone.
4. Wire the microphone cable up to the unit with it

secured at several positions using tape or the like.

Fix a cable with a commercial

item of tape.

Peel the release coated paper of double-face adhesive tape

to fix on the place shown above.

Adjust the direction of the microphone to the driver.

Accessory 9

Installing the Microphone Unit
(DNX7240BT only)

Install the microphone as far as possible

from the cell-phone.
