Audiovox Prestige Car Stereo System - Manual (Page 4)

-3-
Form No.128-5091A

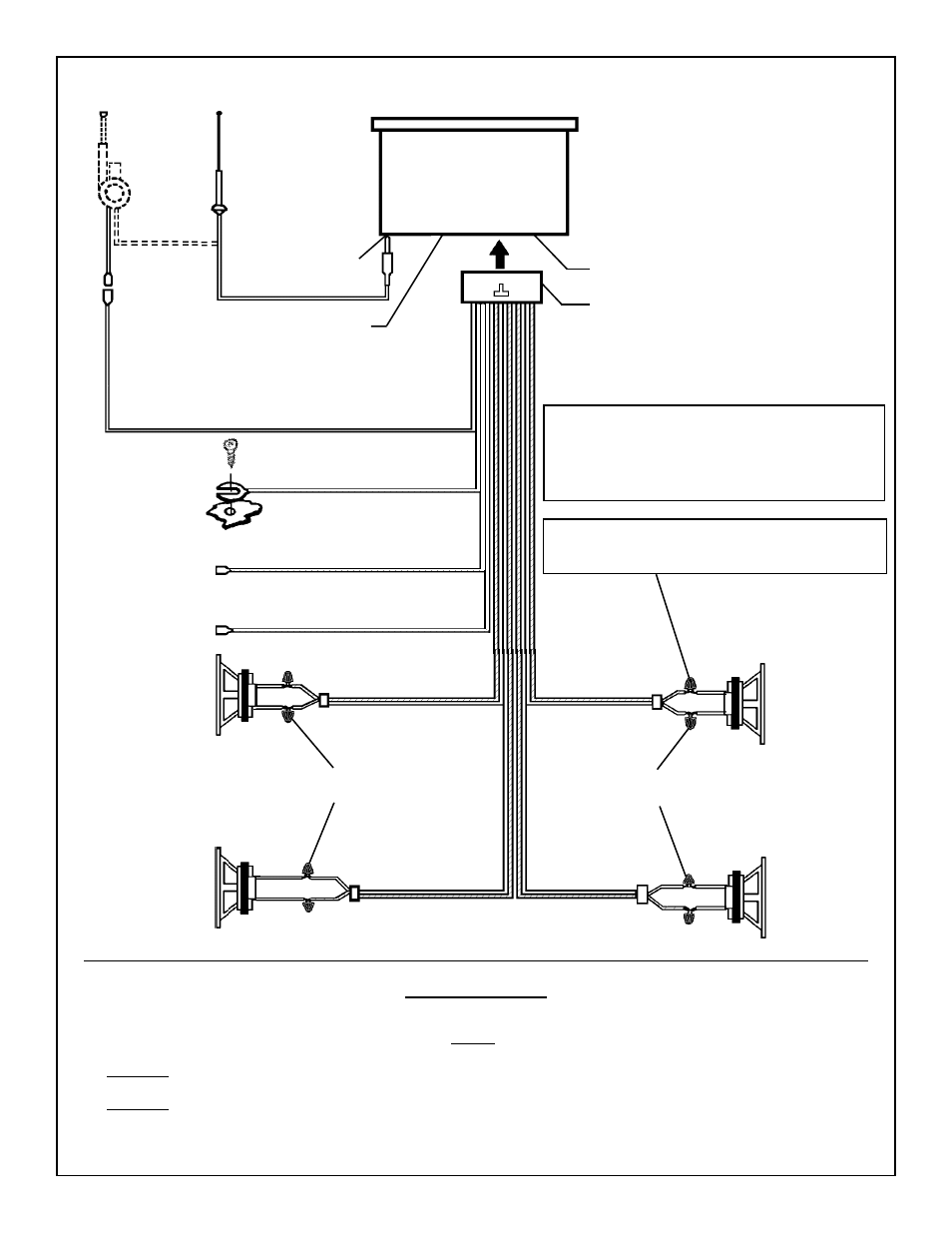

WIRING DIAGRAM P O W E R
A N T E N N A
M A S T
A N T E N N A
R A D I O
ANTENNA SOCKET
ON REAR OF RADIO
BLUE (POWER ANTENNA LEAD)
BLACK (GROUND)
TO GROUNDED
METAL PART OF CAR
(REMOVE ANY PAINT)
TO CONSTANT
+12 VOLT SOURCE
TO SWITCHED
+12 VOLT SOURCE
RIGHT FRONT
S P E A K E R
4 - 8 OHMS
USE WIRE NUTS OR SOLDER
AND TAPE ALL SPLICES
CAUTION : NEGATIVE WIRES (-) MUST CONNECT AS
SHOWN. NEVER GROUND THE NEGATIVE WIRES
FROM SPEAKERS TO METAL PART OF CAR.
RIGHT REAR
S P E A K E R
4 - 8 OHMS
LEFT FRONT
S P E A K E R
4 - 8 OHMS
LEFT REAR
S P E A K E R
4 - 8 OHMS
THE AMPLIFIERS IN THIS RADIO ARE ONLY DESIGNED FOR USE WITH 4 SPEAKERS.
NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS.
NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO THE RADIO.
MATING 16-PIN SOCKET
BLUE WIRE CAN BE USED TO R E M O T E L Y
A C T I V A T E AN AUTOMATIC POWER ANTENNA
OR TURN ON AN OPTIONAL EXTERNAL AMPLIFIER.
REFER TO ANTENNA OR AMPLIFIER INSTALLATION
I N S T R U C T I O N S .
16-PIN PLUG
RED (ACC. +12V.)
4 SPEAKER
S Y S T E M S
m
m
m
m
m
m
m
m
YELLOW (BATTERY +12V.)
LOW-LEVEL RCA OUTPUTS
CONNECT TO OPTIONAL
EXTERNAL AMPLIFIER(S)
RED = RIGHT CHANNEL (REAR)
WHITE = LEFT CHANNEL (REAR)
CAUTION !
l
l
l
l
GREEN w/BLACK
S T R I P E
G R E E N
-
+
-
+
W H I T E
WHITE w/BLACK
S T R I P E
G R A Y
-
+
VIOLET w/BLACK
STRIPE
V I O L E T
GRAY w/BLACK
S T R I P E
+
-
USE WIRE NUTS OR SOLDER
AND TAPE ALL SPLICES
