PERFORATED STRAP
FASTEN THIS END TO
SCREW STUD ON
REAR OF CHASSIS
NUT (5MM)
SCREW (5MM)
SCREW STUD
R A D I O
NUT (5MM)
FASTEN THIS END TO SECURE PART OF DASHBOARD.
DRILL HOLE IF NECESSARY.
MOUNTING SLEEVE
-2-
BEND BOTTOM TABS
D O W N W A R D

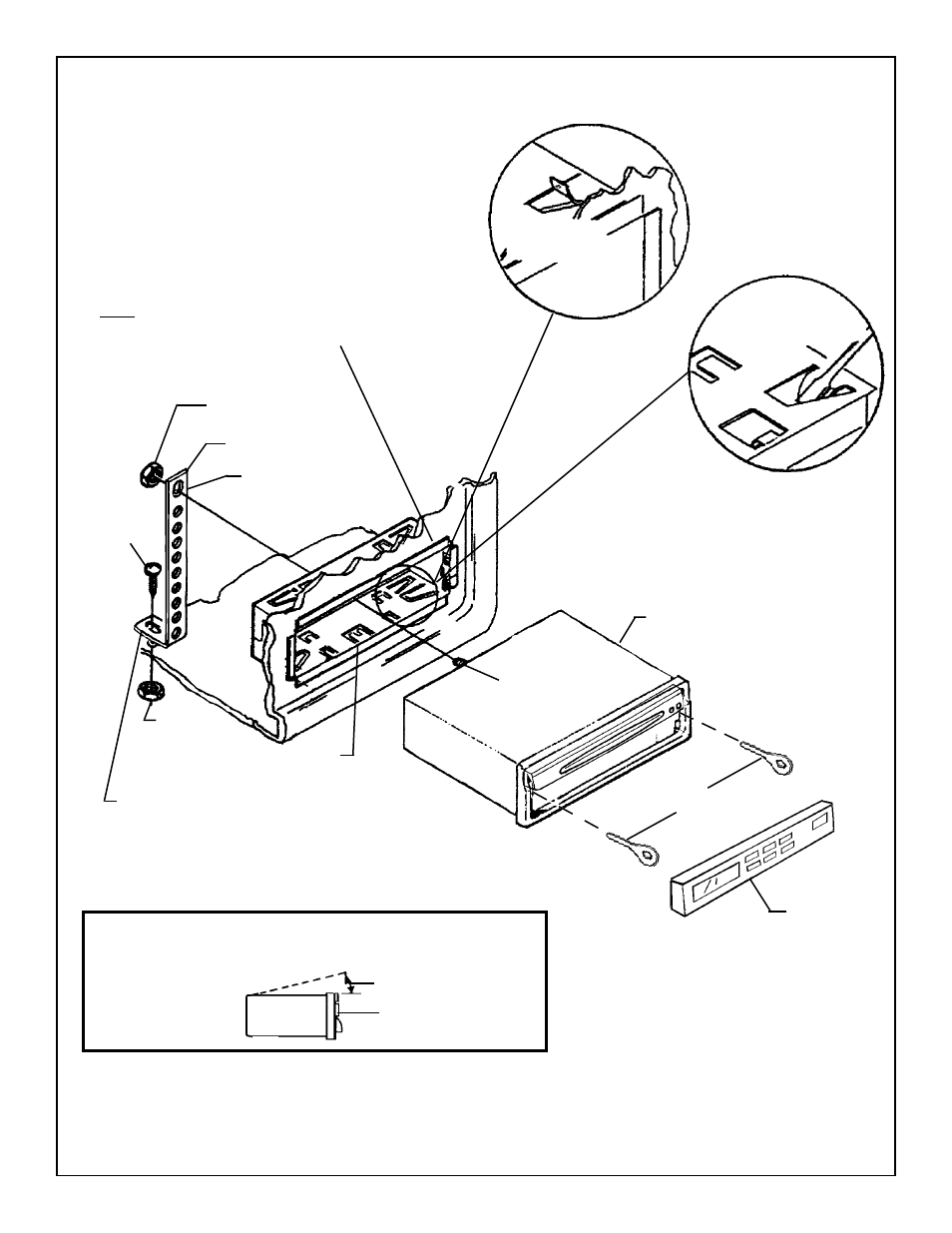

UNIVERSAL INSTALLATION USING MOUNTING SLEEVE
BEND TOP
TABS UPWARD
Form No.128-5091A
REMOVAL TOOLS
D E T A C H A B L E
FRONT PANEL
CAUTION:
FOR PROPER OPERATION OF THE CD PLAYER, THE CHASSIS MUST BE
MOUNTED WITHIN 20° OF HORIZONTAL. MAKE SURE THE UNIT IS MOUNTED
WITHIN THIS LIMITATION.
SIDE VIEW
O F
C H A S S I S
20° MAX.
FRONT PANEL
EXISTING DASH OPENING
FILE EDGES TO FIT IF NECESSARY - DO NOT OVERFILE
NOTE: IF DASH IS SOLID, USE REAR SIDE (WITHOUT THE LIP)
OF MOUNTING SLEEVE AS A TEMPLATE & CUT OPENING
