To connect the exhaust duct to a
ventilation outlet, follow the steps below:
1. Connect the exhaust duct to a ventilation
exhaust fitting or to a discharge through
the wall.
2. Secure the duct joint to the outlet stub on
the machine.
3. Run the duct with as few bends as possible
to the point of discharge.

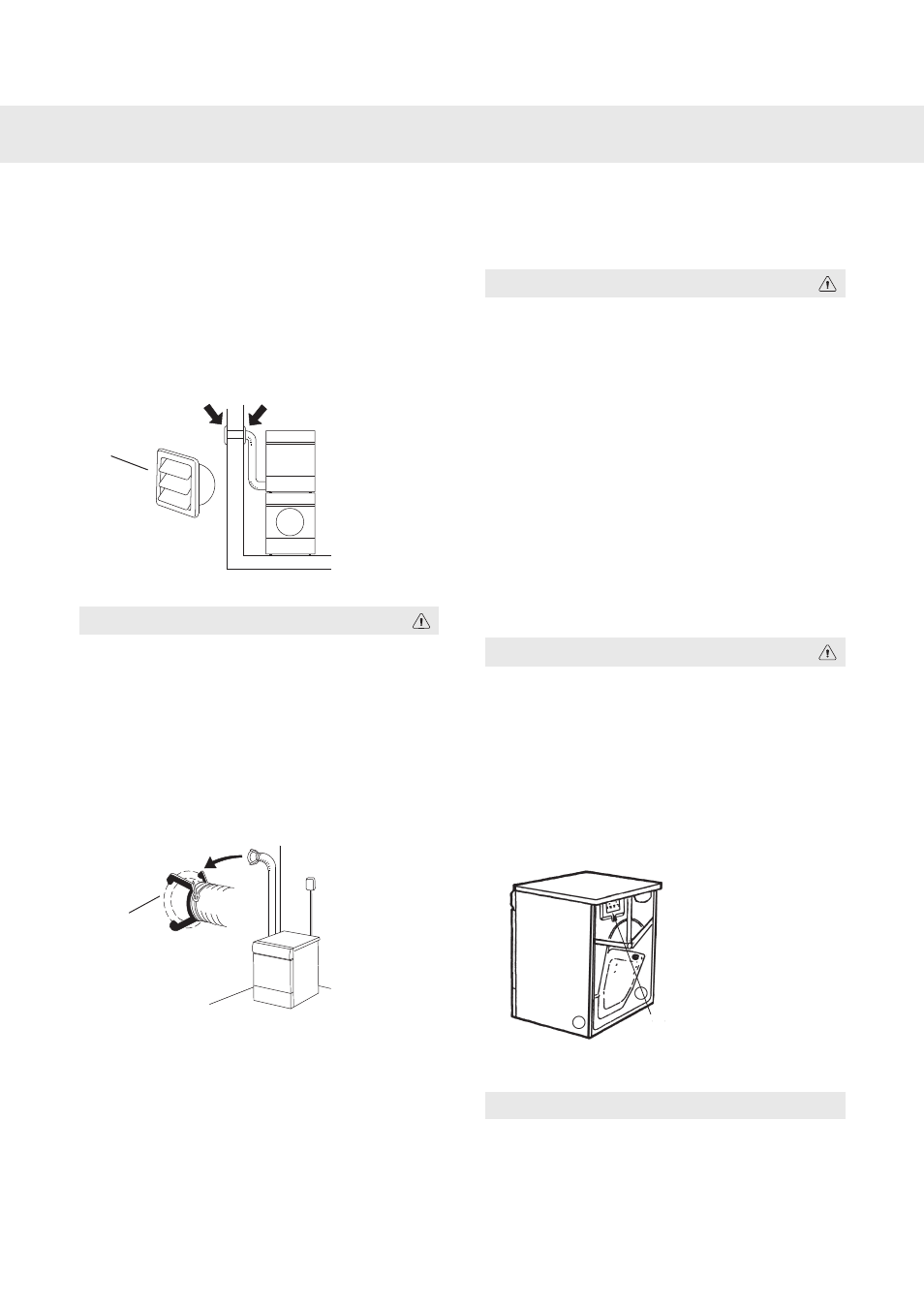

Ventilation grill
Make sure nothing is
blocking the ventill
Warning!
This appliance should not be exhausted into
a chimney, a wall, a ceiling, or a concealed
space of a building. Only a metal ventilation
grill should be used. If the duct is taken to a
wall outlet, a ventilation grill should be fitted
to prevent reverse flow of cold air. Fit the
ventilation grill to the outside or inside of the
wall.
If there is only one vent
duct from the room, a
vent spacer must be fitted.
Vent spacer
Electrical installation
The machine should only be connected to a
grounded wall socket.
Warning!
This appliance must be properly grounded.
Refer to the “Important Safety Instructions”
for grounding instructions.
The power supply cord must be grounded. If
the machine is to be used in a wet area, the
supply must be protected by a residual current
device.
Connection to a permanently wired supply
point must be made only by a qualified electri-
cian.
As supplied:
Single-phase,
230 V, 60 Hz, 3000W heater rating 30 A circuit
required
Warning!
The receptacle on the rear of the machine is
designed to accommodate ASKO washers
ONLY (rated 208–240 V.) To use this recep-
tacle, you must use the ready-fitted plug
supplied with the washing machine or an
equivalent.
ASKO washers rated 208–240 V have two
internal fuses of 15 A each.
Remove cover to access terminal
box. (Requires a 20-Torx screw-
driver.)
Note
In Canada, the dryer is delivered ready-fitted
with a four-prong plug intended for connection
to a single-phase supply.
