Atlantic Technology
®
PRE OUT
LEFT RIGHT
MAIN IN
PRE OUT
LEFT RIGHT
MAIN IN
PRE OUT
LEFT RIGHT
MAIN IN
PRE AMP
INTERNAL
EXTERNAL

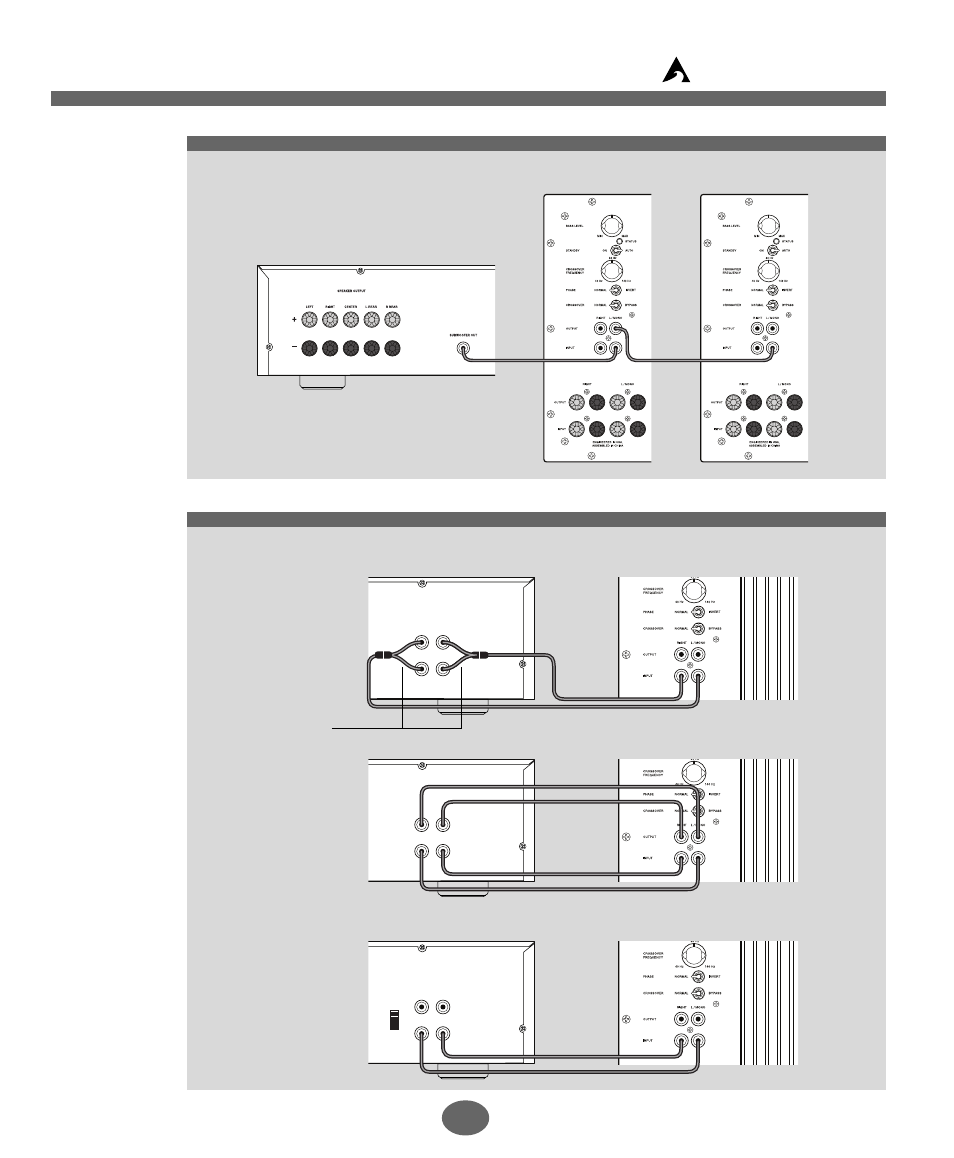

Example 1:
Subwoofer
Line Out/
Low Level In
When using this
connection
method, please
see the Important
Note on page 3.
Example 2:
Preamp Line
Out/Low
Level In for
1 Subwoofer
This arrangement
is for owners of
stereo receivers/
amplifiers with
Preamp outputs.
If your receiver/
amplifier uses
jumper links be-
tween the Pre-out
and Main In, then
you must remove
them and use
option 1 or 2. If
your receiver/
amplifier uses a
switch instead of
jumpers, then use
option 3.
Option 1
Option 3
Option 2
Y-adapters
Receiver/Amplifier/Processor Single Subwoofer Optional Second Subwoofer
Receiver/Amplifier/Processor Single Subwoofer
