Using your A90 integrated amplifier

Front panel controls

This section describes how to operate your amplifier.
If your amplifier has not been installed for you, you should
first read the section ‘Installation: A90 integrated amplifier’ on
page 4.

POWER (and power indicator light)

8

Switches the unit on and off. (You can also switch the amplifier
into standby mode with the remote control handset.)
The light indicates the status of the amplifier. A red light means
the amplifier is in standby mode (press the

POWER/STANDBY

button on the remote control, or the

POWER

button on the front

panel, to switch between standby and powered-up modes).
When you switch your amplifier on, the light glows amber for a
few seconds, during which time the speakers are disconnected.
The light changes to green when the amplifier is ready for use.
The light may flash if a fault has occurred – the fault type is
shown on the display. You should unplug the amplifier and leave
it for a few minutes before reconnecting. If the fault cannot be
cleared, unplug your amplifier and contact your Arcam dealer.

Source selectors

2

These buttons select the source connected to the
corresponding input. A light above the relevant button indicates
which input is currently selected and it will also usually be
shown on the display.

VCR

4

This input is similar to the other line level inputs on the amplifier
and may be used with a VCR or a second recording unit (e.g.
cassette deck).

TONE

6

Switches the tone circuits on and off, including settings for
individual sources. Note that the tone LED does not light unless
a tone setting has been made. (see page 8).

Control knob, SELECT and ENTER

3bobn

The control knob has two functions:

as a volume control, to adjust the output of loudspeakers

and headphones connected to the amplifier, and of the
pre-amp output (

PRE OUT)

.

when used in conjunction with the

SELECT

and

ENTER

buttons, to customise amplifier settings (see page 8).

Volume control settings

It is important to realise that the position of the volume control
is not an accurate indication of the power delivered to your
loudspeakers. The amplifier often delivers its full power long
before the volume control reaches its maximum position,
particularly when listening to heavily recorded compact discs.
However the amplifier also has to be capable of giving full
power output from much lower level sources, such as tuners
and cassette decks. Using these sources, the volume control
setting may be much higher before distortion (audible overload)
sets in. To compensate for this, the input levels of each source
may be individually adjusted to avoid accidental overload (see
page 8).

SP1 and SP2

7

These buttons allow you to select and deselect the main (

SP1

)

and secondary (

SP2

) set of speakers attached to your amplifier.

The light above each button glows if the corresponding
speakers are currently selected. (If both lights are out the
amplifier will appear not to work, as all speakers are switched
off!)

PHONES

1

This socket accepts headphones with an impedance rating
between 8Ω and 2kΩ, fitted with a 1/4-inch stereo jack plug.
If you wish to listen on headphones only, use the

SP1

and

SP2

buttons (if necessary) to mute the speakers. The headphone
socket is always active.

Remote control receiver

9

The remote control’s infrared receiver is positioned to the left
of the

RECORD

button. Ensure the receiver is in a clear line of

sight from the remote control to allow signals to be received.

MODE, UP and DOWN

blbm

These buttons are mainly for use with future optional modules,
however the

UP

and

DOWN

buttons are used with the basic A90

amplifier to move the cursor when customising the ‘Welcome
message’ (see page 8).

3

2

1

6

7

8

9 bk

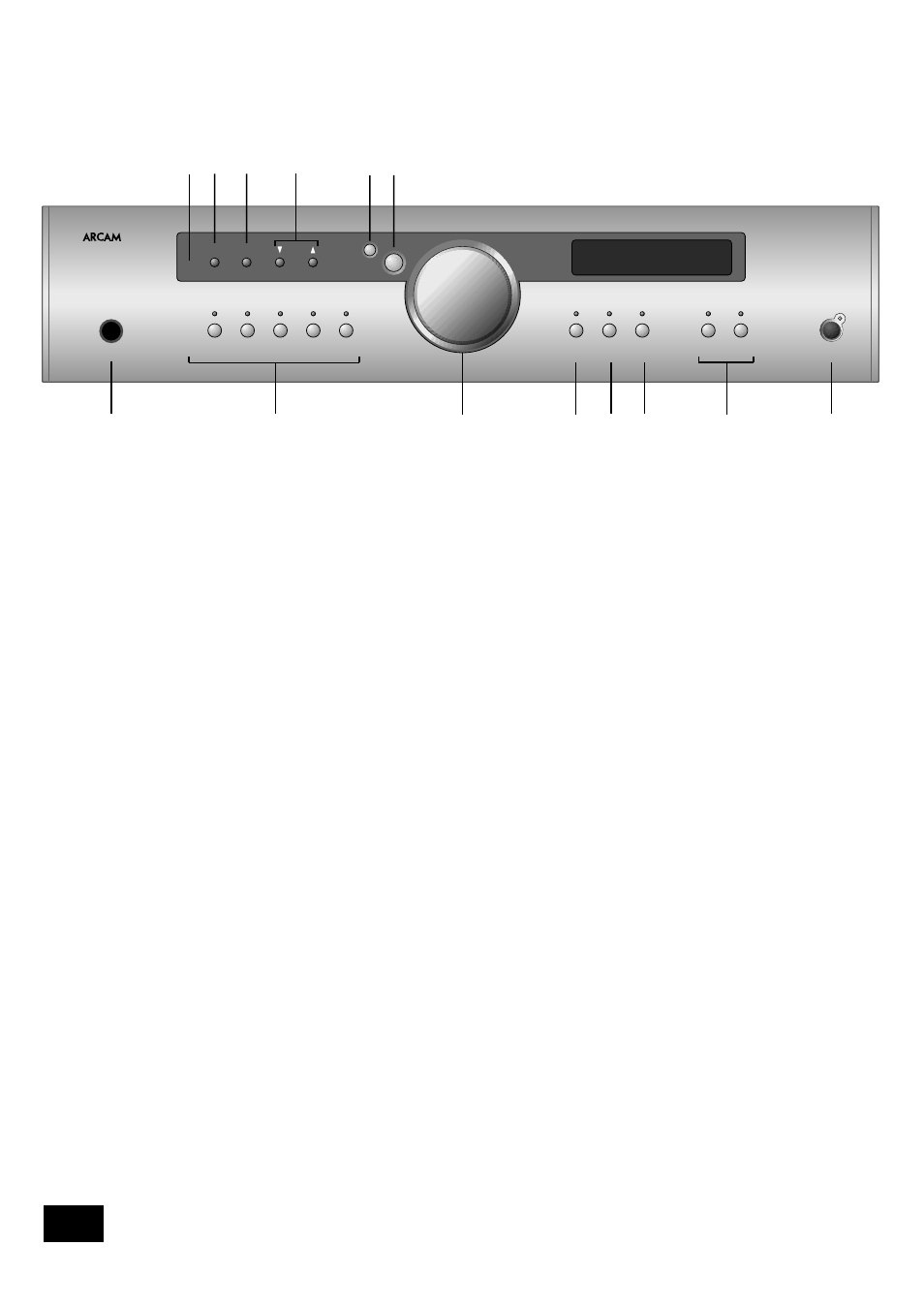

A90 INTEGRATED AMPLIFIER
