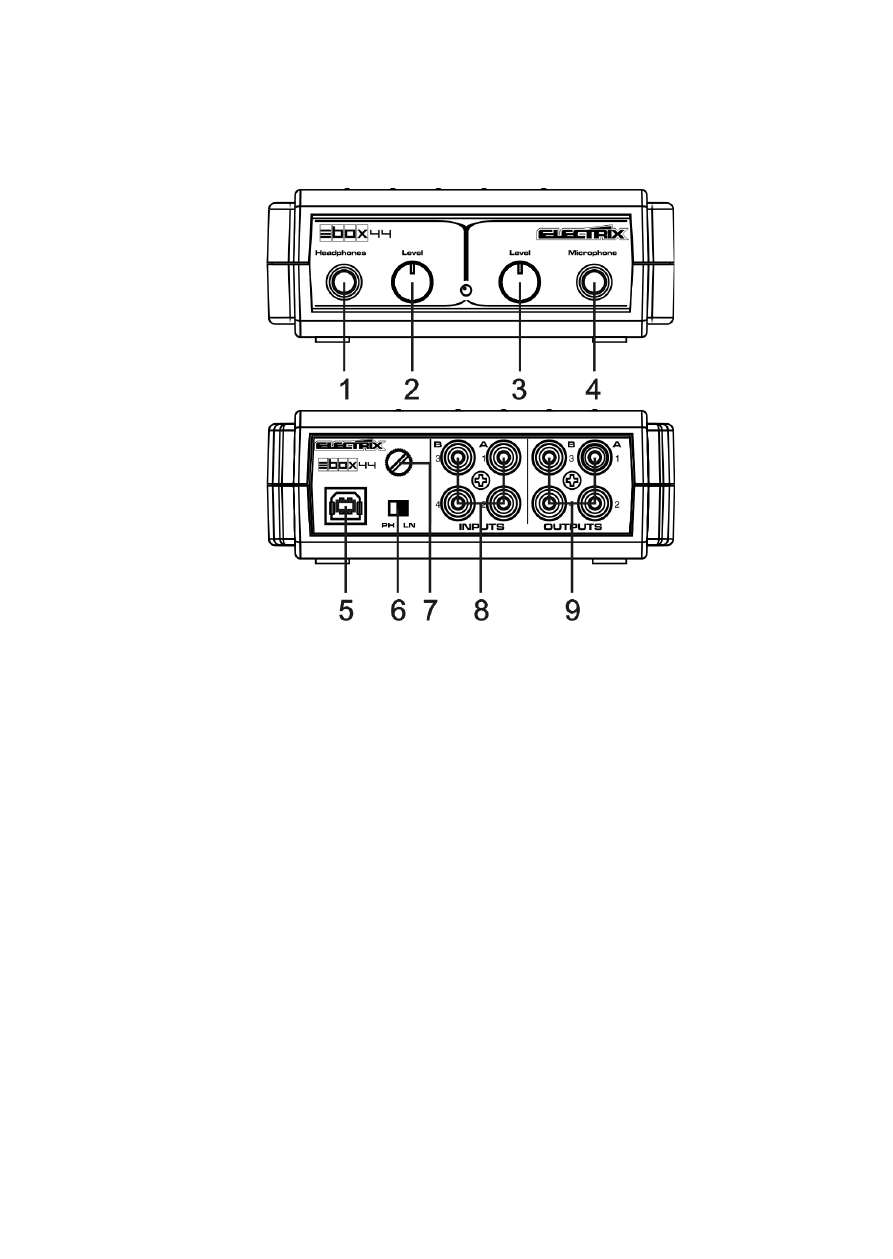

Controls
&
Connections
1. Headphone
Jack
–
Connect
your
headphones
to
this
jack
to
monitor
the
inputs
while
recording.
2.
Headphone
Volume
–
Controls
the
headphones
output
level.
3. Microphone
Volume
–
Controls
the
microphone
input
level.
4. Microphone
Input
–
Connect
your
microphone
to
this
jack
5. USB
port
–
Use
this
port
to
connect
the
interface
to
a
free
USB
port
on
your
computer
using
the
supplied
cable.
6. Phono
/
Line
switch
–
Set
this
switch
to
PH
when
connecting
turntables
to
inputs
1-­‐4.
Set
to
LN
when
using
any
other
input
devices.
7. Ground
Post
–
Connect
your
turntable’s
ground
cable
to
this
post.
8. Inputs
1-­‐4
–
Connect
your
input
devices
to
these
jacks.
All
line
and
phono
level
devices
are
supported.
9. Outputs
1-­‐4
–
Connect
these
jacks
to
your
mixer’s
inputs.
You
will
set
the
routing
using
your
software’s
routing
options.
