Electrix L140 User Manual
L140

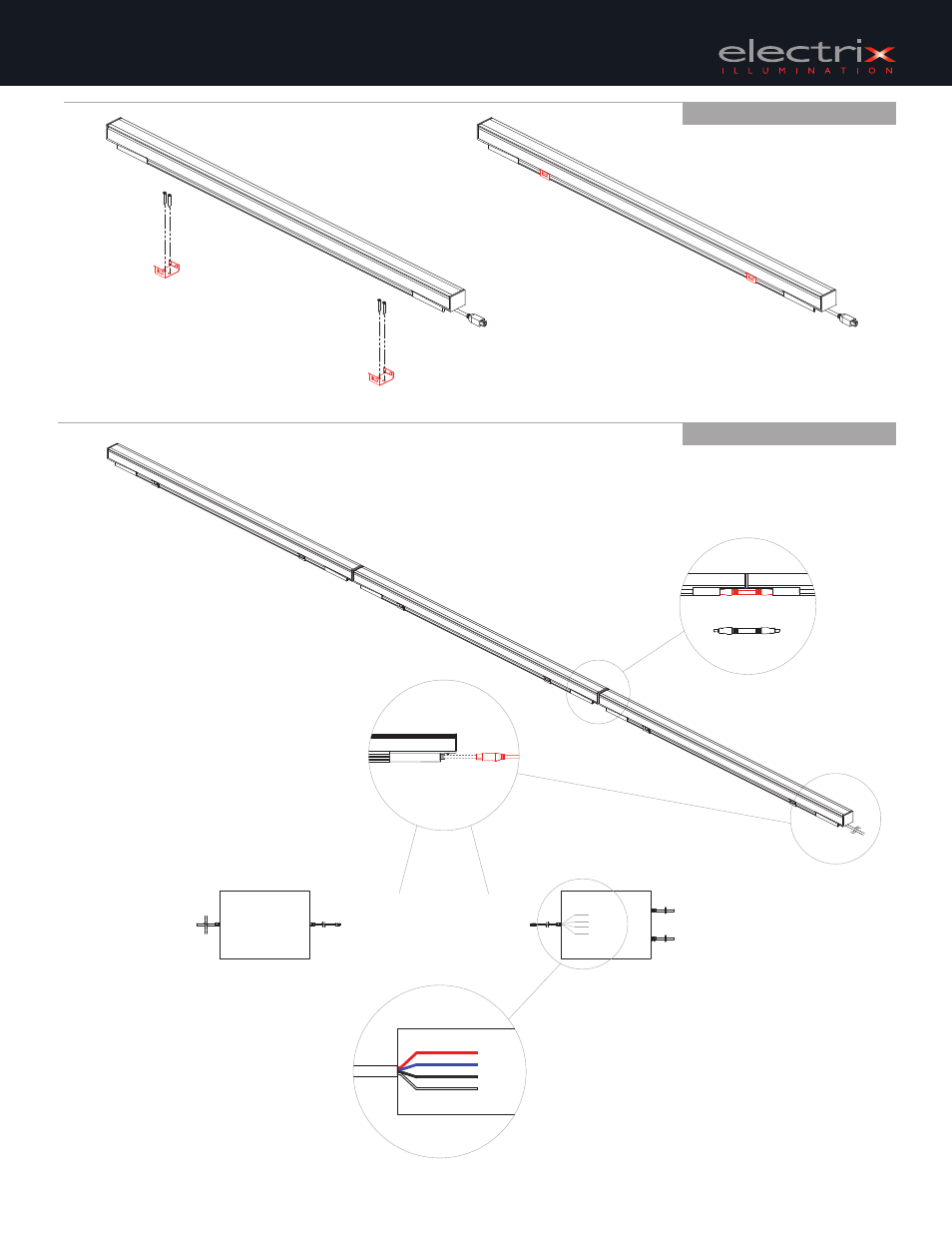

TYPICAL WIRE SCHEMATIC
TYPICAL MOUNTING DETAIL
Luminaires can be wired in series:
— up to 200" with standard power (5W p/ft)
— up to 100" with high power (10W p/ft)
Power supplies remotely mount up to 32' from luminaires
3
Typical Wire
Diagram
32' Feed cable out
to luminaires
32' Feed cable out
to luminaires
0 - 10V Dim control feed
Line voltage in 120 - 277V AC
Typical Dimming
Diagram 0 - 10V DC
Line Voltage in
120 - 277V AC
Primary Feed
Cable
Jumper Cable
L140
RED (+)
BLUE (-)
BLACK (-)
WHITE(+)
Internal Wiring
Detail
If EMI is a consideration, recommended remote driver distance is 15’
