2) existing aquastar 10" round frame installation, 5) existing waterway 10" round frame installation, 3) existing aquastar 8" round frame installation – AquaStar 10" Round Star Sumpless Suction Outlet Cover, Universal Adapter Kit and Mud Frame User Manual
Page 2: 7) existing paramount sdx frame installation, 1) new construction installation, 6) installation directly into pool finish
3
4
5
1
2
HOLE "B"
PLASTER
1. 10" universal adapter frame
2. 10" round suction outlet cover
3. 10-32 x 5/8" flat head phillips, 316 ss
4. #10 x 1" pan head phillips, 316 ss
5. 3/8" bushing

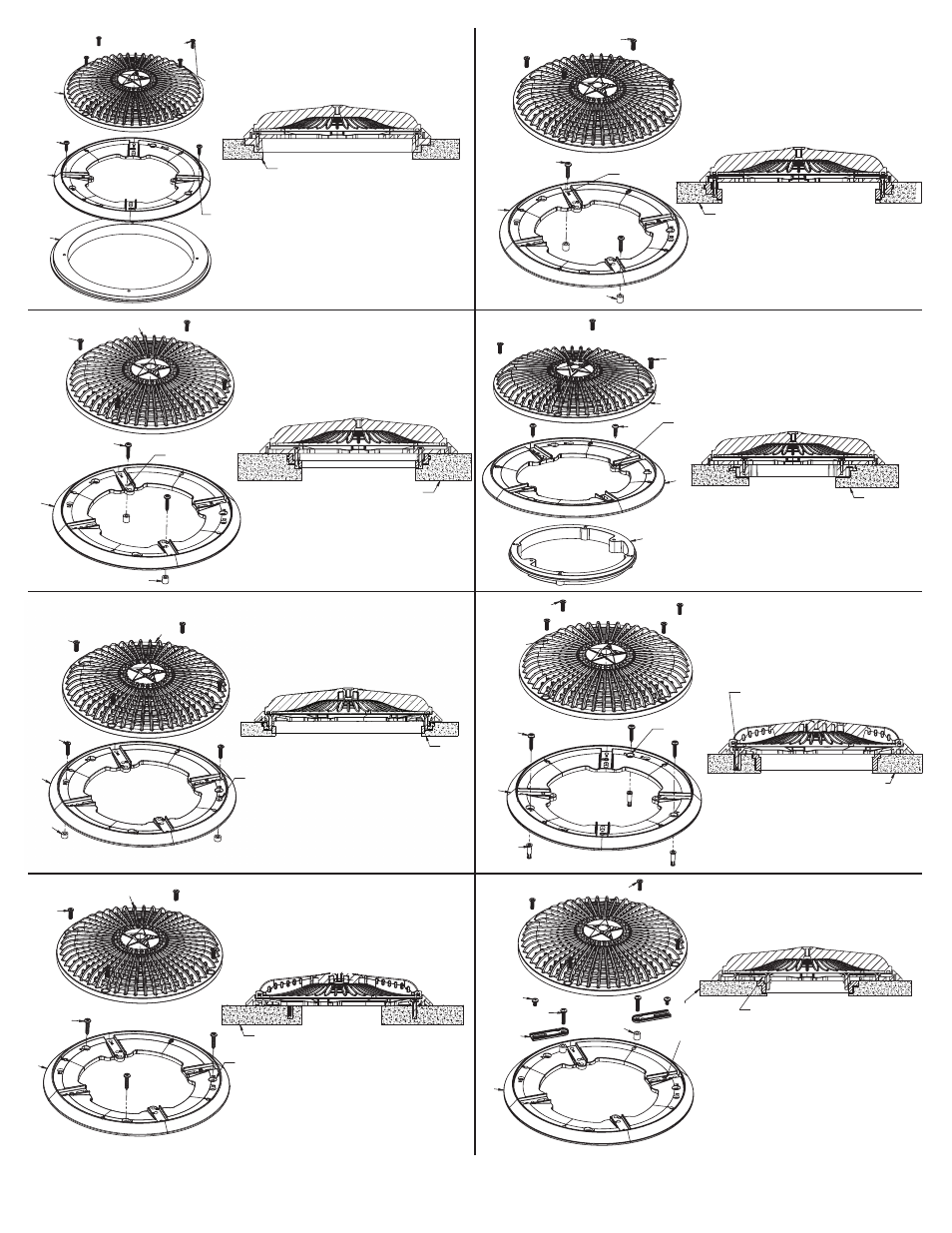

2) EXISTING AQUASTAR
10" ROUND FRAME
INSTALLATION
PLASTER
3
1
5
4
2
HOLE "E"
1. 10" universal adapter frame
2. 10" round suction outlet cover
3. 10-32 x 5/8" flat head phillips, 316 ss
4. 8-32 x 3/4" pan head phillips, 316 ss
5. 1/4" bushing
5) EXISTING WATERWAY
10" ROUND FRAME
INSTALLATION
7
4
2
1
6
5
3
HOLE "G"
1. 10" universal adapter frame
2. Long slide
3. Short slide
4. 10" round suction outlet cover
5. 10-32 x 5/8" flat head phillips, 316 ss
6. 10-32 x 5/16" pan head phillips, 316 ss
7. 10-24 x 7/8" pan head phillips, 316 ss
8. #8 x 3/4" pan head phillips, 316 ss
9. #8 x 1" pan head phillips, 316 ss
10. 3/8" bushing
PLASTER
ADJUST SLIDER TO FIT FRAME
8) 5 1/2" - 10" ROUND
UNIVERSAL INSTALLATION
W/ LONG OR SHORT SLIDERS
3
4
1
5
2
HOLE "C"
PLASTER
1. 10" universal adapter frame
2. 10" round suction outlet cover
3. 10-32 x 5/8" flat head phillips, 316 ss
4. #10 x 1" pan head phillips, 316 ss
5. 3/8" bushing
3) EXISTING AQUASTAR
8" ROUND FRAME
INSTALLATION
2
3
5
4
1
HOLE "D"
1. 10" universal adapter frame
2. 10-32 x 5/8" flat head phillips, 316 ss
3. 10" round suction outlet cover
4. 8" super low profile round frame
5. #10 x 3/4" pan head phillips, 316 ss
PLASTER
4) EXISTING AQUASTAR
8" ROUND SUPER LOW
PROFILE FRAME
INSTALLATION
1. 10" universal adapter frame
2. 10" round suction outlet cover
3. 10-32 x 5/8" flat head phillips, 316 ss
4. #10 x 1" pan head phillips, 316 ss
3
2
4
1
HOLE "F"
PLASTER
7) EXISTING PARAMOUNT
SDX FRAME
INSTALLATION
