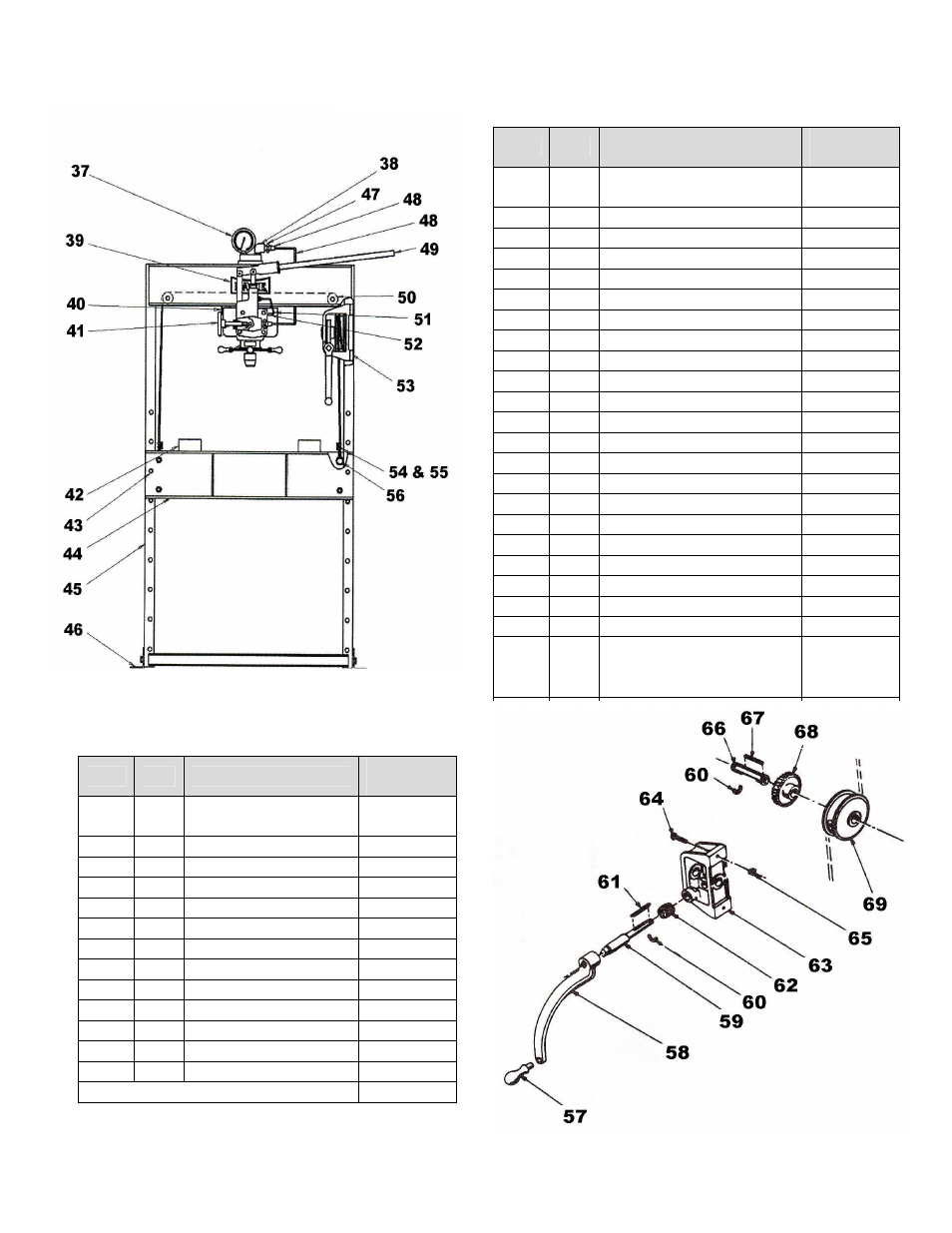

TABLE HOIST
Item Qty
Description
Part
No.
57
58
1
Hand Crank
Assembly
1000
59
1
Worm Shaft
384
60
2
Retaining Ring
27437
61
1
Worm Key
47364
62
1
Worm
385
63
1
Hoist Frame
725
64
1
Hex Cap Screw
43335
65
1
Hex Nut
43912
66
1
Drum Shaft
724
67
1
Drum Key
737
68
1
Worm Gear
736
69
1
Cable Drum
723
70
Retaining Ring
43992
Complete Table Hoist Assembly 700112-S
Item Qty
Description
Part
No.
37
1
1
Gauge
Bushing
71265
81384
38
1
½” Tube Elbow
1252
39
1
Name Plate
81002
40
1
Air Vent Tube
632
41
1
Hand Wheel
10631
42
2
Table Plates
966
43
4
Table Pins
981
44
2
Table Channel
701020
45
1
Frame
700134
46
2
Base Angles
978
47
2
Tube Fittings
1251
48
1
Tube Assembly
700133
49
1
Handle
218
50
2
Pulley
602
2
Pulley bolt
43341
2
Pulley lock washer
43645
2
Pulley nut
43912
51
9” Tube, ¼” Plastic
67761
52
2
Fitting, Tube, Poly-Tite
71413
53
2
Spacer
997
54
1
Cable
988
55
4
Cable Clamps
991
56
4
Table Spacer Assembly
one each of washer,
bolt, spacer per part #
716691
N/A
4
Channel Washers
25H138P
N/A
4
Wkhd mounting bolts
43348
FRAME ASSEMBLY
