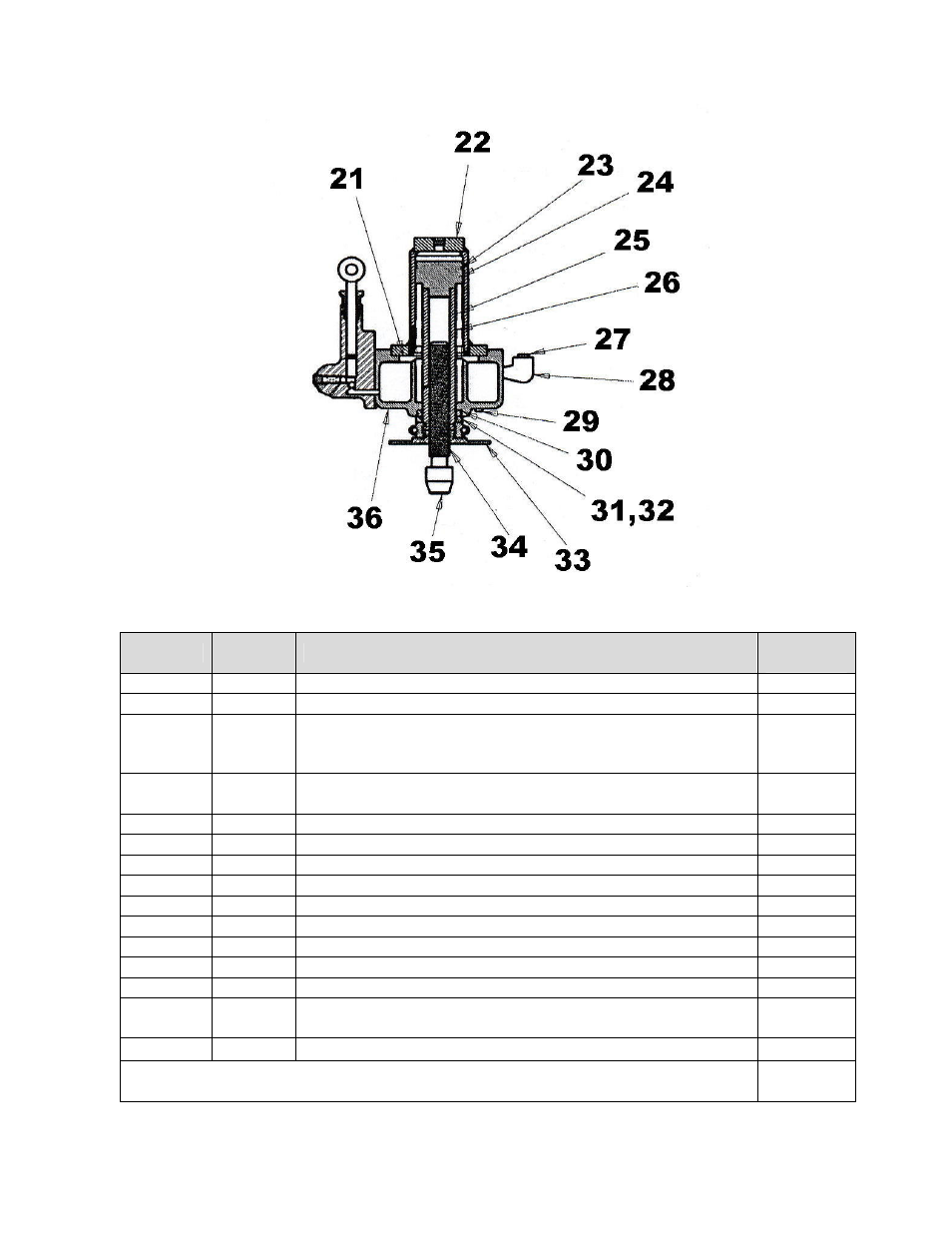

WORKHEAD ASSEMBLY
Item
Qty
Description
Part
No.
21
1
Cylinder Gasket
998
22
1
Cylinder
960
23
1
Packing Ring (Serial No. > 192522)
17976
1
Piston Leather (Serial No. < 192523)
(Used with supporting ring no. 967)
969
24 & 25
1
Piston Assembly (Serial No. < 192522)
701800
1
Piston Assembly (Serial No. > 192523)
716221
26
1
Ram Spring
968
27
1
1/2” Pipe Plug
596
28
1
1/2” Street Elbow
590
29
1
1/8” Pipe Plug
589
30
1
Oil Seal
999
31
1
Piston Bumper
996
32
2
Clamp Ring
982M
33
1
Screw Adjusting Wheel
716518
34
1
Screw
971
35
1
Screw Nose
*Thumb screw if needed 43618
986
36
1
Reservoir
963
Repair Kit – Cylinder & Hand Pump Assembly
(Includes – Items 5,8,17,20,21,23,30,31)
701290
