70H & 75H Press 8/02 5

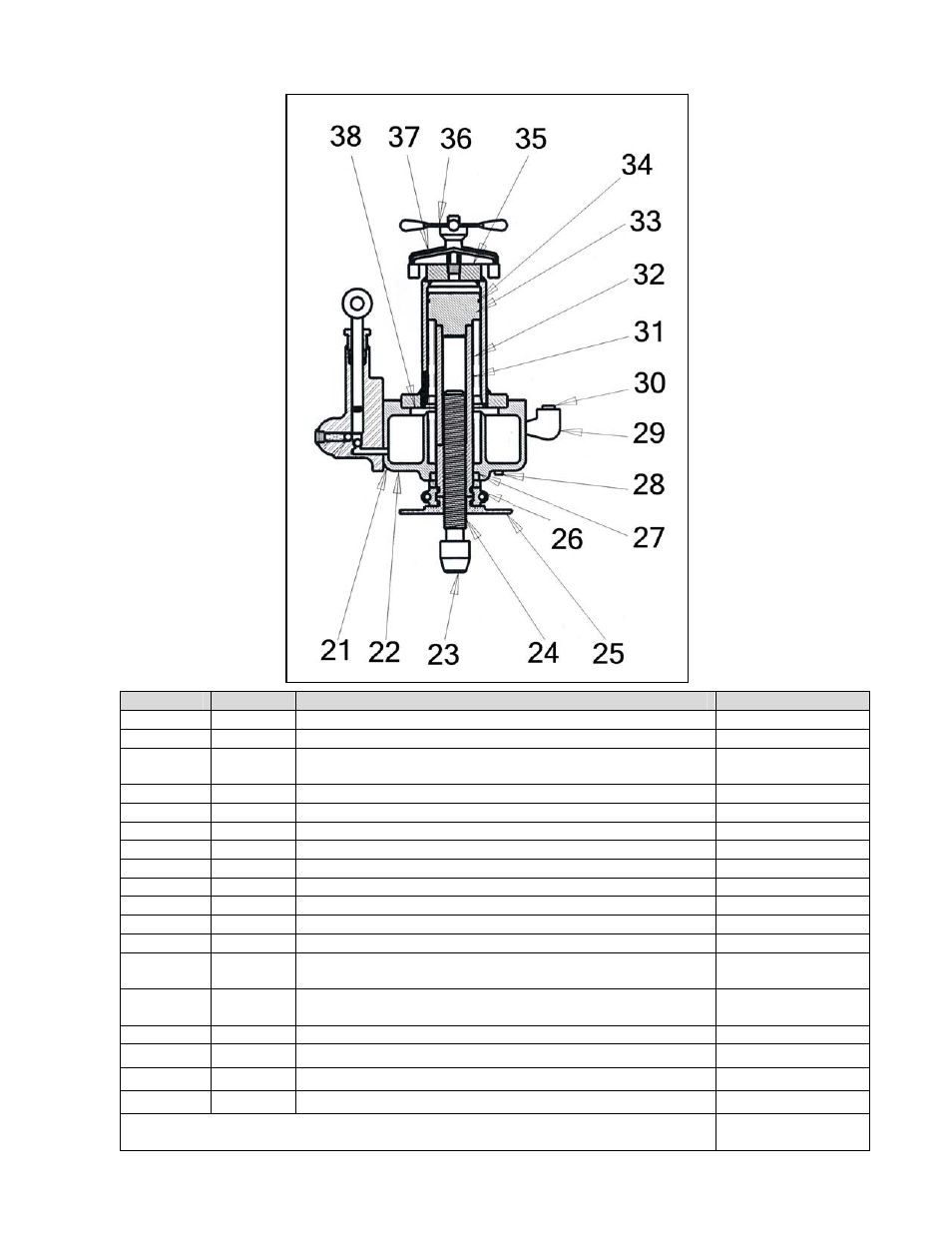

WORKHEAD ASSEMBLY
Item Qty Description Part No.
21 1 Pump Gasket 591
22 1 Reservoir 695
23 1 Screw Nose – Flat 572
1 Screw Nose – V-ram nose 344
24 1 Screw 559
25 1 Handwheel 716520
26A 1 Clamp Ring Assembly 718
26B 1 Piston Bumper 738
27 1 Oil Seal 1477
28 1 Pipe Plug, 1/8” NPTF 589
29 1 Elbow, Pipe Street1/2” 590
30 1 Pipe Plug, 1/2" NPTF 596
31 1 Spring, Ram 705
32 & 33 1 Piston Assembly (Serial No. < 192522) 701802
Piston Assembly (Serial No. > 192523) 716223
34 1 Piston Leather (Serial No. < 192522) 706
Packing Ring (Serial No. > 192523) 17942
35 1 Cylinder – 75 Ton 693
36 1 Handwheel 716521
37 1 Yoke 732
38 1 Gasket, Cylinder 1478
Repair Kit – Cylinder & Hand Pump Assembly
(Includes – Items 5,8,17,20,26B,27,34,38)
701292
