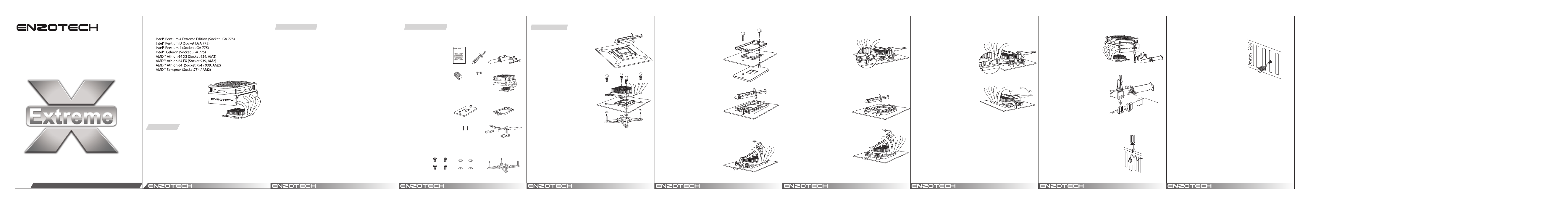

EnzoTech Extreme-X REV.A - Manual

Extreme-X COOLER SUPPORT
1.Dimension: 148*148*118mm
2.Total weight : 835g
3.Fan: Fan AD1212UB-A73GL
Dimension 120*120*25mm
Speed 2500R.P.M
Noise 43.3 dB-A
Air Flow 98.6 CFM
Voltage 12VDC . 0.5A
Connector Molex 2695- 3 wire
Bearing 2 ball
UL ,CUL , TUE and CE approval
4.Heat sink Forge C1100 copper base , mirror polish
Aluminum pin fin heat sink
4 piece of 8Ø pipes
Aluminum radian fin
5.Thermal grease Arctic Sliver 5
6.Speed controller Speed 1200R.P.M 1800R.P.M 2500R.P.M
Noise 25.5 dB-A 31.5 dB-A 38.5 dB-A
Air Flow 35.8 CFM 53.6 CFM 82.67 CFM
1.Features
(1) Compatible with all single and dual core CPUs for
Intel Socket 775 and AMD Sockets K8/AM2/754/939/940
(2) The base of the Heat Sink is machined to 0.0003 per inch run-out
which optimizes surface contact and maximizes thermal conductivity
perforrmance.
(3) Four 8mm heat pipes guarantee the CPU will always run smooth and
at optimum effciency.
(4) The large 120mm fan provides extreme colume of airflow which will
keep your Northbridge chipset cool at the same time
(5) Arctic Silver 5 Thermal Grease and Adjustable fan speed control include.
3.Components
1)Common Components
a)One(1) User’s Manual
b)One(1) AS5 Thermal Grease
c)One(1) Fan controller
d)One(1) Knob
e)Two(2) Bolts for fixing Fan
Controller
f)One(1) Extreme-X Cooler
2)Components for Socket 754/939/940/AM2
g)One(1) Backplate for Socket 754/939
h)One(1) Retention Module
i)Two(2) Clip Bolts
j)One(1) Clip Lever
3)Components for Intel Pentium 4 Socket 775
k)Four(4) Innerspring Screws
l)Four(4) Plastic Washers
m)One(1) Backplate for Socket 775
g. h.
i. j.
l. . m.
e.
. c
d.
b.
f.
k.
(2)AMD Socket k8/754/939
Remove the original Clip support for AMD “Socket k8/754/939”
from the Motherboard.The clip Enzotech provides is thinner at the
edges.Users of AMD “Socket k8/754/939” MUST CHANGE THIS
CLIP. The CPU cannot make contact with the top of the cooler
using the original clip!
1
2
3. Hold attachment lever upright, then press
down (1) and move it outwards (2) until
the clip slots fit on to the Retention Module
lugs.
1
2
1
4. Make sure slots of retaining clip are firmly
attached to the retention module lugs on
both sides, then fasten the lever in place as
shown.
1 2 (3)AMD Socket AM2/940: 4. Align the slots in the retaining clip with the
lugs on the retention module (1). Then
rotate cooler down until it sits horizontally
on the CPU (2).
2. Clean the contact surfaces of the CPU
and heatsink. Then apply “Arctic Silver 5”
on the contact surface of the CPU and
the heatsink base.
(1)Intel Pentium 4 -775
1. Clean the contact surfaces of the CPU and
heatsink. Then apply “Arctic Silver 5” on the
contact surface of the CPU and the heatsink
base.
.
2. Align back plate for “Socket 775”
on back side of the motherboard.
3. Place Extreme-X on the center of the
CPU. There are four holes on the
base to put the metal rods through.
4. Place innerspring screws on the
four metal rods and fasten down
until all sides are level.
3. Hold the attachment lever upright, then
press down (1) and move it outwards (2) until
the clip slots fit onto the Retention Module
lugs.
1
2
1
2
1
a.
2. Plug other end of fan speed connector into
the 3-pin CPU fan connector on the
motherboard
3. Install the bracket of the fan-speed
controller in an open PCI slot.
4. Push the knob in place
Note:
Some mainboards will not boot if rotation of the CPU fan is below a
certain number of RPM’s. If this happens, try changing the BIOS
setting to “Silent Mode”.For more information on updating BIOS,
please refer to your mainboard installation manual or the
manufacturer's web site.
1. Align the Retention Module and the back-plate
for AMD “Socket k8/754/939” with the
mounting holes on the motherboard and
fasten them together using the Retention
Module mounting bolts.
1
Precautions:
1.Excessive force exerted on fan assy during installation can
damage the fan,resulting in damage to the system.
2.Avoid inserting any objects into the fan while it is in operation.
3.Check the parts list and condition of product before installation.
If any problem is found, contact place of purchase to obtain
replacement.
4.Do not ingest or make oral contact with the Thermal Grease.
If ingested, get medical attention immediately.
5.Enzotech is not responsible for any damages due to external
causes, including but not limited to, improper use, problems with
electrical power, accidents , neglect, alteration, repair, improper
installation, or improper testing.
2 Align the slots in the retaining clip with the
lugs on the retention module (1), then rotate
cooler down until it sits horizontally on the
CPU (2).
1. Clean the contact surfaces of the CPU
and heatsink. Then apply “Arctic Silver 5”
on the contact surface of the CPU and
the heatsink base.
1. Plug adjustable fan speed connector into
the 3-pin connector of fan as shown in
Figure 1.
(4)FAN Speed Controller
1 2 3 4 5 6 7 8 9
4.Installation 2.Specifications
*Power Connection
Please refer to Fan Speed Controller Installation on page ( 8 )
*Power Connection
Please refer to Fan Speed Controller Installation on page ( 8 )
*Power Connection
Please refer to Fan Speed Controller Installation on page ( 8 )
*Please read this manual thoroughly before installation
User’s Manual
(English Version)
http:// www.enzotechusa.com http://www.enzotechnology.com
*Please read this manual thoroughly before installation
User’s Manual (English Version)
http:// www.enzotechusa.com http://www.enzotechnology.com
