285CUS-LE

Specification

1.Dimension(L x W x H): 245 x 88 x 13 mm

2.Total weight: 670 g

Components

(A) 4 Screws

(B) 4 Springs

(D) 1 Mounting Bracke

(E) 1 Heat Sink

(G) 8 Screw with spring

(H) 1 Backplate

( I) 1 T-Putty 502 Thermal Tape

Installation Instruction

A.Please first remove the heat sink from the VGA Card, and clean up all residual glue on the chip.

B.Detach the protector sheet from the thermal pad on (E), and put (E) on the VGA Card while

aligning the holes on the VGA Card, then fix it with (G) to hand tight.

C.Assemble (C) and (D), put (A) screws through (B) spring and install (D) with (A) and (H),

screw to hand tight.

D.Assemble (G) to (C), tighten (G) and ensure no leakage.

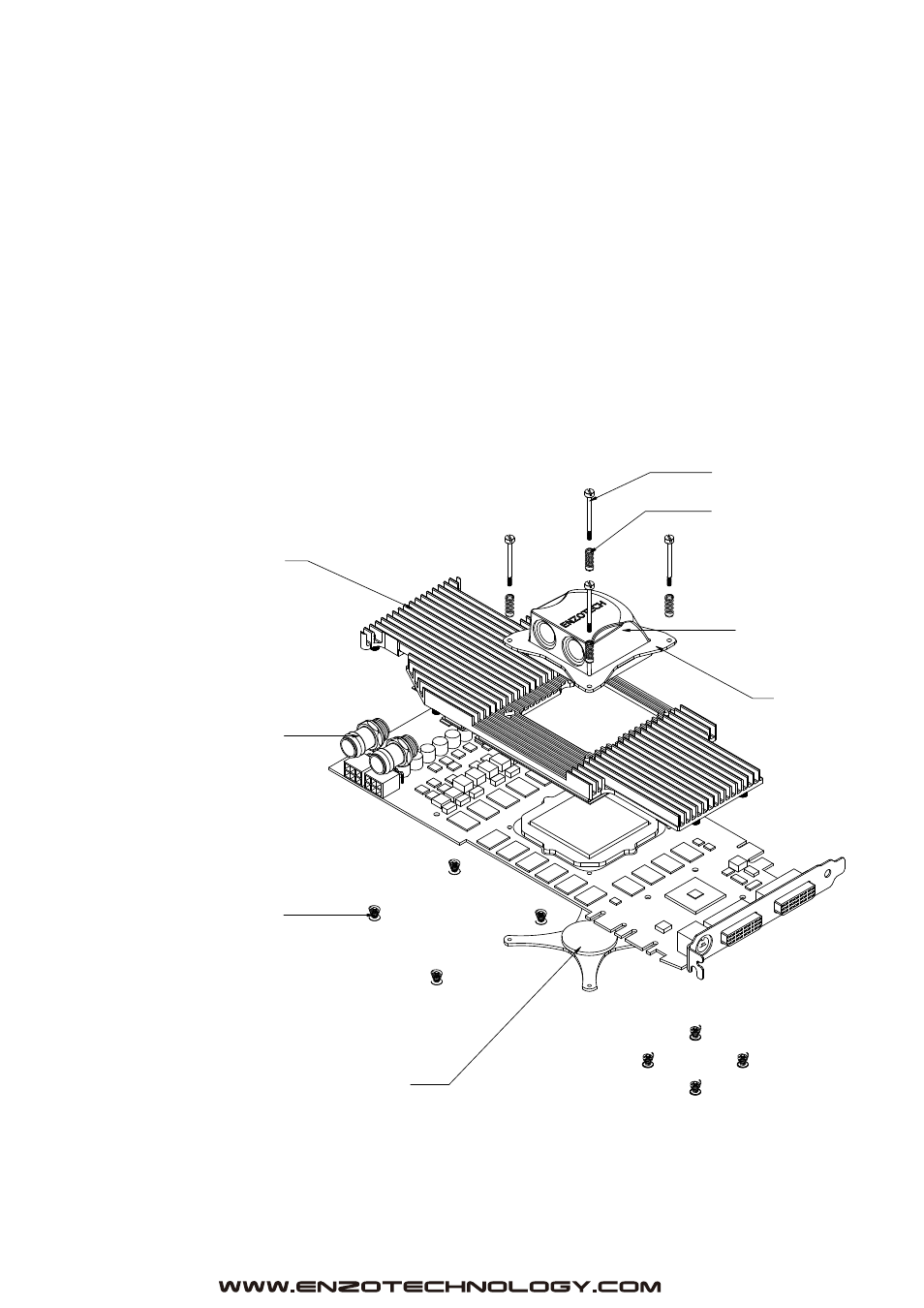

(A)Screw

(B)Spring

(C)Water Block (original)

(D)Mounting Bracket

(E)heat sink

(F)G1/2" HI-Flow Host Barbs (original)

(H)Backplate

(G)Screw with spring
