Triton XML Utilities - Manual (Page 5)

Page 2

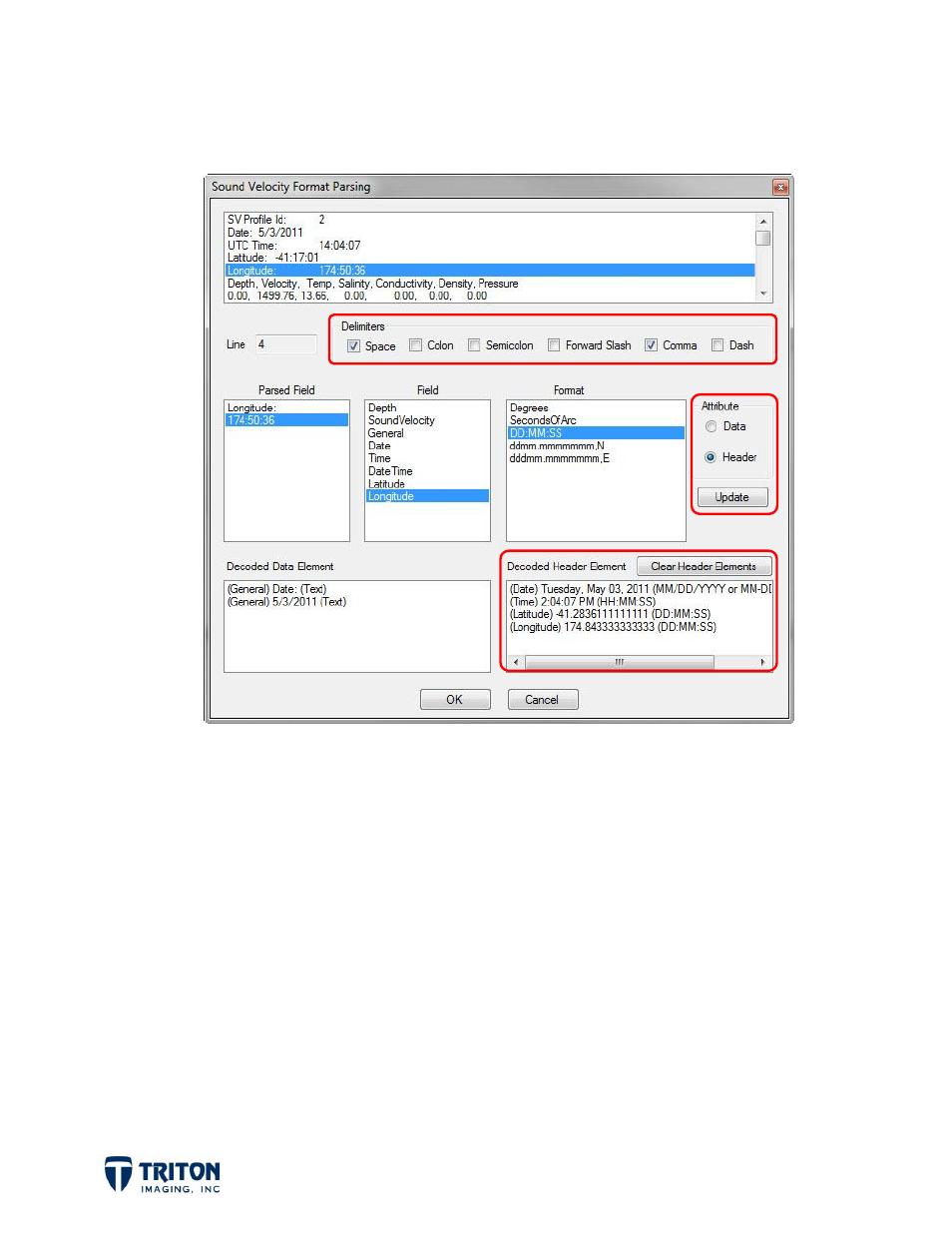

This will open a file browser to locate the raw SVP file. Once the file is selected, the
Sound Velocity Format Parsing dialog will launch as shown below:
The top section of the parsing dialog is a read-out of the raw data file. This read-out
shows that text and values are separated by spaces and commas in this file. Below the
data read-out the
Delimiters can be set to separate the values in the file. For this
example both the Space and the Comma checkboxes are selected.
Some data files include a header section with information about the location of the profile
(time, latitude/longitude, cast ID, etc.). To parse the values in the header section:
1. select a line in the file display field at the top
2. in the
Parsed Field section on the left select the value
3. indicate what type of value it is in the Field section
4. select the correct format of the value in the Format section
5. make sure the Attribute type is set to Header
6. then select Update to apply the settings
