Installing the Epson printer interface
Installing the Epson printer interface
Vi-POSIF-S
EPSON TM T 88 serial
Before installing the printer interface, review the site survey and identify the registers that will
be monitored, then refer to the printer interface installation diagram on this page before
following the instructions.
Epson TM T88 serial INTERFACE
Install Kit
Item
Part Number
Description
Quantity
1
IF-0829-063
Epson TM T88 Interface
1
2
500114
Interposer cable
1
or 500227
or 500260
3
580003
Ferrite Sleeve
2
4
IDB-1556-01
INSTALL MANUAL
1
Switch Settings
SHEET 2-9

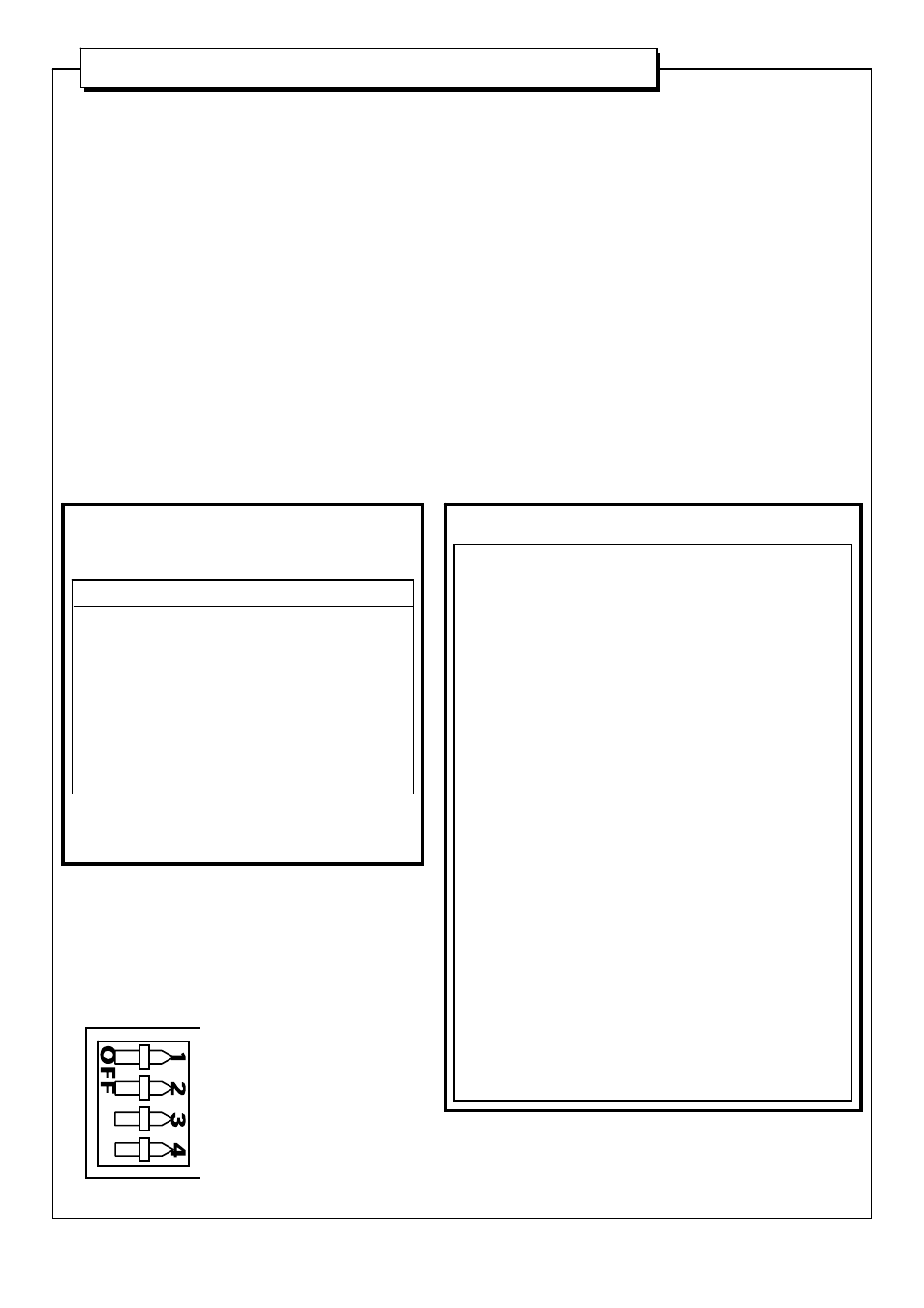

SW1 settings
software (SW-2393-01) rev D0
Default:
switches 1 and 2 OFF
switches 3 and 4 ON
switch(es)
state
function
1
ON
raw data
2
ON
test mode
3
4
output baud rate
ON
ON
9600, N, 8, 1
ON
OFF
4800, N, 8, 1
OFF
ON
2400, N, 8, 1
OFF
OFF
1200, N, 8, 1
SW2 settings
input baud rate
3
2
1
baud rate
ON
ON
ON
300
ON
ON
OFF
600
ON
OFF
ON
1200
ON
OFF
OFF
2400
OFF
ON
ON
4800
OFF
ON
OFF
9600
OFF
OFF
ON
19200
OFF
OFF
OFF
38400
input data bits
5
4
data bits
ON
ON
5
ON
OFF
6
OFF
ON
7
OFF
OFF
8
input parity
7
6
parity
ON
ON
none
ON
OFF
even
OFF
ON
odd
OFF
OFF
none
switch 8
8
function
X
unused
set Vi-POSCON input baud rate to match
Even if a SW2 default is indicated, the printer could be
configured differently than shown. In this case, SW2
settings may need to be determined experimentally.
default settings shown in bold
